Summary of Contents for MBRP Off Camber Fabrications 130716

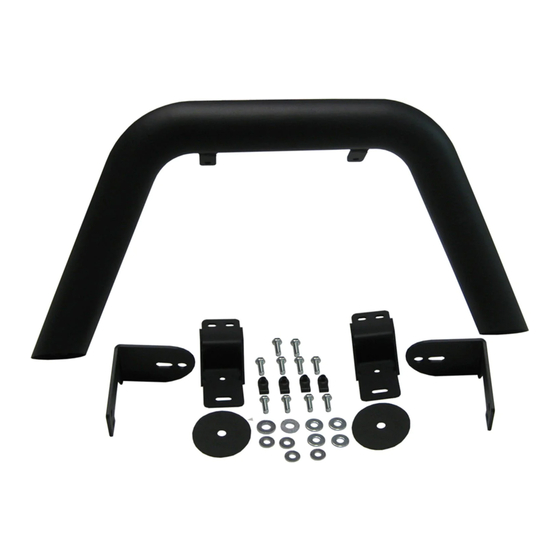

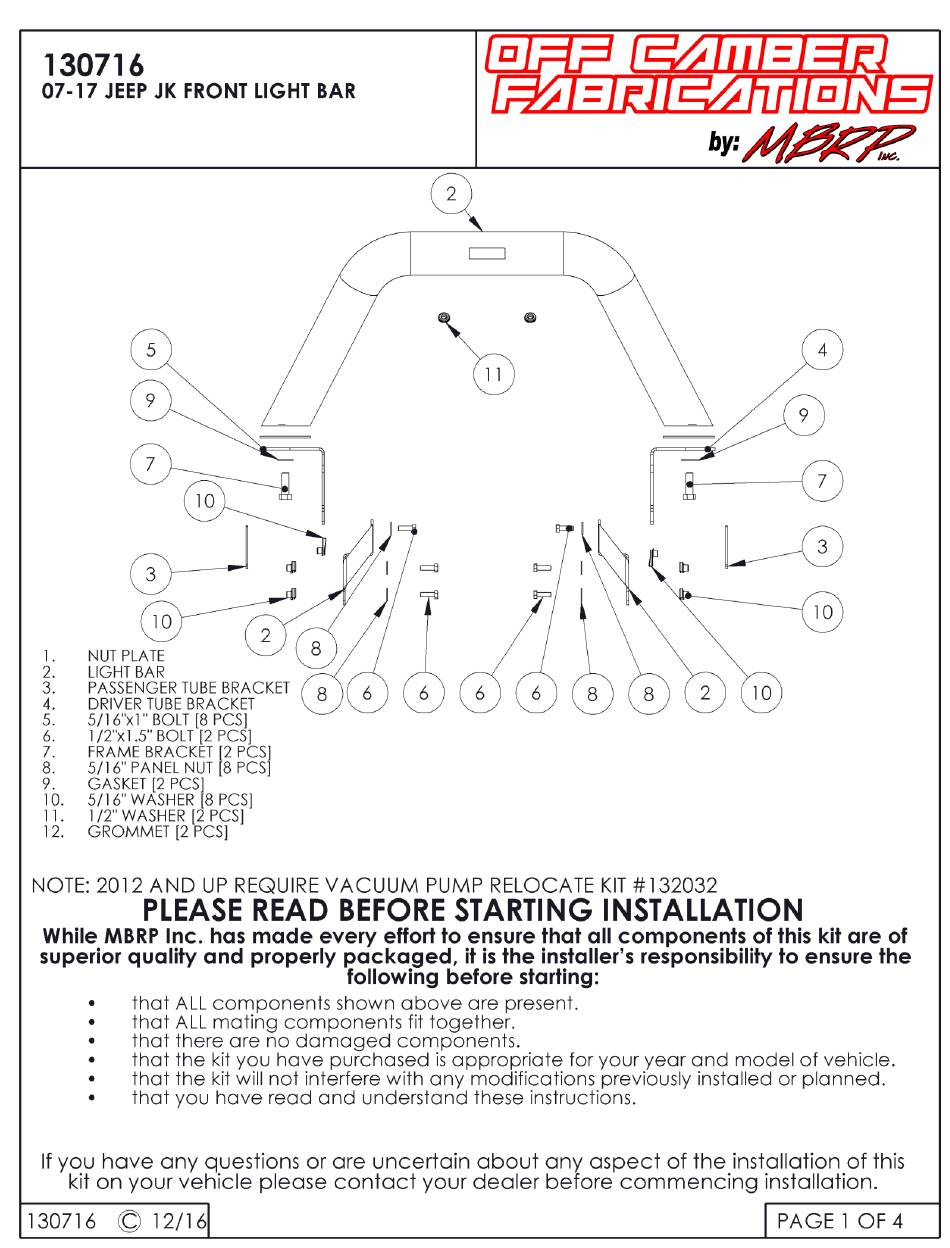

- Page 2 2007-2017 Jeep JK Light Bar Kit Figure 1 NOTE: 2012+ models require installation of a Vacuum Pump Relocate Kit #132032 1. Remove the factory splash guard by removing the push rivets. All rivets are reusable so be careful removing them. Refer to Figure 1. 2.
- Page 3 5. Install the Driver Side and Passenger Side Frame Brackets onto the frame horns by first sliding the 5/16” Panel Nuts onto the Nut Plates. Insert the plates into the pockets on either side of the frame, the brackets are installed on the inside of the frame rails. Using the supplied 5/16” Figure 6 hardware, attach each Frame Bracket by bolting through the factory holes into the Nut Plates.
- Page 4 Brackets as required. Tighten all fasteners, including the 2 ½” bolts securing the Mounting Brackets to the Tube by using an open end wrench. Figure 12 Figure 13 MBRP Inc. Congratulations! You are finished. Thank you for purchasing an Product. 130716© 12/16 Page 4 of 4...
