Questions, problems, missing parts with this product? Please contact us
at www.numarkcustomerservice.com

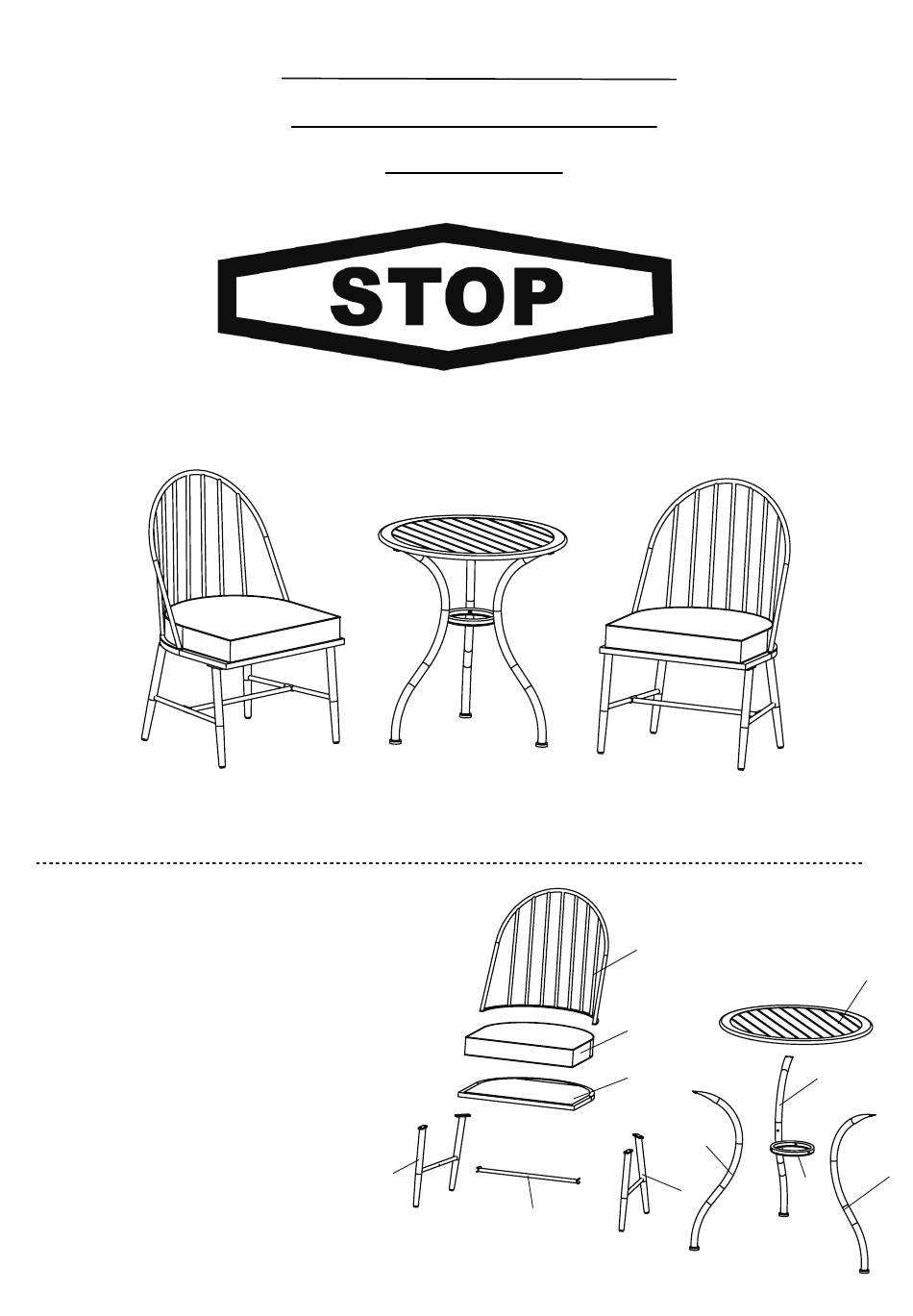

Parts
A
Back
B
Seat
C
Right Leg
D
Left Leg
E
Chair Connected Bar
F
Seat Cushion
G
Table Top (6 bolts and
6 metal washers attached)
H
Table Leg (1 bolt and 1
metal washer attached for each)
I
Table Center Ring
Rochelle 3 piece bistro set
SC-K-933/3
2
2
2
2
2
2
1
3
C
1
1
A
F
B
H
D
E
G
H
I
H
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Numark Rochelle SC-K-933/3
Summary of Contents for Numark Rochelle SC-K-933/3
- Page 1 Rochelle 3 piece bistro set ASSEMBLY INSTRUCTIONS SC-K-933/3 Questions, problems, missing parts with this product? Please contact us at www.numarkcustomerservice.com Parts Back Seat Right Leg Left Leg Chair Connected Bar Seat Cushion Table Top (6 bolts and 6 metal washers attached) Table Leg (1 bolt and 1 metal washer attached for each) Table Center Ring...
- Page 2 Hardware Jb x 1 spare Jc x 16 + 1 spare Ja x 4 Jd x 6 Medium bolt Short bolt Screw Long bolt Je x 22 Jf x 1 Allen wrench Metal washer Assembly instruction Jc x 8 Medium bolt Je x 8 Metal washer Do not tighten completely.
- Page 3 Assembly instruction Jd x 3 Long bolt Je x 3 Metal washer Do not tighten completely. Repeat procedure for the other holes. Securely tighten all bolts. Repeat procedure for the other chair. Jb x 6 Short bolt (remove from the table top) Je x 6 Metal washer (remove from the table top)
- Page 4 Assembly instruction Jc x 3 Medium bolt (remove from the table leg) Je x 3 Metal washer (remove from the table leg) Do not tighten completely. Repeat procedure for the other two legs. Turn over the table. Securely tighten all bolts. Your bistro set is now ready for use.
