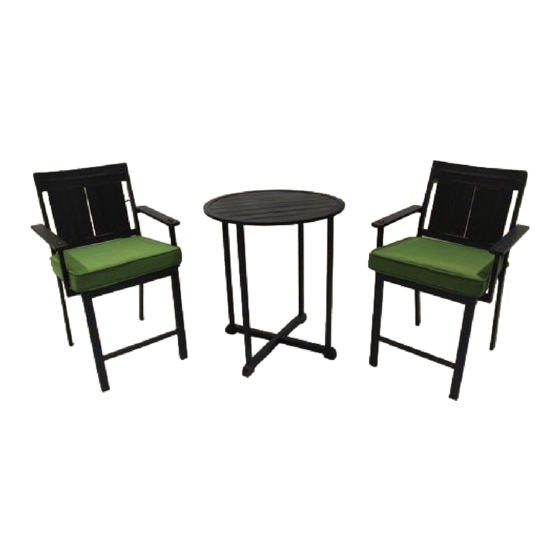

Sea Breeze 3 piece cushion balcony set
Style #: SC-K-217Y/3
Lot Number: _______________
Date Purchased: ____________
THIS SET-UP GUIDE CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND
KEEP FOR FUTURE REFERENCE.
DO NOT RETURN THE PRODUCT TO THE STORE; individual stores do not stock
parts. If a part is missing or damaged, call our toll-free customer service line. We will
gladly ship your replacement parts FREE of charge.
NEED HELP? For help with assembly or if you are missing a part, please visit at www.numarkcustomerservice.com or call 1-800-457-
4652 (9:00 a.m. to 5:00 p.m. EST, Monday - Friday). For returns, visit www.walmart.com and follow the steps to return a product.
Page 1 of 10
Advertisement
Related Manuals for Numark Sea Breeze 3 piece cushion balcony set SC-K-217Y 3
Summary of Contents for Numark Sea Breeze 3 piece cushion balcony set SC-K-217Y 3
- Page 1 Sea Breeze 3 piece cushion balcony set Style #: SC-K-217Y/3 Lot Number: _______________ Date Purchased: ____________ THIS SET-UP GUIDE CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. DO NOT RETURN THE PRODUCT TO THE STORE; individual stores do not stock parts.
- Page 2 Parts • Before you start, carefully unpack and identify each component and piece of hardware to make sure you have everything you need for assembly. • Assemble product on a soft, non-abrasive surface such as a rug, tarp or cardboard to avoid damaging the item.
- Page 3 Part Description Quantity Table Leg Table Leg Tabletop (Attched with 4 bolts and washers ) ACCESSERIES Description Part Quantity M6x15L Bolt 24+1 spare M6x30L Bolt M6x50L Bolt M6 Metal Washer L-Shaped Plate Allen Wrench NEED HELP? For help with assembly or if you are missing a part, please visit at www.numarkcustomerservice.com or call 1-800-457- 4652 (9:00 a.m.
- Page 4 Step1 I1x 4 M6x15L Bolt I4x 4 M6 Metal Washer Please don’t tighten the bolts fully at this step. Repeat procedure for the other side. Step2 I1 x 4 M6x15L Bolt I4 x 4 M6 Metal Washer Please don’t tighten the bolts fully at this step. Repeat procedure for the other side.
- Page 5 Step3 I2 x 2 M6x30L Bolt NOTE: The left arm marks ‘Left’, and the right arm marks ‘Right’. Please don’t tighten the bolts fully at this step. Repeat procedure for the other arm. Step4 I3 x 2 M6x50L Bolt I4 x 2 M6 Metal Washer Please don’t tighten the bolts fully at this step.
- Page 6 Step5 I1 x 4 M6x15L Bolt I4 x 4 M6 Metal Washer I5 x 2 L-Shaped Plate Please don’t tighten the bolts fully at this step. Repeat procedure for the other side. Step6 Securely tighten all bolts and turn over the chair , put the cushion on the chair. Repeat procedure for the other chair.
- Page 7 Step7 I2 x 1 M6x30L Bolt I4 x 1 M6 Metal Washer Please don’t tighten the bolts fully at this step. Step8 I1 x 4 M6x15L Bolt (Remove from the tabletop) I4 x 4 Metal Washer (Remove from the tabletop) Please don’t tighten the bolts fully at this step.
- Page 8 Step9 Tighten all bolts and turn over the table. You can also adjust the level by twisting knobs on the bottom of the legs. Your see breeze set is ready for use! NEED HELP? For help with assembly or if you are missing a part, please visit at www.numarkcustomerservice.com or call 1-800-457- 4652 (9:00 a.m.
-
Page 9: Warranty
Furniture used in commercial, contract or any other non-residential applications; clearance items, display models, and all other as is purchased items are not covered under this warranty. In addition, NUMARK will not be responsible for loss of use or time, inconvenience, travel, packaging, or any other consequential/incidental damages. - Page 10 Sea Breeze 3 piece cushion balcony set Chair Weight limit: 225lbs./102kgs. Care and Maintenance Be careful to never allow water to build up in frames as this will cause corrosion and freeze damage in cold climates. Wash all frames with a solution of mild soap and water.
