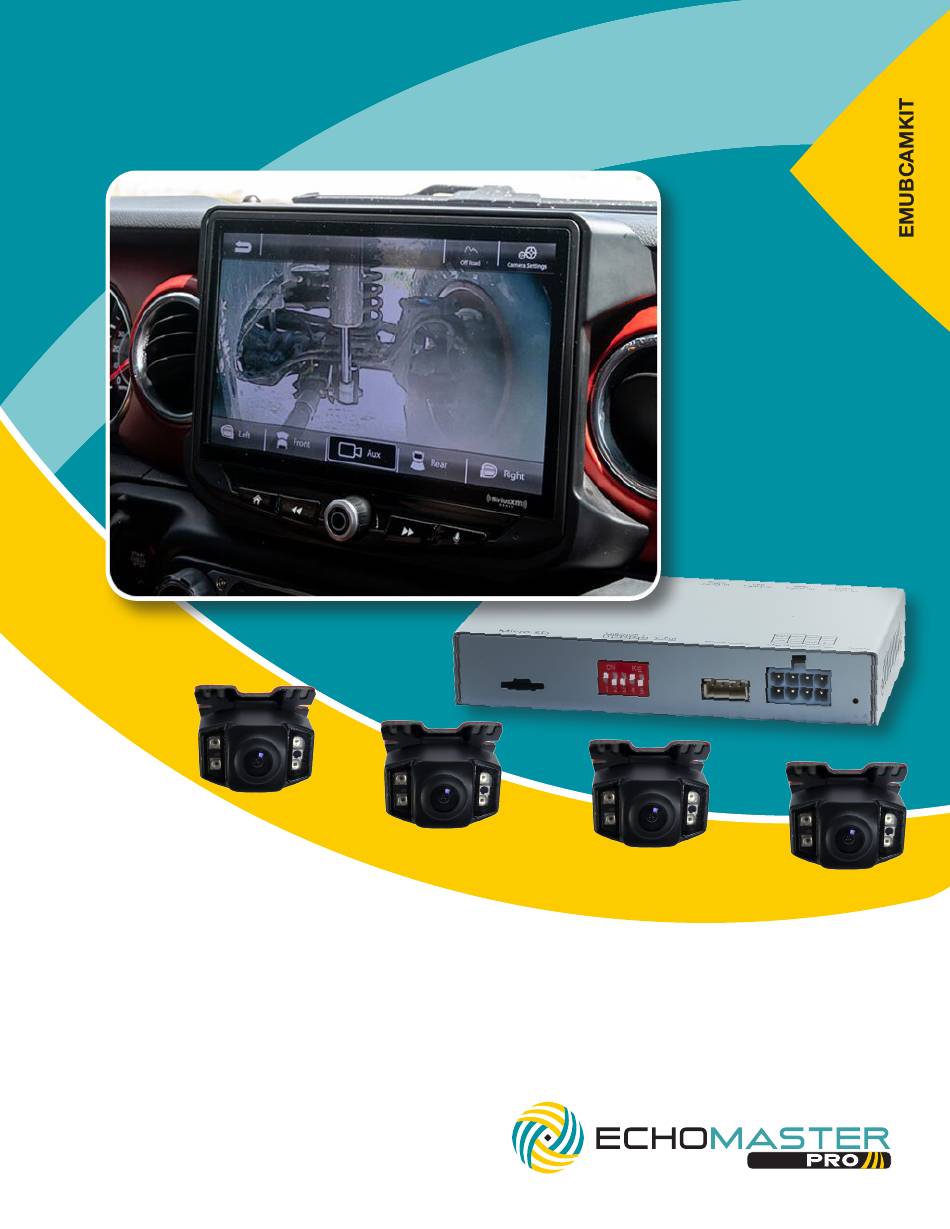

- Page 1 Installation Guide & User Guide UNIVERSAL QUAD VIEW CAMERA KIT with DVR...
- Page 2 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Important Please read and follow the instructions carefully. To emphasize special information, the symbol and the words Warning, Caution and Note have special meanings. Pay special attention to messages highlighted by these signal words.
-
Page 3: What's In The Box
Installation Guide EMUBCAMKIT Universal Quad View Camera Kit What’s in the box Image Description IR/Display Mode Harness Camera Extension Cable Camera Input Adapter Interface Power/Trigger Harness IR Remote Control Power Switch AVS-21 Harness Video Output Harness AVS-21 Video Switcher Camera/Video Interface... -
Page 4: Recommended Tools
Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Recommended Tools Plastic Trim Tool Diagonal Cutters Utility Knife Socket Set Wire Crimpers Drill Ratchet Electrical Tape Brill Bits Screwdrivers Wire Feeder Installation Notes Read this installation guide thoroughly before disassembling vehicle or making wire connections. - Page 5 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Camera/Video Interface Layout DIP Switches DIP switches 1-4 correspond to Cameras 1-4 When in the OFF(DOWN) postion, the camera image will be normal (Non-Mirrored). Non-Mirrored should be used for any forward facing cameras.
- Page 6 Pink - Camera 4 Trigger (+) Installation Guide Orange - Camera 3 Trigger (+) Green - Camera 2 Trigger (+) White - Camera 1 Trigger (+) EMUBCAMKIT Camera Triggers 1-4 Universal Quad View Camera Kit When +12V is applied, displays corresponding camera.
-
Page 7: Installation
Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Installation Step 1 Select a location for the Camera/Video Interface. Behind the glove box or below the radio are both good locations. Ideally, the location should within two feet of the monitor being used. - Page 8 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Installation (continued) Step 3 Positioning The Cameras: FIG A The cameras can be placed anywhere; wheel wells, frame, bumpers, axle. Facing in any direction; forward, rearward, sideways. Note: The cameras come with the mounting bracket at the top of camera (FIG A).
- Page 9 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Step 4 Routing The Camera Cables: Attach a Camera Extension Cable to each camera and route the camera cables to the video interface inside the vehicle. Follow the factory wiring harnesses whenever possible.
- Page 10 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Installation (continued) Step 5 For each camera; plug in a Camera Input Front Rear Left Right Video-out Reset Cam1-in Cam2-in Cam3-in Cam4-in Adapter (1) into the video interfaces camera input. Align the arrows on the Camera Input Adapter and Camera Extension Cable (2) and connect the cables.
-
Page 11: Wiring Guide
Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Wiring Guide There are several different ways to connect the video interface to your monitor source. We have included several Wiring Diagrams. NOTE: If you are connecting to an after-market radio, you may need to remove the radio or refer to the radios owners manual to determine how to wire the video interface. - Page 12 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Wiring Guide 1 1 2 3 4 5 Follow these instructions if you are connecting to: • Stand-alone monitor • After-market radio with Rear camera input, No rear camera installed and On-screen option to turn-on camera •...
- Page 13 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Wiring Guide 2 Follow these instructions if you are connecting to: • After-market radio with Rear camera input, rear camera installed and On-screen option to turn-on camera • Factory radio with a camera interface that can turn on the camera input manually.
- Page 14 Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Wiring Guide 2 (cont.) Step 4 Plug the Video Output Harness into the video interface. Step 5 Connect either the CVBS or AHD RCA to the AV2 IN on the AVS-21. If the radio does not specifically say Analog High Definition, use CVBS.
-
Page 15: Setting The Video Output
Installation Guide EMUBCAMKIT Universal Quad View Camera Kit Setting the Video Output The video interface can output four different DEFAULT SETTING: video signals: AHD 30 fps, AHD 25 fps, CVBS AHD 30 FPS 1 2 3 4 5 NTSC and CVBS PAL. The default setting on initial power up is AHD 30 fps. -
Page 16: Display Mode Button
User Guide EMUBCAMKIT Universal Quad View Camera Kit User Guide IR Remote Control IR Receiver When viewing the video interface, use the IR Remote control to switch between display modes and access Settings. MENU Back Arrow Access the settings Press to return to... -
Page 17: Display Modes
User Guide EMUBCAMKIT Universal Quad View Camera Kit Display Modes Along with full screen modes for each camera, the video interface has different display modes that allow viewing multiple cameras at the same time. Change display modes via the IR Remote Control or the Display Mode Button. -
Page 18: Settings Menu
User Guide EMUBCAMKIT Universal Quad View Camera Kit Settings Menu Pressing the MENU button on the IR Remote Control will bring up the Settings Menu. Use the arrows to navigate the settings icons. Press OK to select highlighted icon. In the setting sub-menu, use the arrows to highlight or change desired setting and the then press OK to save and exit. - Page 19 User Guide EMUBCAMKIT Universal Quad View Camera Kit Output Type Input Type Sets video output type/resolution. Sets input video type/resolution. 720p 25fps / 720p 30fps / CVBS PAL / CVBS NTSC 720p 25fps / 720p 30fps / CVBS PAL / CVBS NTSC This should match your monitor’s format.
- Page 20 EchoMaster. This product is intended for off-road use and passenger use only. 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760 email - support@aampglobal.com tel - 1-800-477-2267 EchoMaster is a Power Brand of AAMP Global. EchoMaster.com IG-EMUBCAMKIT REV. 050622...
