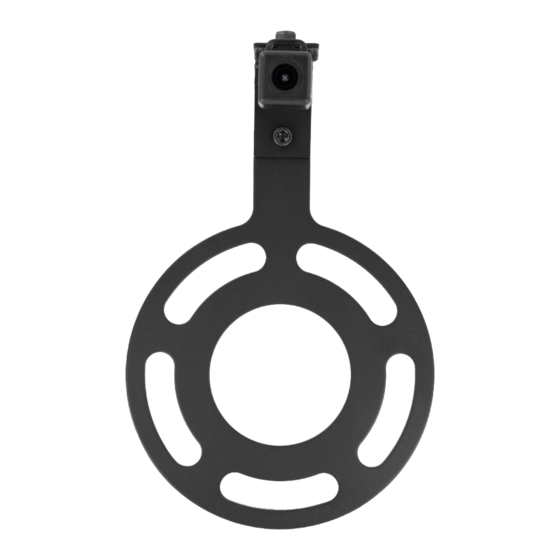

- Page 1 Installation Guide Spare Tire Mount Camera for 2007-2018 Jeep Wrangler JK...
- Page 2 Installation Guide Right Angle Bracket 1. Using two M3 x .50 screws and lock washers, attach the camera to the Camera Mounting Plate. 2. Using a M6 x 1 screw and lock washer, attach the Camera Camera Mounting Plate to Mounting Plate the Right Angle Bracket as shown.
- Page 3 PCAM-JP3 Spare Tire Mount Camera Assembly Riser Plate 3B. For larger wheels, attach the Riser Plate to the Wheel Bracket and attach the camera assembly to the Riser plate using M6 x 1 screws and lock washers. 4. Place the completed...
- Page 4 Parking Lines (Green) On - Joined (Default) Off - Cut Contact Technical Support: email - support@aampglobal.com tel - 1-800-477-2267 web - EchoMaster.com EchoMaster is a Power Brand of AAMP Global. 15500 Lightwave Drive, Suite 202, Clearwater, Florida 33760 IG-PCAM-JP3 REV. 022321...
