Summary of Contents for EchoMaster Pro RVC-W8

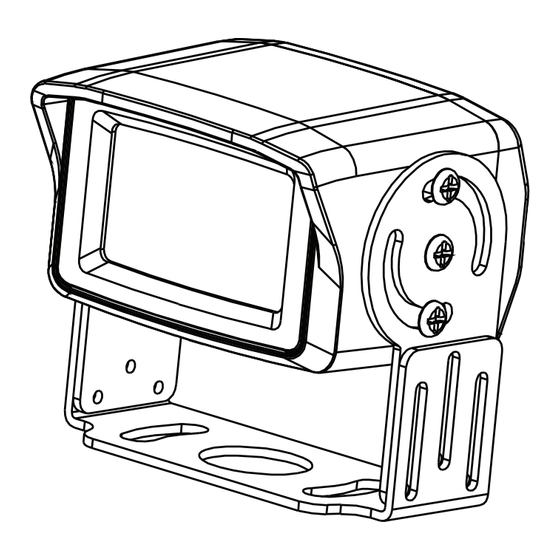

- Page 1 User Manual Wireless Camera & Receiver Kit Must be used in conjunction with FCTP-GM1903 or FCTP-GM2003...
- Page 2 Installation Guide RVC-W8 Wireless Camera & Receiver Kit Introduction Thank you for purchasing your EchoMaster Wireless Camera & Receiver. This EchoMaster camera with receiver is designed to improve safety during driving by providing high quality images of surrounding areas and obstacles in the vicinity of the vehicle.
- Page 3 Installation Guide RVC-W8 Wireless Camera & Receiver Kit Wiring Diagram & Pin-Out Camera wiring Red (Power) – Connect this wire to the positive parking lamp wire in the vehicle / trailer. Black (Ground) – Locate a suitable location to ground (negative) the Black wire in the wiring harness.
- Page 4 Installation Guide RVC-W8 Wireless Camera & Receiver Kit Pairing the Camera The Camera & Receiver are automatically paired. There is no need to pair again unless you need to replace the receiver or camera. If this happens please follow the sequence below to pair the receiver and camera together.
- Page 5 Installation Guide RVC-W8 Wireless Camera & Receiver Kit Specifications Camera (with built-in TX) Image device HM1240 Lens specification 1/4inch 4G Horizontal angle 90° ± 5° Vertical angle 50° ± 5° Imaging resolution 1024 x 600 Pixel Minimum illumination 0 Lux / (infrared LED on) Transmission power 18 ±...
- Page 6 Installation Guide RVC-W8 Wireless Camera & Receiver Kit Specifications (cont.) Receiver (RX) Output signal Output resolution 1024 x 600 Pixel Sensitivity -94dBm Working Frequency 2.4GHz ~ 2.4835GHz Antenna Gain 2.0 dBi @ 2400 ~ 2500GHz System IEEE 802.11 b/g/n Transmission range...
- Page 7 Installation Guide RVC-W8 Wireless Camera & Receiver Kit Notes: email - gmsupport@echomaster.com (US) - tel - 866-766-2267...
- Page 8 AGREEMENT: End user agrees to use this product in compliance with the instructions and terms of use above and with all State and Federal laws. EchoMaster provides instructions and safety warnings with respect to this product and disclaims all liability for any use not in conformity with those instructions or other misuse of its product.
