3. Remove the mounting template and drill holes in the wall.
4. Insert the plugs into the holes made.
5. Screw the four metal anchoring pieces to the wall with the Ø 6.3 x 50 mm screws.

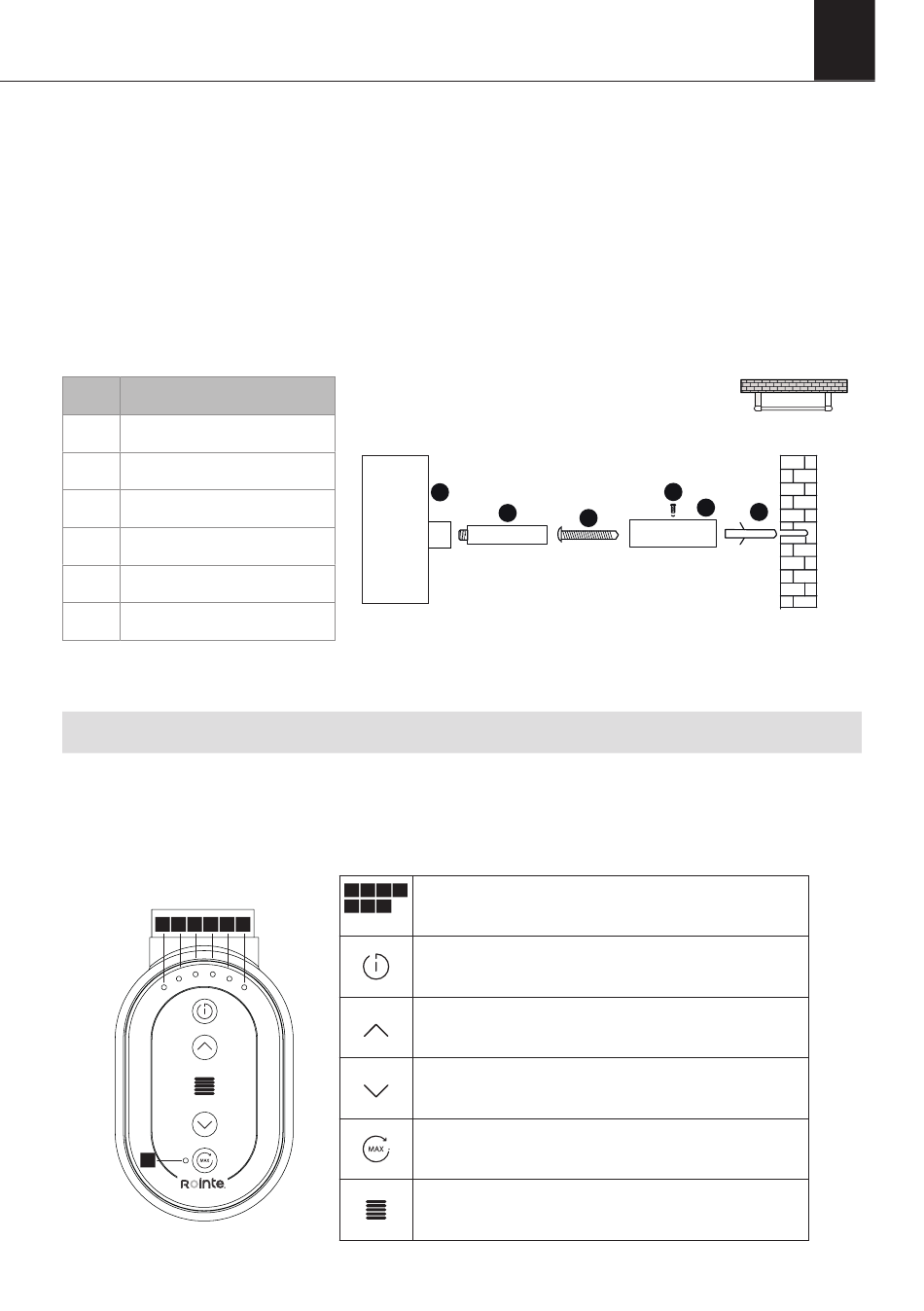

6. Screw the four fastening cylinders to the product as shown in Figure 1.
7. Insert the product plus cylinder assembly from point 6 into the metal wall anchoring
parts and fasten with the Ø 2.9 x 9.5 mm grub screw.
Nº. ITEM
1 Plug Ø 10 mm
2 Metal part Anchor
3 Screw Ø 2,9 x 9,5 mm
4 Screw Ø 6,3 x 50 mm
5 Fixing Cylinders
6 Product
4. SCREEN & KEYPAD
The control panel consists of 7 LEDs and 4 mechanical mechanical buttons with the
following functionalities:
1 2 3 4 5 6
7
ZOCCA OVAL ELECTRIC TOWEL RAIL
6
5
1 2 3 4
LED indicators
5 6 7
Power / Stand-by / Confirmation button
Increase temperature button
Decrease temperature button
Maximum power button
Infrared sensor
3
2
1
4
5
