Summary of Contents for MasterKraft DA026

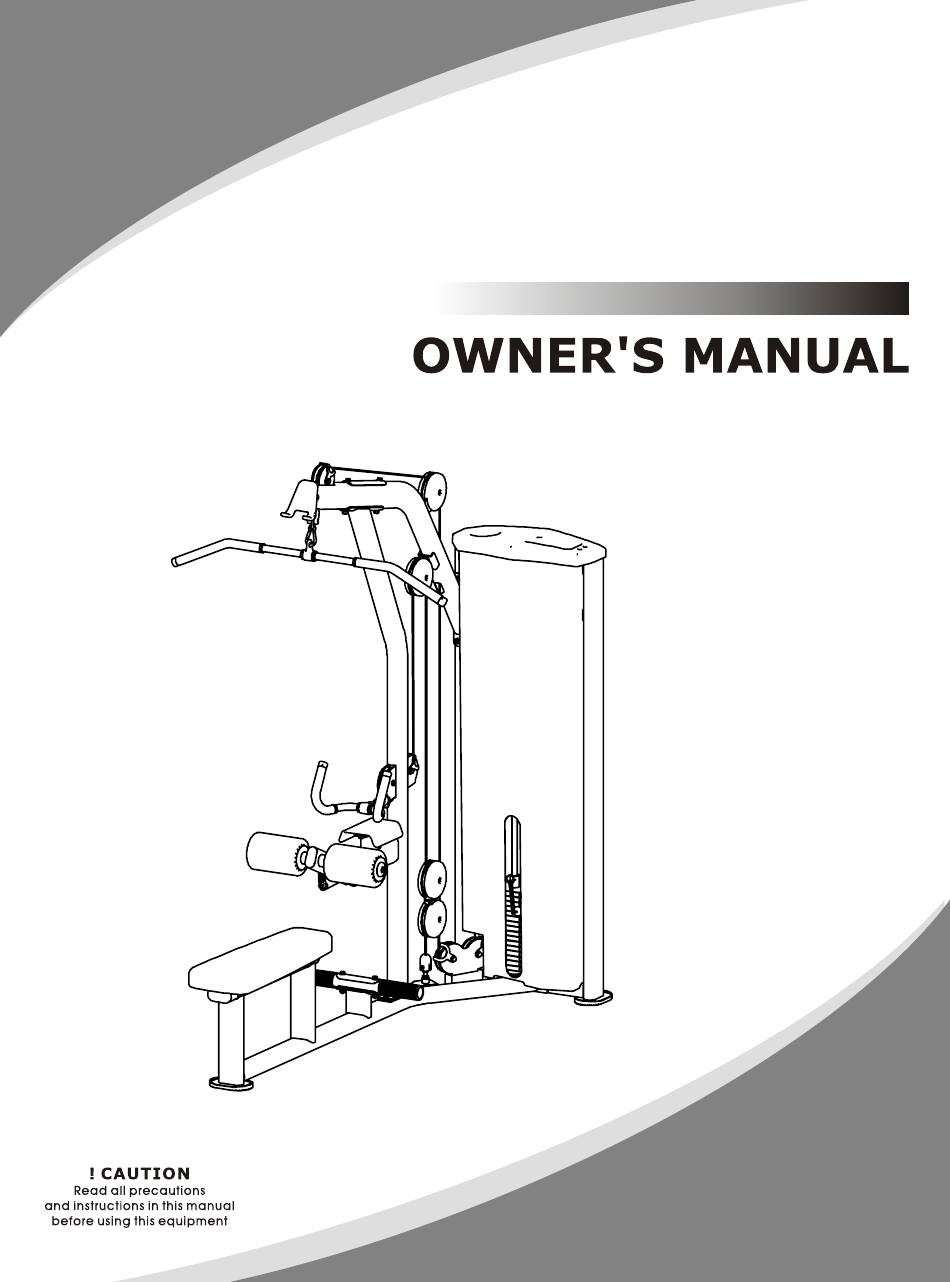

- Page 1 DA026 PULL DOWN/MID ROW...
- Page 5 DESCRIPTION DESCRIPTION ITEM NO ITEM NO Weight Stack Frame Aluminium Grip Cap Adjustable Foot plate Aluminium Grip Ring Standing Frame Bronze Bearing Top Frame Aluminium Ring Swivel Pulley Block Aluminium Cap Foam Frame Nut M10 Handle Support Button Head Cap Screw M12*100 Grip Socket Head Cap Screw M10*50 Lat Bar...
- Page 9 STEP 1 | USER FRAME INSTRUCTIONS & NOTES NOTE: WRENCH TIGHTEN SCREWS. ITEM NO DESCRIPTION Weight Stack Frame Standing Frame Top Frame Hex Bolt M10*125 Hex Bolt M10*95 Hex Bolt M10*30 Flat Washer φ11 Nylon lock Nut M10...
-
Page 10: Description Qty
STEP 2 | USER FRAME INSTRUCTIONS & NOTES NOTE: WRENCH TIGHTEN SCREWS. ITEM NO DESCRIPTION Foam Frame Foot Tube Foam Axle 72.5 Bronze Bearing Button Head Cap Screw M12*100 Hex Bolt M10*75 Flat Washer φ13 Flat Washer φ11 Nylon lock Nut M12 Nylon lock Nut M10 40 16 64 61... - Page 11 STEP 3 | USER FRAME INSTRUCTIONS & NOTES ITEM NO DESCRIPTION Mount Sleeve Guide Rod Socket Head Cap Screw M8*25 Flat Washer φ9 Spring Washer Weight Stack 15/19/24 Top Plate Selector Pin W/Coil Weight Rubber Bumper NOTE: WRENCH TIGHTEN SCREWS. 57 68...
- Page 12 STEP 4 | USER FRAME INSTRUCTIONS & NOTES ITEM NO DESCRIPTION Grip Lat Bar NOTE: WRENCH TIGHTEN SCREWS.
- Page 13 STEP 5 | USER FRAME INSTRUCTIONS & NOTES ITEM NO DESCRIPTION Back Pad Foam Aluminium Ring Aluminium Cap Flat Head Cap Screw M10*25 Hex Bolt M10*75 Hex Bolt M10*30 Flat Washer φ11 NOTE: WRENCH TIGHTEN SCREWS. 46 42 41 23 41...
- Page 14 STEP 6 | USER FRAME INSTRUCTIONS & NOTES ITEM NO DESCRIPTION Rear shroud Front Shroud Top Shroud Hex Bolt M10*20 Flat Washer φ11 Nylon lock Nut M10 Self-tapping screw NOTE: WRENCH TIGHTEN SCREWS.
