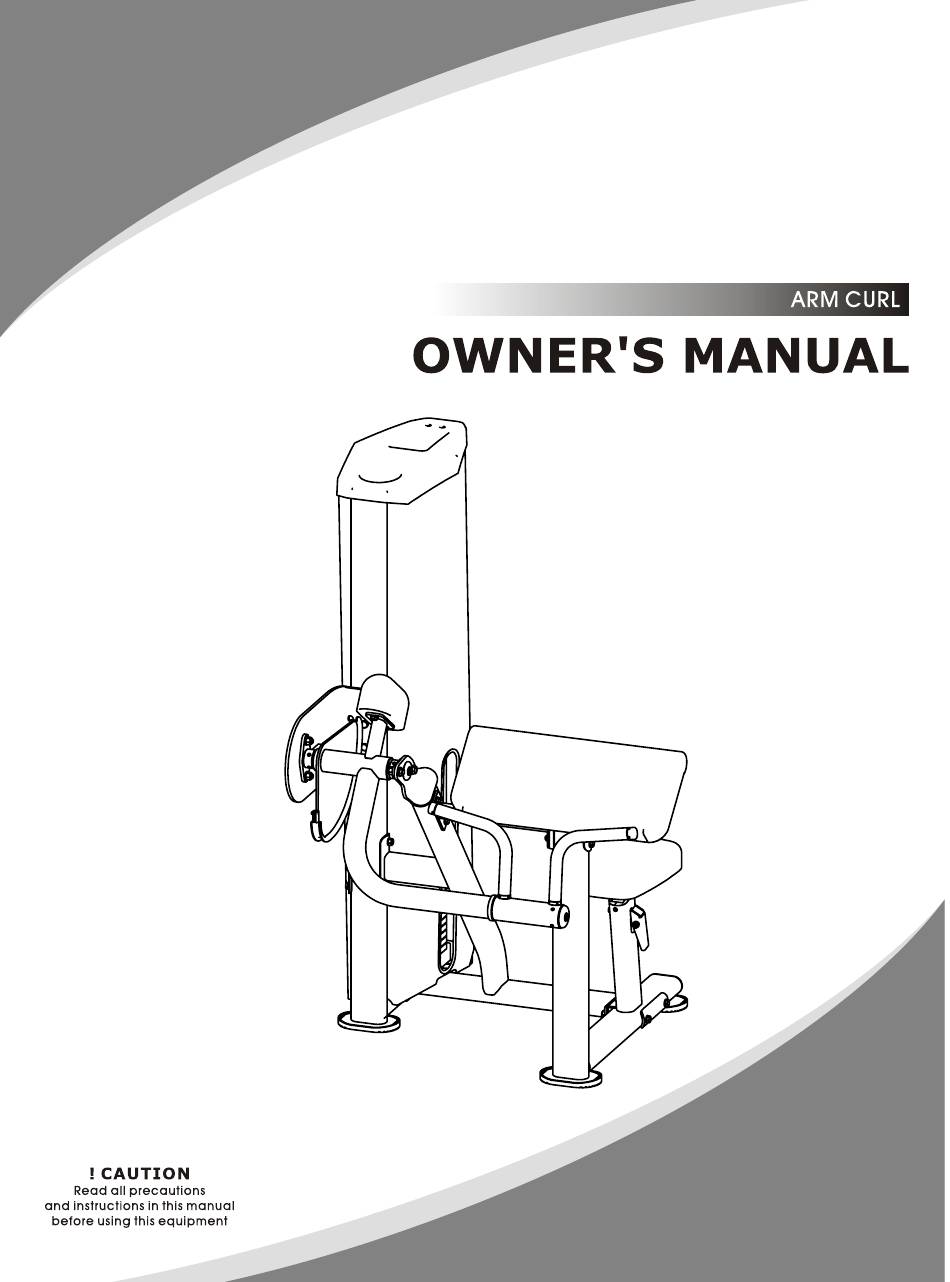

- Page 1 DA006...
- Page 5 Description Description Item No. Item No. Weight Stack Frame 4.5" Pulley Cross Brace Bushing Main Frame Bearing Φ50.8*Φ25.4*15.9 Top Cross Brace Flat Head Hex Rivet Nuts M10*19.5 Arm Bracket Hex Head Bolt M12*35 Hand Bracket Flat Washer φ13*φ24*1.5 Seat Pad Support Nylon lock Nut M12 Main Bracket Flat Head Cap Screw M10*25...
- Page 9 STEP 1 1.Attach the Bottom Cross Brace(#2) to the Main Frame (#3) using: two M10*130 HHB (#45) four φ11*φ20*2 Flat Washer (#53) two M10 Nylon lock Nut (#54) 2.Attach the Top Cross Brace(#4) to the Main Frame (#3) using: two M10*130 HHB (#45) four φ11*φ20*2 Flat Washer (#53) two M10 Nylon lock Nut (#54) 3.Attach the Bottom Cross Brace(#2) to the Top Cross Brace(#4) using:...
- Page 10 STEP 2 1.Attach the Main Bracket (#8)to the Weight Stack Frame (#1) using: three φ13*φ24*1.5 Flat Washer (#41) three M12 Nylon lock Nut (#42) 2.Attach one Flange (#9) to the Bottom Cross Brace (#2) using: two M12*35 HHB (#40) four φ13*φ24*1.5 Flat Washer (#41) two M12 Nylon lock Nut (#42) 3.Attach another Flange (#9) to the Bottom Cross Brace (#2) using: two M12*35 HHB (#40)
- Page 11 STEP 3 1.Attach: two Guide Rod (#26) two φ63.5*25.4 Weight Rubber Bumper (#70) fifteen SYD-JZJ 5KG （#67） one Top Plate （#68） to the Weight Stack Frame (#1) using: two Fixing Sleeve (#27) two M8*50 SHCS (#55) two M8 Nylon lock Nut (#59) two M8*10 Socket Set Screw (#60) 2.Attach the Selector Pin W/Coil (#69) to the Top Plate （#68）...
- Page 12 STEP 4 1.Attach the Cable (#22) to the Top Plate (#68). 2.Attach three 4.5" Pulley (#36) to the Weight Stack Frame (#1) using: two L Bracket (#21) two φ20*φ16*19.3 Sleeve (#23) two M10*50 HHB (#44) one M10*80 HHB (#48) six φ11*φ20*2 Flat Washer (#53) three M10 Nylon lock Nut (#54) 3.Attach the Cable (#22) to the Arm Bracket (#5) using: one M4*15 SHCS (#66)
- Page 13 STEP 5 1.Attach the Seat Pad (#18) to the Seat Pad Support (#7) using: two M10*30 HHB (#51) two φ11*φ20*2 Flat Washer (#53) 2.Attach the Arm Pad (#12) to the Main Frame (#3) using: four M10*30 HHB (#51) four φ11*φ20*2 Flat Washer (#53) 3.Attach the Counter Poise Block (#11) to the Arm Bracket (#5) using: two M10*30 HHB (#51) two φ11*φ20*2 Flat Washer (#53)
- Page 14 STEP 6 1.Attach the Front Shroud (#19) to the Weight Stack Frame (#1) using: four M10*20 HHB (#52) four φ11*φ20*2 Flat Washer (#53) 2.Attach the Rear Shroud (#20) to the Weight Stack Frame (#1) using: two M10*20 HHB (#52) six φ11*φ20*2 Flat Washer (#53) four M10 Nylon lock Nut (#54) 3.Attach the Top Shroud (#31) to the Weight Stack Frame (#1) using: four M5*12 BHCS (#63)
