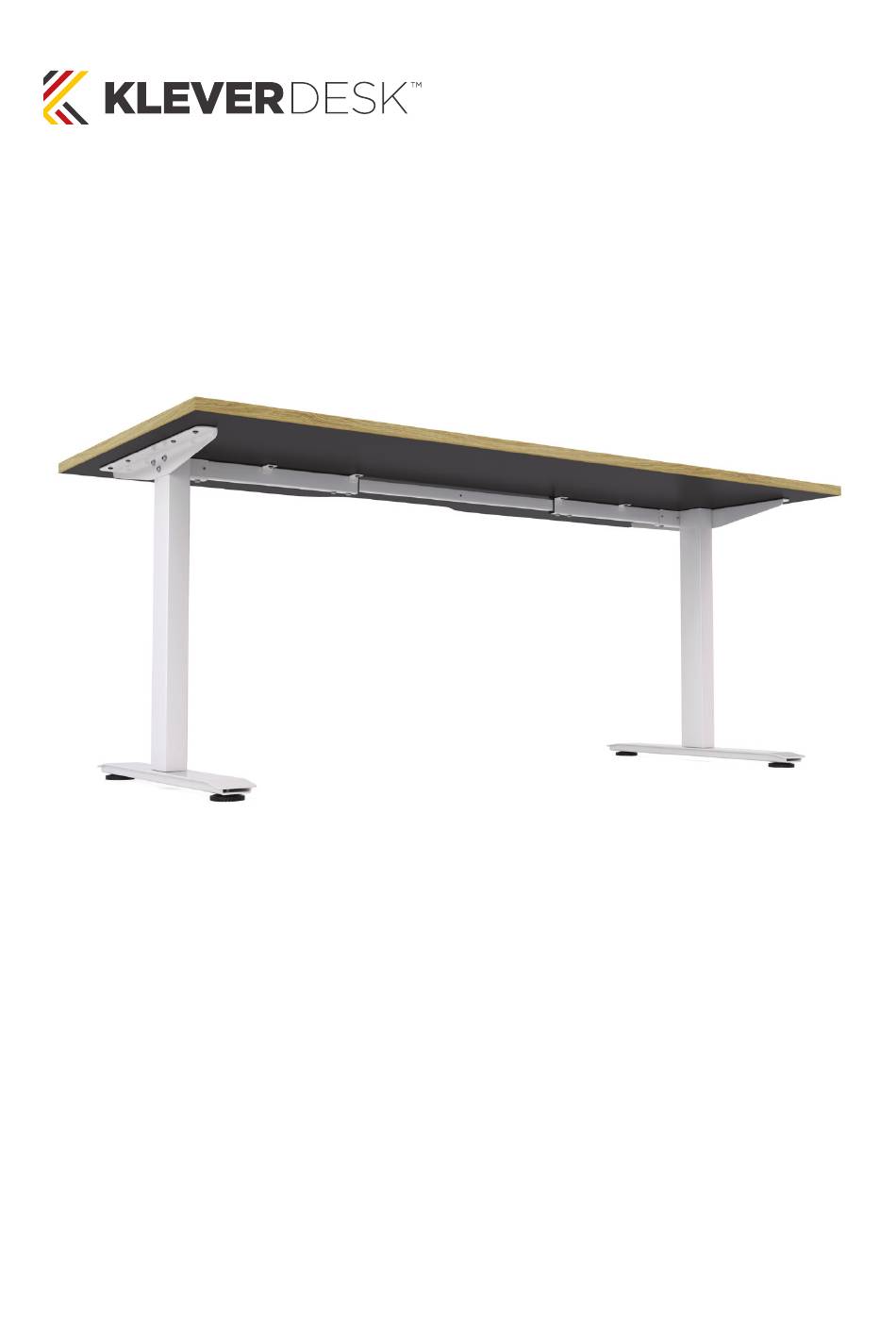

- Page 1 Klever Desk ® Fixed Single Sided Desk Quick Start Guide kleverdesk.co.nz...
- Page 2 Parts Assembly Time One Person Tools Required Part Name Part Name (PCS) (PCS) Foot M6x8 Screw Right Column M6x10 Screw Side Bracket M6x16 Screw Right Tube Left Column Left Tube ST4.8x16 Tapping Screw Extension kleverdesk.co.nz...
- Page 3 Installation Step 1: Set the right and left tube flat. Insert the extension tube into the right and left tube as shown below, pre-tighten the screws. M6*8 Screw Right Tube Extension Tube Left Tube Avoid excessive tightening of screws kleverdesk.co.nz...
- Page 4 Installation Step 2: Line up the holes of the right tube with the holes on the right column and the holes of the left tube with the holes on the left column. Fasten the screws. M6*10 Screw Column Avoid excessive tightening of screws kleverdesk.co.nz...
- Page 5 Installation Step 3: Mount the side bracket on each side of the columns. Fasten the screws. Side Bracket M6*10 Screw Avoid excessive tightening of screws kleverdesk.co.nz...
- Page 6 Installation Step 4: Line up the screw holes on the foot with the holes on the column. Fasten the screws. M6*16 Screw Foot Avoid excessive tightening of screws kleverdesk.co.nz...
- Page 7 Installation Step 5: Check both sides of the desktop before placing the frame on the bottom side of the top. Adjust frame to suitable width (it is suggested that the below measurements are followed when setting the column spacing) and fasten all screws.
- Page 8 kleverdesk.co.nz...
