Please direct enquiries to:
Yardmaster International
Please direct enquires to:
Cahore Road
Yardmaster International
Draperstown
Cahore Road
BT45 7AP
Draperstown
Tel: 028 796 28449
BT45 7AP.
Email: info@yardmaster.co.uk
Tel: 028 7962 8449
INTERNATIONAL
Demandes de renseignements à:
Trigano Jardin
Demandes de
Service Commercial
renseignements à:
Usine du Boulay
TRIGANO JARDIN
41170 Cormenon
Service Commercial
Mondoubleau
Usine du Boulay
Tel: 02 54 73 55 55
41 170 Cormenon
Mondoubleau
Fax: 02 54 73 55 61
Tel: (02) 54 73 55 55
Email: sav.amca@trigano.fr
1
0112
Bitte alle anfragen an:
I.N.I.
Bitte alle
Kaistraße 7-9
Anfragen an:
40221 Düsseldorf
I.D.B.
Tel: 02505 939987
Oststraße 152
Email: service@yardmaster.co.uk
40210 Düsseldorf
Tel: 02 11 36 28 57
0115
Advertisement
Related Manuals for Yardmaster 1020

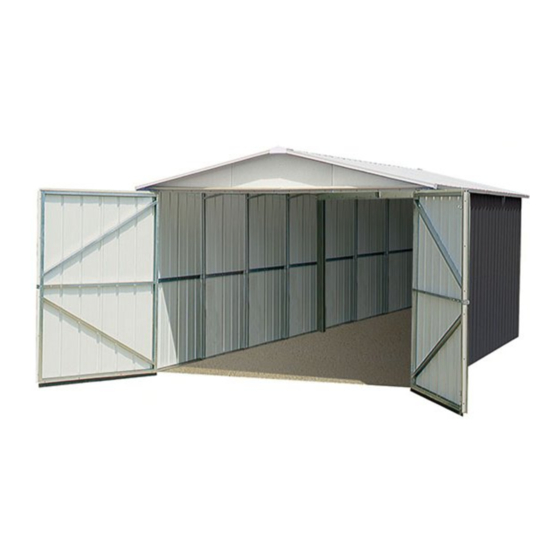

Summary of Contents for Yardmaster 1020

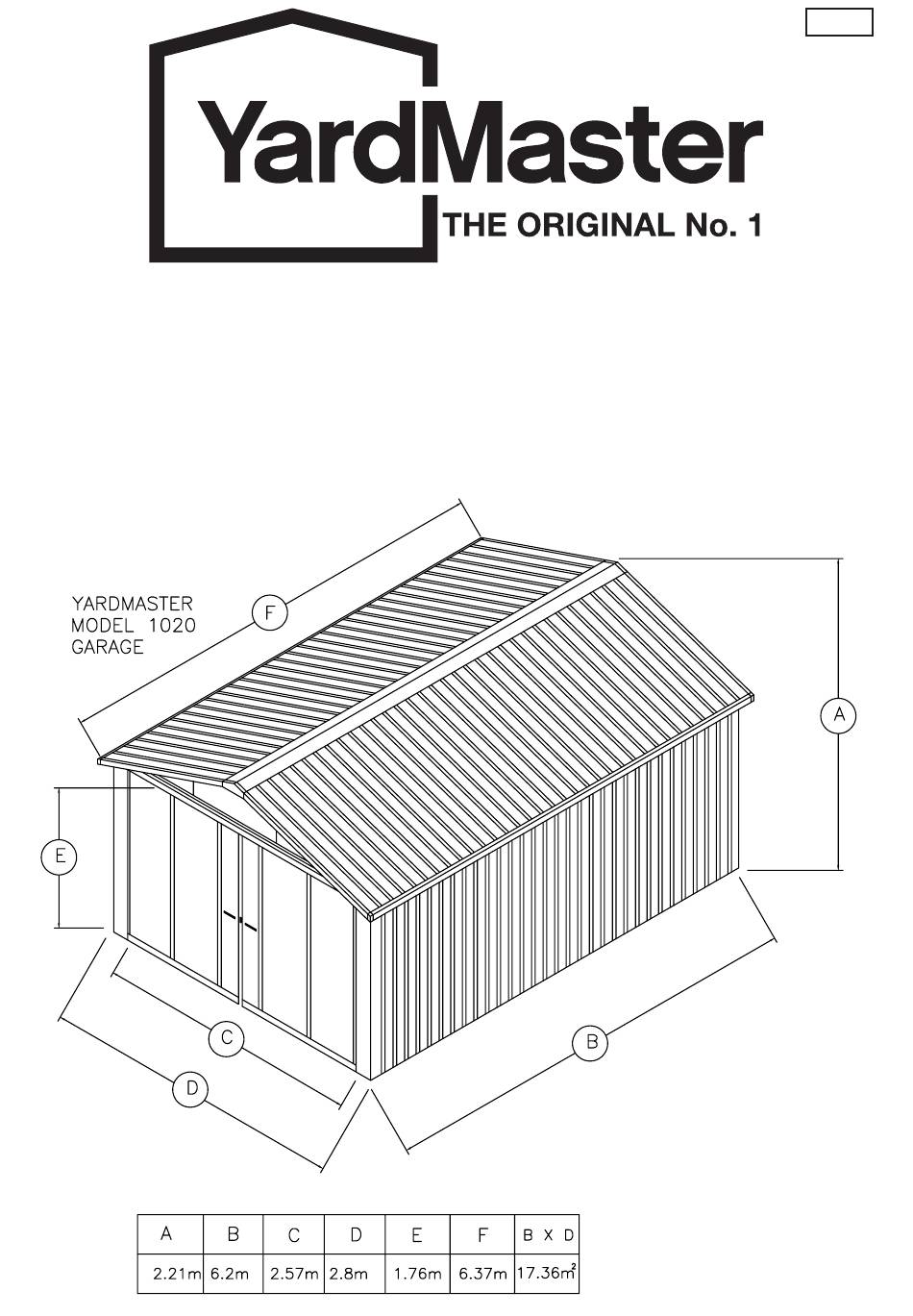

- Page 1 0115 0112 INTERNATIONAL Please direct enquiries to: Demandes de renseignements à: Bitte alle anfragen an: Yardmaster International Trigano Jardin I.N.I. Please direct enquires to: Demandes de Bitte alle Cahore Road Service Commercial Kaistraße 7-9 Yardmaster International renseignements à: Anfragen an:...
- Page 9 M8x19mm x 13...
- Page 11 7mm Holes/Trous...
- Page 12 Attention: Ensure completed frame is square. S'assurer toujours que les diagonales de l'ensemble soient egales.
- Page 13 ALWAYS ENSURE HOLES TO LOCATE HINGES ARE TOWARDS OUTSIDE OF DOOR VUE ARRIERE TOUJOURS S’ASSURER QUE L'EXTREMITE DES GONDS SOIT PLACEE A L’EXTERIEUR DE LA PORTE. DIAGRAM SHOWS BACK OF DOOR VUE ARRIERE...
- Page 14 LA FAITIERE DE PORTE DOIT ETRE FIXEE EN HAUT, A L’INTERIEURE DES MONTANTS 415.01, 415.05 ET DU PANNEAU 601.31 SONT MIS SUR LES TROUS Ø7MM LA BROSSE DOIT ETRE INSTALLEE A L’INTERIEUR DE LA PORTE...
- Page 15 ROOF BEAM SUB-ASSEMBLY Separate and lay flat all roof beams, 50213, 50219 and all roof beam splice plates 50200. Place all roof beams in pairs and set back to back with the sloping sides facing down and away to form a "V" angle head. Overlap one of the 50219 roof beams with one of the 50213 roof beams on the second and third holes on each beam as shown.
- Page 17 FRONT FRAME POST. Select one 41302 and one 41307, fix together as shown with the front frame braces; 41303 using screws (bag 1) and (bag 12). Repeat for other side of front frame. ALWAYS ENSURE HOLES TO LOCATE HINGES ARE TOWARD OUTSIDE OF FRONT FRAME.
- Page 19 BACK SECTION ASSEMBLY. Overlap and attach two back base rails; 41101, to back intermediate base rail; 41104, on inside of either end of 41104 using screws (bag 1). Fix 2 standard uprights; 41301, as shown to centre of back base rail overlaps using screws (bag 2) and spire nuts (bag 10).
- Page 21 BACK SECTION ASSEMBLY. Fix left/right back braces; 41201, and intermediate back brace; 41205 to centre hole in standard upright; 41301. Fit a 10118 wall panel to side of back section; starting from position: : 4th hole from edge of base rail, : 3rd hole along L/R back brace, using screws (bag 1) and washers (bag 12).
- Page 22 BACK RIGHT SIDE SECTION Place base rails 41102, two 41103 and two base rail splice 41106 as shown and fix with screws (bag 1). Fix two standard upright posts; 41301, at centre of each base rail splice 41106 using screws (bag 2) and spire nuts (bag 10). Attach right back side brace;...
- Page 25 BACK RIGHT SIDE SECTION Overlap sidebeams; 50119 and two 50113 as shown using 4 screws (bag 1). N.B. These may have to be removed later to facilitate fitting wall panels Fix spliced sidebeam to both standard uprights; 41301 as shown with screws (bag 1) and spire clips (bag 10), 1300mm from notched edge of 50119.
- Page 28 FRONT RIGHT SIDE SECTION Position base rails; 41105, 41103 and side base rail splice 41106 as shown and fix with screws (bag Fix standard upright to centre of base rail splice 41106 using screws (bag 2) and spire nuts (bag 10).
- Page 31 STRUCTURE ASSEMBLY Raise back section and fix right back section at base rails with screws (bag 1). Secure side and back braces with bolts and nuts (bag 9). Raise back left side and fix to back section in same manner. ALWAYS ENSURE SQUARENESS IN STRUCTURE ASSEMBLY.
- Page 34 STRUCTURE ASSEMBLY Fix front frame assembly to garage frame and corner panel with screws (bag 1) and washers (bag 12). Fix roof truss sub-assemblies to all four opposite pairs of standard uprights. Fix front frame angles, 41604 to front frame and corner panel attachment, screws (bag 1) and washers (bag 12) as shown.
-
Page 36: Roof Frame Assembly
ROOF FRAME ASSEMBLY Fix left hand gable 301, right hand gable 302 and centre gable 305.3 to the wall panels at the back of the garage with screws (bag 1) and washers (bag 12) use double spire clips (bag 13) on bottom edge of gables as needed (where 2 x 7mm holes occur) . - Page 39 ROOF ASSEMBLY MOST IMPORTANT! BEFORE FITTING THE ROOF PANELS CHECK YOUR BUILDING FOR SQUARENESS BY ENSURING THAT THE DIAGONALS ARE EQUAL. Starting at the rear of the building fit roof panels 203.29 and 204.29 over ga ble flange s (panel should overlap gable by 75mm) and fix with screws (bag 1) and washers (bag 14) to gables, roof be ams and sidebeams on each side of the building.
- Page 41 FITTING TRANSLUCENT ROOF PANELS / MONTAGE DES PANNEAUX TRANSLUCIDES Translucent panels 205 may be repositioned as desired Possibilité de repositionnement des panneaux translucides 205 si désiré...
- Page 43 RIDGE CAP COVER FITTING.GUTTER ANGLE FITTING.GUTTER END CAP FITTING. Fit ridge cover caps 507 over the end of the ridge cover ensuring that th e bottom e dge of 507 is under the overhang of th e roof panels. Fasten through th e r idge cover into the roof pane ls using screws (bag 2), washers (bag 14) and spire clips (bag 10).
- Page 45 1. Hang the doors in position and attach using the remainder of the countersunk bolts, nuts and washers provided. 1. M ONTER LES PORTES AVEC LE RESTE DES BOULONS TETES FRAISEES, ECROUS ET RONDELLES PREVUS...
- Page 46 M8x19mm x 13 P O S I T I O N O F G A R A G E M U S T B E D E T E R M I N E D A T T H I S P O I N T A N D S Q U A R E N E S S M U S T B E E N S U R E D 1 .
