usi ARL1800-2700 Quick Start Manual

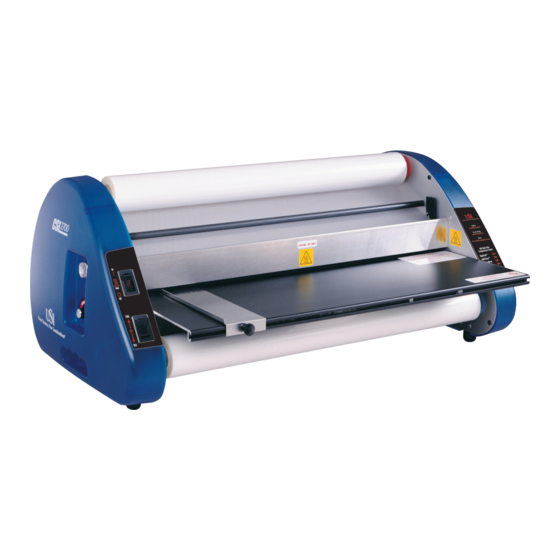

ARL1800-2700

ROLL LAMINATOR

Loading and Threading Roll Laminating Film

Select the two rolls of laminating film that you wish to use. Both rolls of film should be of the same size, type and

thickness. Next, take the bottom supply mandrel (labeled "Low") and insert it into the roll of film until the "gripper dog"

meets the film's cardboard core (photo 9-1). Rotate the mandrel in the opposite direction from which the "gripper dog"

points. As you rotate, apply pressure to force the mandrel into the roll of film and proceed to center it on the mandrel.

Place the loaded mandrel on the laminator. Insert the right side first and then lower the left side into the roll bracket

Take the top supply mandrel (labeled "Top"), insert it into the roll of laminating film, and place it in the top position as

with the lower (process shown in photos 9-1, 9-2).

Note: 1" core laminating film is rolled adhesive side in ("poly in"). When loading fim on mandrel, be sure roll is posi-

tioned correctly to unroll as shown in figure 8-1. If the roll is loaded in reverse, the film could adhere to the laminator

when heated.

FOR NON-COLOR-CODED LAMINATORS & FILM:

See Figure 8-1.

CSL2700

ROLL LAMINATOR

Table of Contents

Do you have a question about the ARL1800-2700 and is the answer not in the manual?

Page 1 CSL2700 ARL1800-2700 ROLL LAMINATOR ROLL LAMINATOR Loading and Threading Roll Laminating Film FOR NON-COLOR-CODED LAMINATORS & FILM: Select the two rolls of laminating film that you wish to use. Both rolls of film should be of the same size, type and thickness.
Page 2 Note: When loading your laminating film, check for film splices. These rolls will be clearly marked. Splices are not common, but are unavoidable. If you find a spliced roll, place it in the top position on the laminator so that the splice can be monitored carefully.
Page 3 Thread the top roll of film under the idler roller as shown in the threading diagram on previous page (see Figure 9-4). Pull the film down so that the films lead edge is below the lower heat shoe. Next thread the bottom roll of film under the lower idler bar pulling film upward until it is even with the top heat shoe (the film will overlap).
