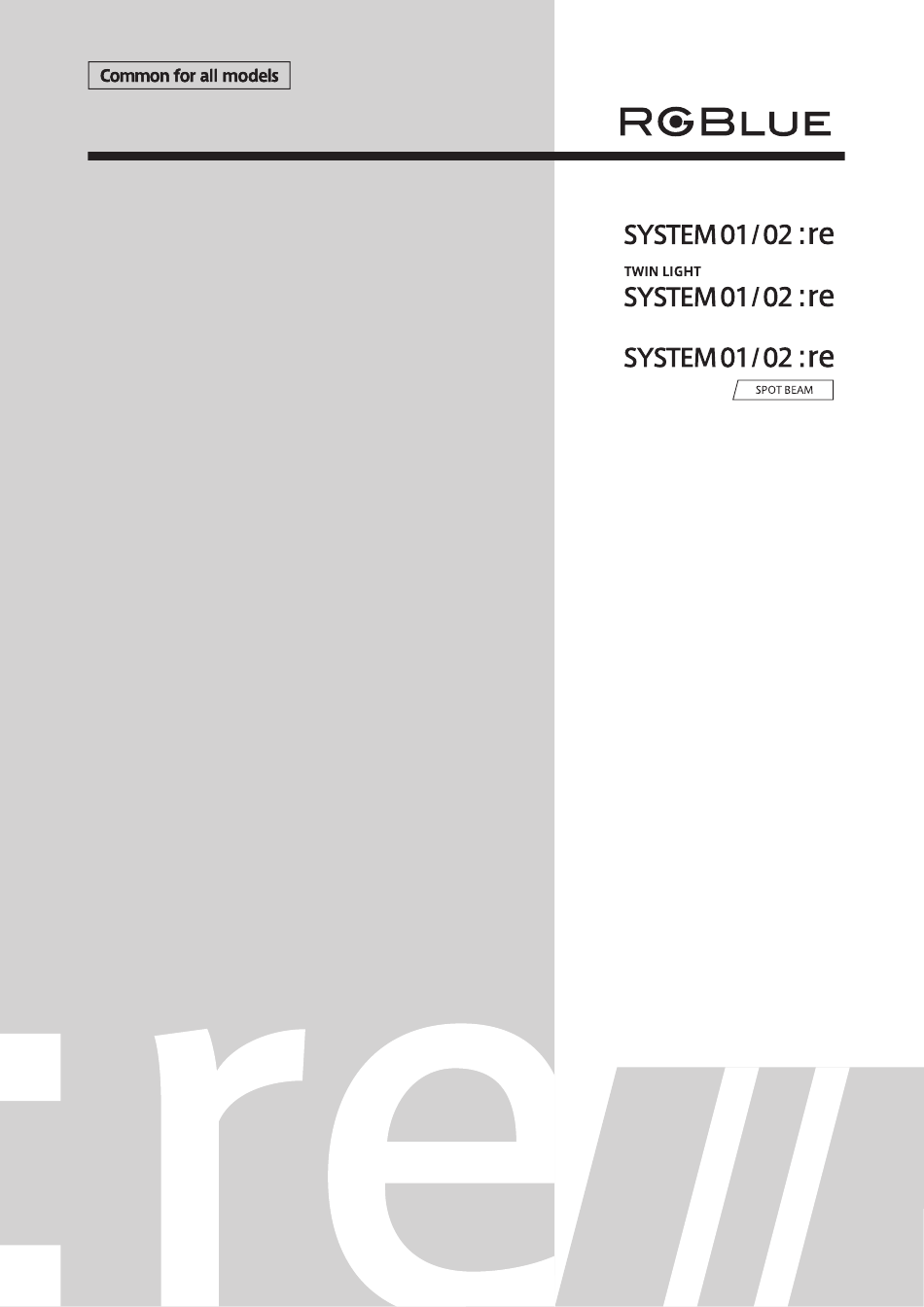

- Page 1 Instruction Manual Operation Maintenance after use Product Number S01RE-SNC S01RE-PC S02RE-SNC S02RE-PC S01RE-TL-SNC S01RE-TL-PC S02RE-TL-SNC S02RE-TL-PC S01RE-SB S02RE-SB...
- Page 2 • Duplication of the contents of this manual without permission from RGBlue is prohibited except for personal use. • The contents of this manual may be subject to change without prior notice. • RGBlue assumes no liability against any claim from a third party for any damage caused by improper use of this product.
- Page 3 Operation Maintenance after use Product Lineup LM5K2600S2 LM4.2K2200G2 LM5K-SP17-2 S01RE-SNC S01RE-PC S01RE-SB S01RE-TL-SNC S01RE-TL-PC Standard Battery Module BM3521S S02RE-SNC S02RE-PC S02RE-SB S02RE-TL-SNC S02RE-TL-PC Large Battery Module BM6721L...
-
Page 4: Table Of Contents
■ How to change the brightness ■ How to change the illumination duration Product Specifications �����������������������������������������������������������������������������������������������������������������11 １ SYSTEM 01/02:re ��������������������������������������������������������������������������������������������� 12 2 SYSTEM 01/02:re TWIN LIGHT ��������������������������������������������������������������������������������������������� 13 3 SYSTEM 01/02:re SPOT BEAM Maintenance after use Maintenance and Storage ������������������������������������������������������������������������������������������������������������������������������������������ 14 About the Recovery Function ������������������������������������������������������������������������������������������������������������������������������������ 15... -
Page 5: Operation
Operation Operation Safety Symbols ● This "Operation/Maintenance after use" manual contains information critical to your safety. Be sure to carefully read all information provided here. ● The following symbols describe the degrees of risk of injury and financial damage that may result if the information given under each symbol is not observed. -
Page 6: Operation 【Light Mode
Operation Operation 【Light Mode】 DANGER • Inspect this product and make sure it is working properly each time you use it� If you use this product when it is not working properly, serious injury may result ■ Power ON (Standby mode) 1. -
Page 7: Light Adjustment
Operation ■ Light adjustment 【 4-step brightness control 】 4-step brightness control S01RE-SNC / S01RE-PC / S02RE-SNC / S02RE-PC 1200 1500 2100 luminous flux value (lm) 1300 1800 Single press 01:re Continuous lighting period (min�) 02:re Press either the UP or DOWN button S01RE-TL-SNC / S01RE-TL-PC / S02RE-TL-SNC / S02RE-TL-PC when the power is ON (in Standby 1200... -
Page 8: Operation 【Flash Mode
Operation Operation 【Flash Mode】 ● The Flash Mode can be used to activate the light(s) for short durations in sync with the light emitted by the camera’s built-in strobe. This mode makes it easier to photograph light-avoiding organisms that are difficult to capture when the light is always on. - Page 9 Operation ■ Setting the light to Flash Mode Press and hold the DOWN button (about 2 sec.) when the power is ON (in Standby mode) until the indicator starts blinking. ○ The power ON/OFF operations are identical to the Light Mode. ○...
- Page 10 Operation ■ How to change the brightness Press the UP button in Flash mode to switch the brightness in 3 steps (High, Mid, and Low). ○ No light is emitted while the light intensity is being selected. ○ Each time the brightness is switched, the indicator’s blinking intervals change. The tables below show how the blinking intervals change.
-
Page 11: Product Specifications 1
Operation 全機種共通 Product Specifications 1 SYSTEM01:re SYSTEM02:re Product name / number SUPERNATURALCOLOR ／ S01RE-SNC SUPERNATURALCOLOR ／ S02RE-SNC SYSTEM01:re SYSTEM02:re PREMIUMCOLOR ／ S01RE-PC PREMIUMCOLOR ／ S02RE-PC Module Light LM5K2600S2 LM4.2K2200G2 product number Battery BM3521S BM6721L Light source Irradiation angle 100° Color temperature 5000K 4200K Color rendering index Ra95 Total flux ... - Page 12 Operation Operation Product Specifications 2 SYSTEM01:re TWIN LIGHT SYSTEM02:re TWIN LIGHT Product name / number SUPERNATURALCOLOR ／ S01RE-TL-SNC SUPERNATURALCOLOR ／ S02RE-TL-SNC SYSTEM01:re TWIN LIGHT SYSTEM02:re TWIN LIGHT PREMIUMCOLOR ／ S01RE-TL-PC PREMIUMCOLOR ／ S02RE-TL-PC Module Light LM5K1300S2 LM4.2K1100G2 product number Battery BM3521S BM6721L Light source Irradiation angle 100° Color temperature 5000K 4200K Color rendering index Ra95 Total flux ...
- Page 13 Operation Operation Product Specifications 3 Product name / number SYSTEM01:re SPOT BEAM ／ S01RE-SB SYSTEM02:re SPOT BEAM ／ S02RE-SB Module Light LM5K-SP17-2 product number Battery BM3521S BM6721L Light source Irradiation angle* With beam attachment 5° Without beam attachment 17° Color temperature 5000K Color rendering index Ra80 Total flux Max. 1300lm ２ Maximum irradiation distance* 400m (on land, without beam attachment) 1m Central illuminance With beam attachment 4-step brightness control （ 9000lx / 14000lx / 19000lx / 30000lx) ...
-
Page 14: Maintenance After Use
Maintenance after use Maintenance after use Maintenance and Storage • After fi nishing the use of the product, remove the lens, etc� (without disconnecting the modules) and soak the product in fresh water under normal temperature for more than one hour to eliminate the salt content� •... -
Page 15: About The Recovery Function
Maintenance after use About the Recovery Function ● If water penetrates the system, the built-in protection circuit is activated to temporarily prevent the power from being turned on. To deactivate the protection circuit and restore normal function, follow the steps below. - Page 16 ● For inquiries, see contact information below. AOI Japan Co., Ltd. E-mail : info@aoi-jp�biz Reception hours: 10:00–17:00, Monday–Friday, (Closed: Saturday,Sunday and national holidays) 2F, Parktower Yokohama Portside 2-1 Kinko-cho, Kanagawa-ku, Yokohama, Kanagawa, Japan 221-0056...
