Reefe VSD1-15 Instruction Manual

INSTRUCTION MANUAL – VARIABLE SPEED DRIVE PUMP CONTROLLER
CODE MODEL
16909 VSD1-15
16954 VSD1-15-240
16916 VSD1-22
16923 VSD3-22
16930 VSD3-40
16947 VSD3-55
Before installation and use of this product, please read and follow these instructions carefully! Take note that these
VSD Controllers must be installed by a qualified and licenced Electrician. The installer is responsible to ensure the
controller is sized correctly to the pump to which it is being connected to. This product is not to be used as the only
source of water supply for critical applications such as medical equipment. It is recommended that you implement a
standby (dual) pump system for backup operations in critical applications. This controller is specifically designed for the
operation of pump motors only and is not to be used for any other purpose.
Page | 1
Ascento 37 Export St Lytton QLD PH: 1800 807 604 | VSD Pump Controller | V2017.12 | Copyright 2017
Single
1.5 kW 240V
Phase
Single
1.5 kW 240V
Phase
Single
2.2 kW 240V
Phase
2.2 kW 3 Phase 415V
4.0 kW 3 Phase 415V
5.5 kW 3 Phase 415V

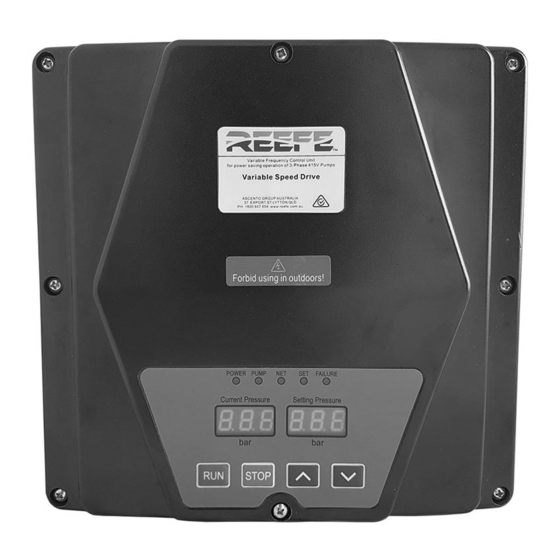

REEFE® VSD inverter controllers use the latest VVVF
(Variable Voltage and Variable Frequency) AC frequency
speed regulation technology. Combined with pressure
sensing technology through measuring of real-time
system pressure,
automatically adjust the motor speed and maintain a
constant outlet pressure. They are very efficient, easy to
install and have user friendly interface controls for quick
setup. No programming is required, simply set your
desired operating pressure and press RUN...let the
controller save you money on your operating costs.
POWER
3 Phase
Single Phase
3 Phase
3 Phase
3 Phase
3 Phase
this allows the
20~50 4-20mA 10 bar
20~50 4-20mA 10 bar
20~50 4-20mA 10 bar
20~50 4-20mA 10 bar
20~50 4-20mA 10 bar
20~50 4-20mA 10 bar
controller to
o
0~+100 C
o
0~+100 C
o
0~+100 C
o
0~+100 C
o
0~+100 C
o
0~+100 C
