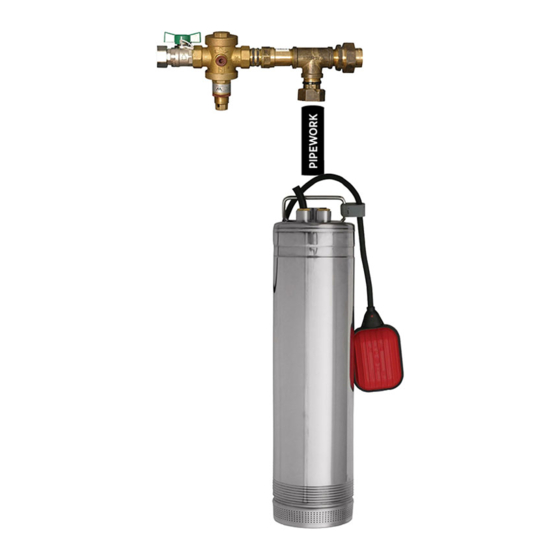

- Page 1 SUBMERSIBLE RAIN MAINS SYSTEM EXPLODED VIEW & INSTRUCTION MANUAL MODEL: RM5000-3 PUMP: RPS34E CODE: 21323 www.reefe.com.au...
-
Page 2: Parts List
PARTS LIST & EXPLODED VIEW Refer next page for componentry listing www.reefe.com.au... - Page 3 Stainless Steel 304 Motor Body Stainless Steel 304 Mechanical Seal Alumina/Graphite Lubricated Motor Shaft Stainless Steel 304 Impellers & Diffusers Re-enforced PPO Mains Isolation Valve Brass Pressure Reduction Valve Brass Pump Connector (Union) with CV Brass Dual check valve (DCV) Brass www.reefe.com.au...
-
Page 4: Warranty
WARRANTY & ® INSTRUCTION MANUAL RM5000-3 SUBMERSIBLE PUMP SYSTEM WITH RPS AND RAINPRO RMV3550 RAIN TO MAINS BACKUP VALVESET **PLEASE LEAVE THIS GUIDE IN A SAFE PLACE FOR THE OWNER** IMPORTANT INSTALLATION GUIDELINES Mandatory installation condition: the premises where the pump is installed, and the power circuit to which it is connected, must be protected by an rcd (safety switch) –... -
Page 5: Correct Installation
LOOSE USE 15+ WRAPS WARRANTY OF THREAD SEAL TAPE ON THE MI FITTING RECOMMENDATION: PRESSURE TANK PIPEWORK: DISCHARGE PIPEWORK MUST NOT BE SMALLER THAN 25MM (OR THE OUTLET OF THE PUMP.) IF UNSURE, CONFIRM WITH A CONSULTANT FOR A SUITABLE RECCOMENDATION www.reefe.com.au... - Page 6 PUMP SHOULD BE AT THE BOTTOM OF THE TANK NO APPLIANCE LASTS FOREVER. INSTALLATION MUST ALLOW FOR REMOVAL FOR SERVICING OR REPAIRS WARRANTY SERVICE DOES NOT COVER COST OF MOVING TANK NEVER LIFT THE PUMP FROM THE CABLE LIFT THE PUMP USING A CORD THROUGH THE HANDLE www.reefe.com.au...
-
Page 7: How The System Works
& the installation, also see the important note below) 14. IMPORTANT! FOR PUMPS WITH FLOATS: The water level will need to be 250mm to 800mm high inside the tank, for the pump to start. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 8: Installation & Checklist
If you experience any problems, refer to the troubleshooting guide first, before calling for warranty service. A call-out fee will apply for all field … service work if it is found not to be a Warranty problem. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 9: Things To Check Before You Call For Service
Turn the pump off, and turn off the valve between the RMV3550 Valves and the pump (Ball-valve or Gate-valve) b) Then ensure all water outlets in the house and garden etc are turned off, ensure that any garden taps are off and not dripping. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020... -
Page 10: Operating & Maintenance
Valves as they are factory set and must not be interfered with. 4. TROUBLESHOOTING: - Refer to the Troubleshooting Guide. 5. SPARE PARTS LIST IF REQUIRED: RainPro RM5000-3 Water Controller Spare Parts Order Code Description Price inc. GST*... - Page 11 ASCENTO GROUP AUSTRALIA 37 Export St, Lytton, Brisbane, QLD 4178 | P: 1800 807 604 • E: sales@ascento.com.au • W: www.ascento.com.au © COPYRIGHT 2020 No part of this publication is to be copied stored or distributed in any manner or form without the prior written permission of Ascento Group Australia. E&EO. www.reefe.com.au P: 1800 807 604 Ascento Group Australia AI.062020...
