Connections

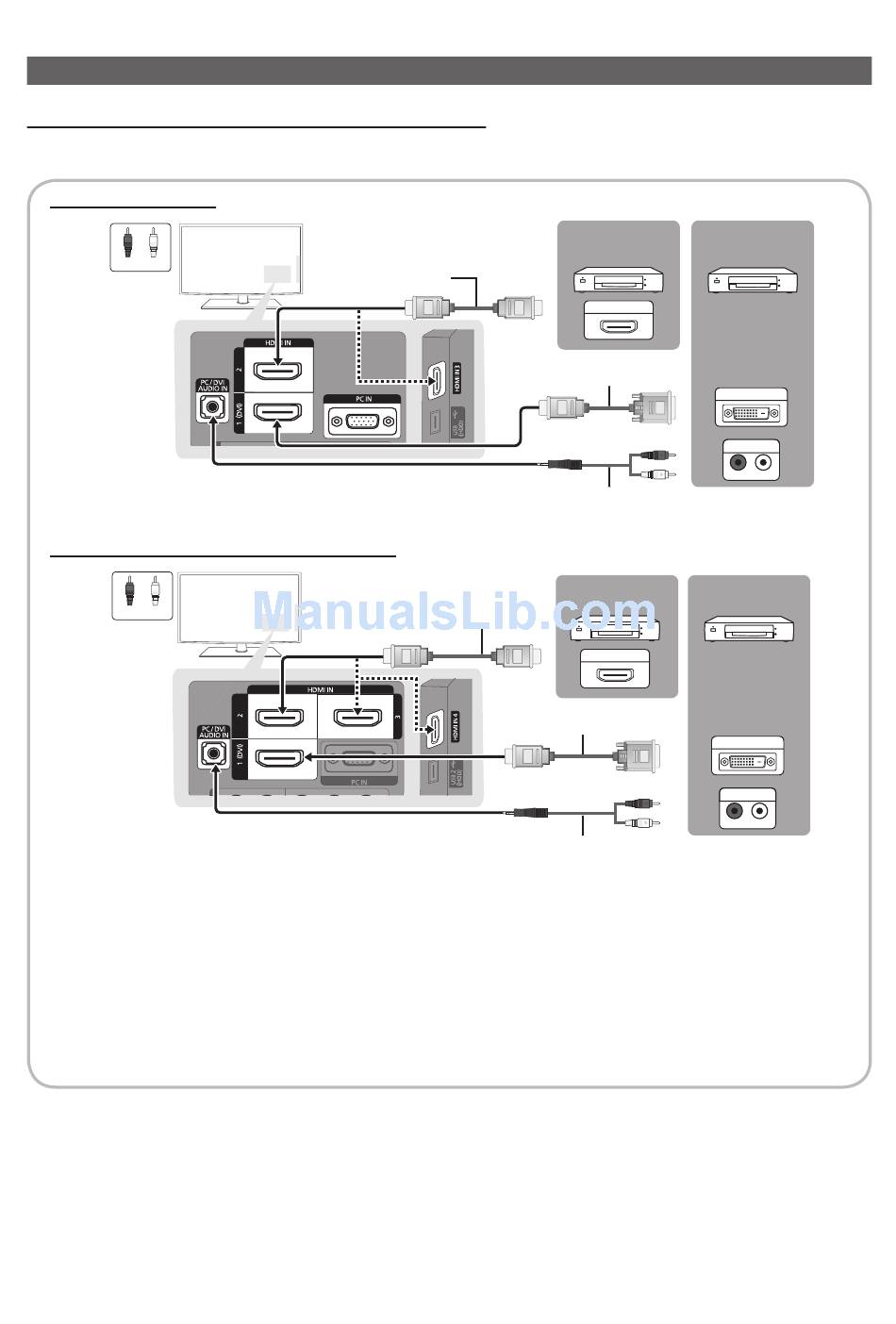

Using an HDMI or HDMI/DVI cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver.
PN50C540 / PN58C540
R
W
Red White
PN50C550 / PN50C590 / PN58C550 / PN58C590
R
W
Red White
HDMI IN 1(DVI), 2, 3, 4, PC/DVI AUDIO IN
x
When using an HDMI/DVI cable connection, you must use the
player, HD cable box, HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI
to HDMI) adapter. The
x
The picture may not display normally (if at all) or the audio may not work if an external device that uses an older
version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external
device about the HDMI version and, if out of date, request an upgrade.
x
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.
10
English

Connecting to an AV Device

HDMI Cable (Not Supplied)
HDMI Cable (Not Supplied)
jack is required for audio.
PC/DVI AUDIO IN
Device
HDMI OUT
HDMI to DVI Cable (Not Supplied)
Audio Cable (Not Supplied)
Device
HDMI OUT
HDMI to DVI Cable (Not Supplied)
Audio Cable (Not Supplied)
HDMI IN 1(DVI)
jack for video. A DVD, Blu-ray
Device
DVI OUT
AUDIO OUT
R-AUDIO-L
Device
DVI OUT
AUDIO OUT
R-AUDIO-L
