Summary of Contents for Wassermann WGS-25 T

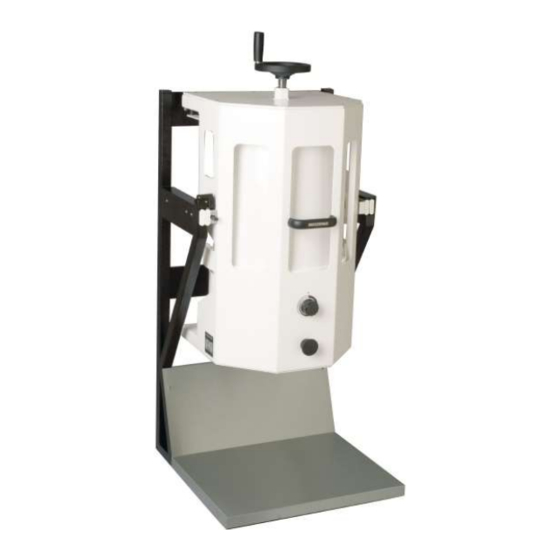

- Page 1 Plaster Storage Bins WGS-25 T/W USER MANUAL...
- Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
-
Page 3: Table Of Contents
Contents 1 Features...........................4 2 Safety Symbols used in this Manual.................4 3 Safety Guidelines......................5 4 Responsibility for Operation or Damage................5 5 Application........................5 6 Before Starting.........................6 6.1 Transport........................6 6.2 Installation........................6 6.2.1 Wall-mounted Model WGS-25W.................6 6.3 Storage........................6 7 Installation/ Start-up......................7 7.1 Initial Filling/ Refilling....................7 8 Operation..........................8 8.1 General Operating Instructions..................8 9 Troubleshooting........................9... -
Page 4: Features
Very sturdy steel construction • Scratch-resistant plastic powder coating for easy cleaning • Optimised for use with Wassermann DSW-2 and DSW-2/4 K dosing scales • Safety Symbols used in this Manual Warning! This is a warning of risk situations and dangers. -
Page 5: Safety Guidelines
The unit has to be maintained and operated in accordance with this user manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the nonobservance of these instructions. -
Page 6: Before Starting
Before Starting Transport Before transporting the unit, ensure that it has been unplugged from the power socket. Make sure that it is packed correctly in order to avoid accidental damage. Be sure to check for any transport damage when unpacking the goods. Note down any damage if found. -
Page 7: Installation/ Start-Up
Installation/ Start-up Initial Filling/ Refilling 1. Loosen the lock bolt and pull out the silo by holding it by the handle until the lock bolt locks again. 2. Loosen the lever and rotate the silo 180° until the lever locks again. 3. -
Page 8: Operation
Operation General Operating Instructions All instructions for using the unit, whether in verbal or written form, are based on our own experience and experimentation and can only be regarded as guidelines. The unit is now ready for operation. • Remove the rubber stopper at the lower outlet. •... -
Page 9: Troubleshooting
Troubleshooting Fault Cause Solution No vibrations. Power plug is not Check the power plug and connect it. connected. Plug connection is Check the plug connectiion and relock. not locked. No plaster comes out. The rubber Check the rubber stopper and remove it. stopper is not removed. -
Page 10: Care And Maintenance
Care and Maintenance 10.1 Cleaning Disconnect the power plug before starting any maintenance work. The identification plate has always to be kept in easily legible condition and has not to be removed. Remove external dirt from time to time with some form of cold cleaner. Use only cold cleaners to avoid damaging the paintwork or removing the lettering. -
Page 11: Scope Of Delivery/ Accessories
10.6 Scope of Delivery/ Accessories Included parts Item no. 25 kg supply container Accessories Item no. 25 kg supply container with lid 390030 10.7 Warranty The warranty period for our equipment is 12 months. If faults occur within the warranty period, contact your dental depot or get in touch directly with our service department. -
Page 12: Technical Data
Technical Data WGS-25 T Item no.: 166998 WGS-25 W Item no.: 166999* Voltage: 220–240 V / 50/60 Hz Power consumption: 0.3 A Output: 70 W W x H x D / max. D: 445 x 1065 x 400 mm / max. 790 mm 445 x 910 x 400 mm / max. -
Page 13: Disposing Of The Unit
Disposing of the Unit The unit has to be disposed by an authorized recycling operation. The selected company has to be informed of all possibly health-hazardous residues in the unit. 12.1 Information on Disposal for Countries within the EU To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw materials, the European Commission adopted a directive that requires the manufacturer to accept the return of electrical and electronic units for proper disposal or recycling. -
Page 14: Eu Declaration Of Conformity
W A S S E R M A N N Product description: Plaster Storage Dental-Maschinen GmbH Bin for dental Rudorffweg 15-17 applications 21031 Hamburg Germany Model: WGS-25 T Item no. 166998 WGS-25 W Item no. 166999 Applicable DIN EN 61010-1 standards: DIN EN 61000-6-3 DIN EN 61000-6-1 DIN 45635-1 DIN EN 60335-1 Hiermit wird bestätigt, dass die oben bezeichnete Maschine den genannten EU-Richtlinien... - Page 15 Notes:...
