Summary of Contents for Wassermann SG-1

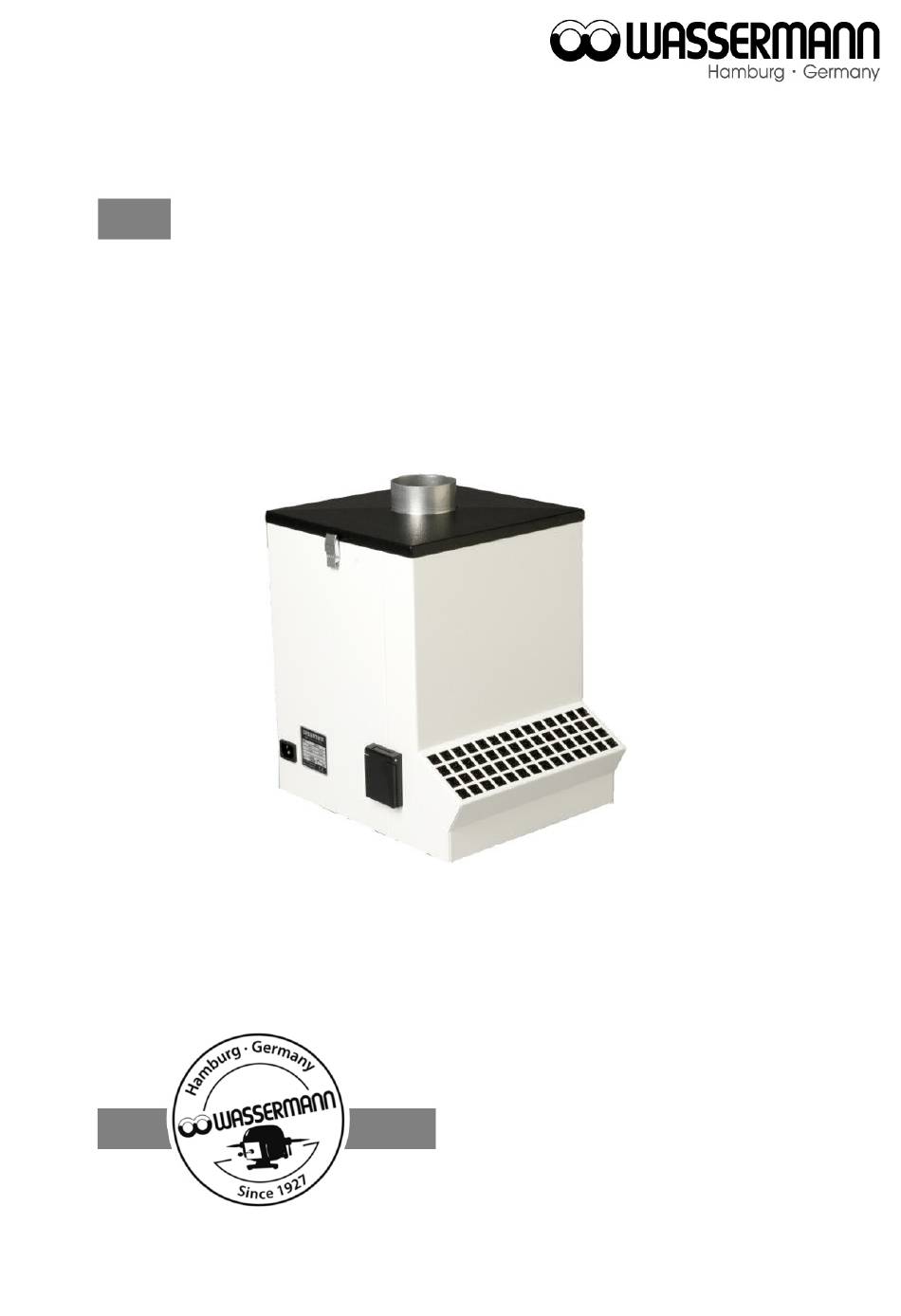

- Page 1 Suction unit SG-1/1 Single Workbench Suction Unit USER MANUAL...
- Page 2 Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann Dental- Maschinen incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation, please read this user manual carefully before you connect this device and start work, and operate the device according to the recommended guidelines.
-
Page 3: Table Of Contents
Contents 1 Features..........................4 2 Safety Symbols used in this Manual..................4 3 Safety Guidelines.......................5 4 Responsibility for Operation or Damage................5 5 Application..........................6 6 Before Starting........................6 6.1 Transport........................6 6.2 Installation........................7 6.3 Storage........................7 7 Installation/ Start-up......................7 8 Operation...........................8 8.1 General Operating Instructions...................8 9 Troubleshooting.........................8 10 Care and Maintenance.....................8 10.1 Cleaning........................8 10.2 Maintenance......................9... -
Page 4: Features
Features Single workbench suction unit according to the low pressure principles • Multifunctional deployment – from polishing trough to fine blasting units • Maximum flexibility via extremely compact construction design • Incl. plug for elaboration machines or polishing motors • Virtually noiseless operation, no cooling down of the hands •... -
Page 5: Safety Guidelines
The unit has to be maintained and operated in accordance with this user manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the nonobservance of these instructions. -
Page 6: Application
Application The SG 1/1 suction unit can be installed in various locations such as a dental-laboratory workbench or a polishing trough. Its suction action combines a maximum quantity of air and a low air speed and is dedicated to extracting suspended dust particles, which could enter the lungs. -
Page 7: Installation
Installation Open the box, remove the packing materials, and carefully lift out the device and accessories. Check the included accessories. The device has to stand horizontally on a steady and even surface. Install the device in a place where it will not block the working area and the functionality (take the dimensions into account). -
Page 8: Operation
Operation General Operating Instructions All instructions for using the unit, whether in verbal or written form, are based on our own experience and experimentation and can only be regarded as guidelines. Use the rocker switch on the cable to switch the unit on and off. Troubleshooting Contact your dental depot or our service department. -
Page 9: Maintenance
10.2 Maintenance 10.2.1 Changing the Filter This equipment uses a one-way, micro fine filter bag, which must be replaced once it is full of dust. To do so, open the catches right and left, remove the cover, take out the filter bag and then remove the packaging from the replacement bag. -
Page 10: Scope Of Delivery/ Accessories
This warranty does not cover damage caused by improper use, external mechanical causes, transport damage or interference with the unit by unauthorized persons. Technical Data SG-1/1 Item no.: 140995 Voltage* 220–240 V / 50/60 Hz Power consumption 0.75 A... -
Page 11: Disposing Of The Unit
Disposing of the Unit The unit has to be disposed by an authorized recycling operation. The selected company has to be informed of all possibly health-hazardous residues in the unit. 12.1 Information on Disposal for Countries within the EU To conserve and protect the environment, prevent environmental pollution and improve the recycling of raw materials, the European Commission adopted a directive that requires the manufacturer to accept the return of electrical and electronic units for proper disposal or recycling. -
Page 12: Eu Declaration Of Conformity
Hiermee wordt bevestigd dat bovengenoemde machine voldoet aan de voorgeschreven EU normen. Deze verklaring verliest geldigheid als er zonder onze uitdrukkelijke toestemming wijzigen aan de machine worden aangebracht. Place, date: Hamburg, 2017-07-10 Company stamp: Signature: ________________________ Wilfried Wassermann (Managing Director) - Page 13 Notes:...
