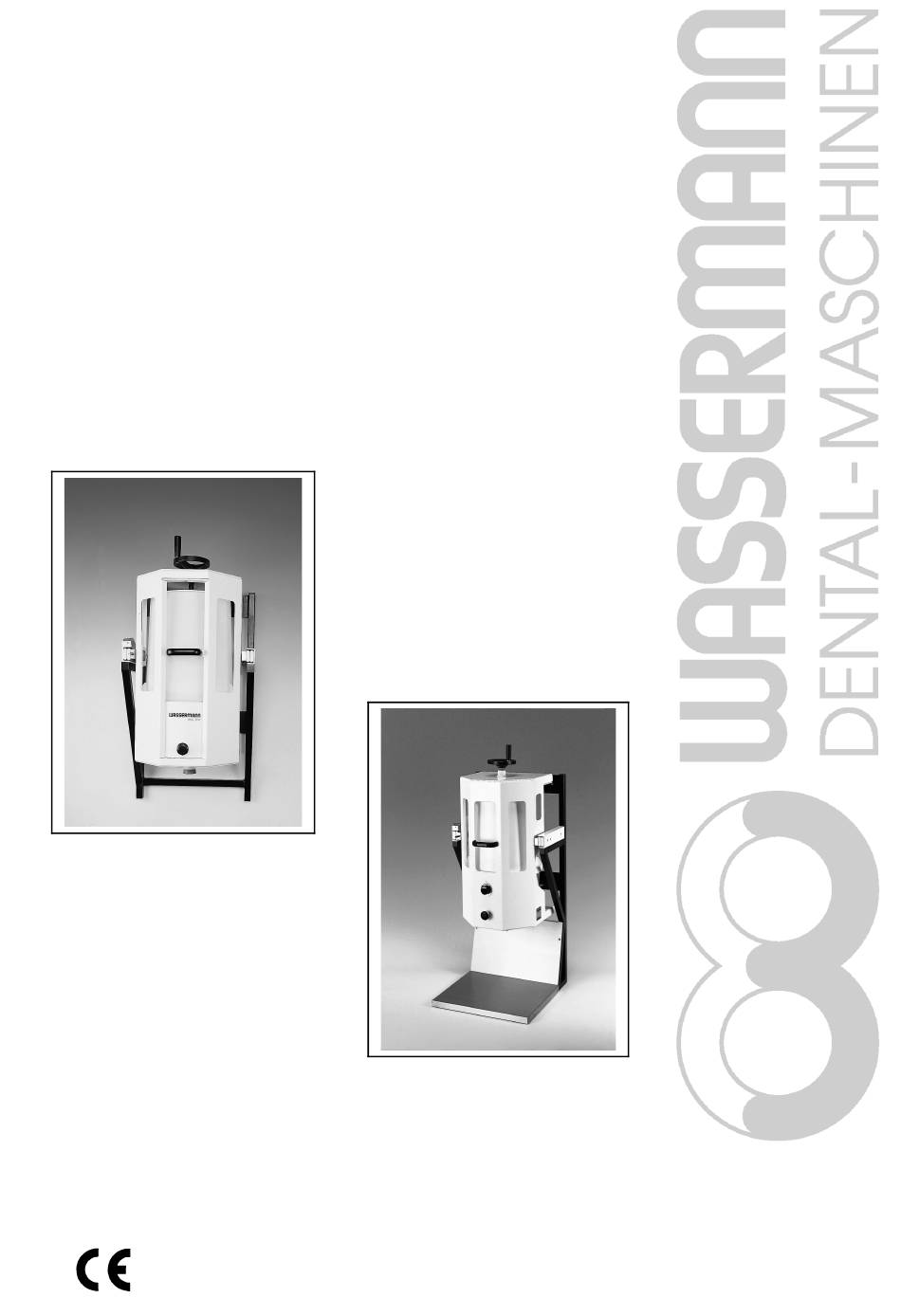

- Page 1 SERVICE MANUAL Plaster Silo WGS-25 T/W Fig 1: WTS 25-W Fig 2: WTS 25-T W ASSE RM ANN DENTAL - MASC HI N EN G m bH...
- Page 2 Dear Customer, we appreciate your decision to select a unit of the Wassermann product range. Wassermann Dental - Maschinen provides the highest quality and latetest technology. To ensure optimum performance for many years and to get familiar with the various functions, please read these service manual carefully before using and always operate the unit accordingly.
-
Page 3: Table Of Contents
8 SERVICING......................8 8.1 C ..........................8 LEANING 8.2 M ........................8 AINTENANCE 8.3 W .........................9 ARRANTY 8.4S ....................9 PARE PARTS AND CCESSORIES 8.5 R ..........................9 EPAIRS 9 SPECIFICATIONS....................10 EC CONFORMITY CERTIFICATE.................11 WIRING DIAGRAM....................12 SPARE PART DIAGRAM WGS-25 W..............13 SPARE PART DIAGRAM WGS-25 T..............14... -
Page 4: Features
1 Features The plaster silo allows the keeping of all kind of plasters, empbedding materials and pounces in a totally dry environment free from dirt and pollution.To retrieve stored material, simply press the knob and, thanks to an electro-vibrating device, the material flows out constantly under close control, free from any lumps due to integrated frequence control. -
Page 5: Safety Instructions
The unit must be operated and serviced according to these service manual. For damages incurred due to negligence of these notes, Wassermann Dental- Maschinen GmbH cannot be held responsible. Warranty and reliability conditions of the terms of sale and delivery of the Wassermann Dental-Maschinen GmbH are not extended by the above mentioned notes. -
Page 6: Before Starting
4 Before Starting Unpacking / Transport − Remove all packing material and place the unit on an even and stable surface. Make sure that all accessories are included (see “Specification”). − Before moving the unit, please make sure that it is disconnected from the power source. -
Page 7: Starting
5 Starting − Connect the power plug to a power outlet (220-240 V / 50/60 Hz). − The unit is now ready for operation. − Remove the rubber stopper at the lower outlet. − Place the storage bin for plaster, embedding material, etc. under the outlet. −... -
Page 8: Troubleshooting / Remedies
7 Troubleshooting / Remedies Symptom / Trouble POSSIBLE CAUSE POSSIBLE SOLUTION No vibrations. Power plug Check the power plug and connected. connect it. Plug connection is not Check the plug connectiion locked. and relock. No plaster comes out. The rubber stopper is not Check the rubber stopper removed. -
Page 9: Warranty
8.5 Repairs All service and repair works should be referred to qualified service personnel only. For replacement, use only original Wassermann parts. The product liability expires if any modifications or alterations have been made by others as well as if non-... -
Page 10: Specifications
- 10 9 Specifications Specifications Plaster Silo WGS-25 T/W: WGS-25 T Item no.: 166998 WGS-25 W Item no.: 166999* Voltage* 220–240 V / 50/60 Hz Power consumption 0.3 A Output 70 W W x H x D /max. D 445 x 1065 x 400 mm / max. 790 mm 445 x 910 x 400 mm / max. -
Page 11: Ec Conformity Certificate
Hiermee wordt bevestigd bovengenoemde machine voldoet voorgeschreven EU normen. Deze verklaring verliest geldigheid als er zonder onze uitdrukkelijke toestemming wijzigen aan de machine worden aangebracht. Place, date: Hamburg, 06.03.2013 Company stamp : Signed: ________________________ Wilfried Wassermann (Managing Director) -
Page 12: Wiring Diagram
- 12 Wiring diagram... -
Page 13: Spare Part Diagram Wgs-25 W
- 13 Spare part diagram WGS-25 W... -
Page 14: Spare Part Diagram Wgs-25 T
- 14 Spare part diagram WGS-25 T... - Page 15 - 15...
- Page 16 WASSERMANN Dental-Maschinen GmbH Rudorffweg 15 – 17, D-21031 Hamburg Tel.: + 49 (0)40 / 730 926 – 0 Fax: +49 (0)40 / 730 37 24 e-mail: info@wassermann-dental.com Internet: http://www.wassermann-dental.com...
