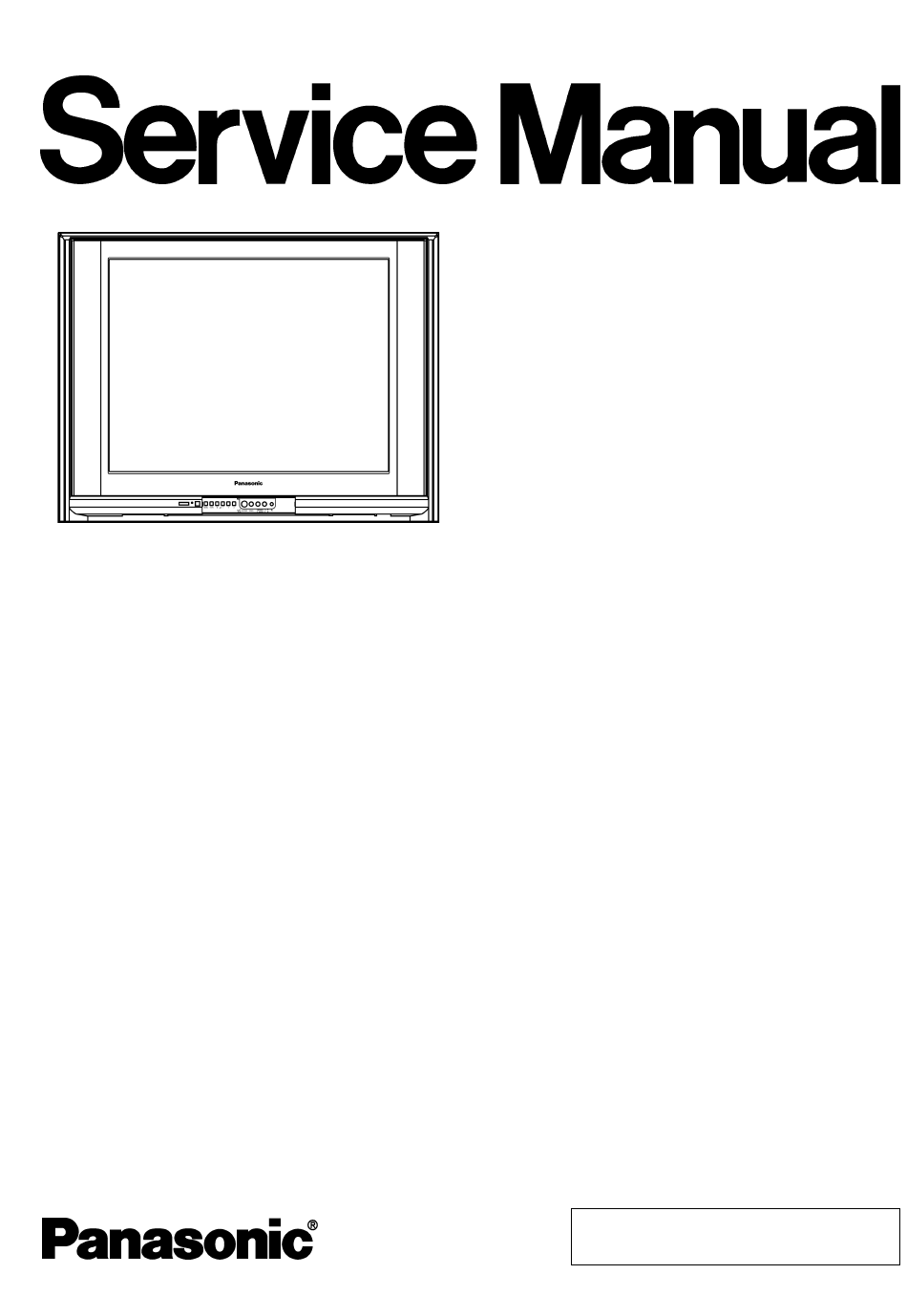

Panasonic TX-34P180RB Service Manual

Specifications
Power Source
Power Consumption
Receiving System
Function
Reception of broadcast
transmissions and Playback
from Video Cassette Tape
Recorders
Playback from Special Disc
Players and Special VCRs
Receiving Channels
VHF BAND
UHF BAND
AC AUTO 110-240 V, 50/60 Hz
130 W
Standby condition : 1.0 W
17 Systems
1 PAL B, G, H
2 PAL I
3 PAL D, K
4 SECAM B, G
5 SECAM D, K
6 SECAM K1
7 NTSC M (NTSC 3.58/4.5 MHz)
15 PAL 60 Hz/5.5 MHz
16 PAL 60 Hz/6.0 MHz
17 PAL 60 Hz/6.5 MHz
Regular TV
2-12 (PAL/SECAM B, K1)
0-12 (PAL B AUST.)
1-9 (PAL B N.Z.)
1-12 (PAL/SECAM D)
1-12 (NTSC M Japan)
2-13 (NTSC M U.S.A.)
21-69 (PAL G,H,I/SECAM G,K,K1)
28-69 (PAL B AUST.)
13-57 (PAL D,K)
TX-34P180RB-
MIDDLE EAST
GP21 Chassis
CATV
Receiving Stereo System
Tuning System
High Voltage
Picture Tube
Audio Output
Headphones
Aerial Impedance
VIdeo/Audio/Component
© 2006 Matsushita Electric Industrial Co., Ltd. All
rights reserved.
distribution is a violation of law.
Order No. MTV0601457CE
Colour Television
13-62 (NTSC M Japan)
14-69 (NTSC M U.S.A.)
S1-S20 (OSCAR)
1-125 (U.S.A. CATV)
C13-C49 (JAPAN)
S21-S41 (HYPER)
Z1-Z37 (CHINA)
4A, 9A (AUST.)
NICAM I, NICAM B/G, NICAM D, A2
(German)
Frequency synthesizer
Auto Search Tuning
POSITION : 100 Position
DIRECT : 125 Position
30.5 ± 1.0 kV at zero beam current
Overall Picture tube measured
diagonally : 72 cm
Viewable Picture tube measured
diagonally : 68 cm
CRT Deflection : 104°
10 W × 2 = 20 W
3.5 mm Plug
75 Ω Unbalanced Coaxial
Unauthorized copying and
