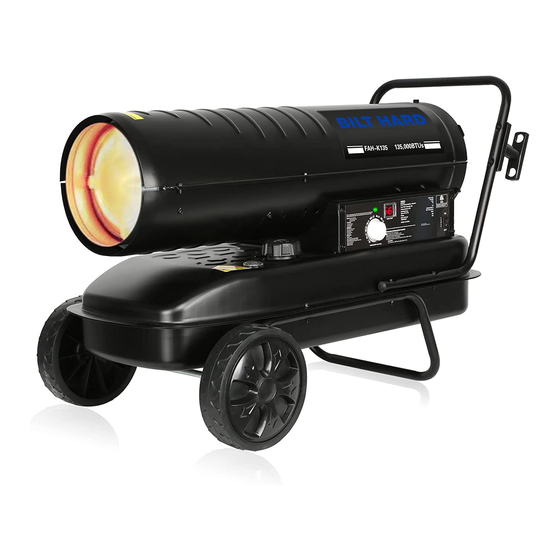

BILT HARD FAH-K80 User's Manual And Operating Instructions

Kerosene(diesel) forced air heaters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Kerosene (Diesel)
User's Manual And
Operating Instructions
Forced Air Heaters
SKU: FAH-K80
SKU: FAH-K135
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
IM IMPORTANT:
Read and understand all of the directions in this manual before assembling, starting, or
servicing the heater. Improper use of this heater can cause serious injury.Keep this manual for future
reference, not suitable for use wood on floors or nearby other combustible materials.
DANGER
GENERAL HAZARD WARNING:
DANGER
Be sure to comply with the instructions and warnings provided with this heater. Failure to follow these
instructions could result in property damage, severe bodily injury, carbon monoxide poisoning or even death.
Call a qualified technician to service this heater if needed.
NOT FOR USE IN NON-ADEQUATELY VENTEILED ENCLOSED SPACES.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAH-K80 and is the answer not in the manual?

Questions and answers

Related Manuals for BILT HARD FAH-K80

Summary of Contents for BILT HARD FAH-K80

  • Page 1 Kerosene (Diesel) User’s Manual And Operating Instructions Forced Air Heaters SKU: FAH-K80 SKU: FAH-K135 RETAIN THIS MANUAL FOR FUTURE REFERENCE. IM IMPORTANT: Read and understand all of the directions in this manual before assembling, starting, or servicing the heater. Improper use of this heater can cause serious injury.Keep this manual for future reference, not suitable for use wood on floors or nearby other combustible materials.

  • Page 2: Table Of Contents

    NEVER LEAVE HEATER Kerosene (Diesel) UNATTENDED WHILE BURNING Forced Air Heaters OR WHILE CONNECTED TO A POWER SOURCE Table of Contents Safety Information Safety information..........2-3 Indicates an imminently hazardous DANGER Features................3 Situation which, if not avoided, WILL Specification..............4 result in death or serious injury.

  • Page 3: Safety Information

    49.21 inch 49.21 inch authorities have jurisdiction. Side 49.21 inch 49.21 inch Front 98.43 inch 98.43 inch Features Figure 1. Features of Model FAH-K80 Figure 2. Features of Model FAH- K135...

  • Page 4: Specification

    NEVER LEAVE HEATER Kerosene (Diesel) UNATTENDED WHILE BURNING Forced Air Heaters OR WHILE CONNECTED TO A POWER SOURCE Specifications Model FAH-K80 FAH-K135 Heat Output 80000 135000 (btu) Fuel Consumption 0.53 0.95 (Gal/Hr) Fuel Tank Capacity (Gal) Pump Pressure 31.0/4.5 38.0/5.5...

  • Page 5: Unpacking

    Remove the heater and all of the packing materials from the shipping carton. NOTE:Save the box and packing materials for future storage. Assembly FAH-K80 FAH-K135 Wheel support frame Wheel ( 2 pieces) Rear Handle Axle Top Handle Screws &...

  • Page 6: Operation

    1.Align the holes in the upper housing with the 2 holes in the handle as shown in Figure 6. 2.Insert and tighten screws securely with screw driver. Figure 6. Handle Mounting, Models FAH-K80 ASSEMBLING CORDWRAP 1.Insert tabs on cord wrap into slots in shell support, lining up the holes on the cord wrap with those on the side cover.

  • Page 7: Fuels

    -101 to 200 feet (30.8 to 61 meters ), use 14 AWG wire. 4.Turn thermostat control knob to desired temperature setting (FAH-K80/K135). The setting range is from 40°F to 110 °F. Push the power switch to the “ON” position(See figure 8). The power indicator lamp and room temperature display (FAH-K135 only ) will light and the heater will start.

  • Page 8: Long Term Storage

    Figure 9. Drain Plug Removal LONG TERM STORAGE Drain Fuel Tank 1.For models FAH-K80 drain fuel through the fuel cap opening using an approved siphon. For models FAH-K135 drain fuel through the Drain Plug at the bottom of the fuel tank.

  • Page 9: Maintenance

    NEVER LEAVE HEATER Kerosene (Diesel) UNATTENDED WHILE BURNING Forced Air Heaters OR WHILE CONNECTED TO A POWER SOURCE NOZZLES: Store heater in a dry, well-ventilated area Nozzles should be cleaned or replaced at least once per heating Be sure that the storage area is free of dust and corrosive season.
  • Page 10 Clean and re-gap every 600 hours of operation, or replace as needed. After removing the spark plug, clean the terminals with a wire brush. Re-gap the terminals to 0.35cm Figure 15. Photocell position for FAH-K80 Figure 13. Spark plug Replacement FUEL FILTER:...
  • Page 11 While heater is operating, turn relief valve clockwise to increase. Counterclockwise to decrease (see Figure 17). Use flat blade screw driver to turn valve. Correct pump pressure is as follows: Model# Pump Pressure(Kpa/Psi) FAH-K80 31.0/4.5 FAH-K135 38.0/5.5 Tolerance 士 10% For best measurement of pressure, test with full tank of fuel.

  • Page 12: Wiring Diagrams

    NEVER LEAVE HEATER Kerosene (Diesel) UNATTENDED WHILE BURNING Forced Air Heaters OR WHILE CONNECTED TO A POWER SOURCE Wiring Diagrams Figure 18. Model FAH-K80 Figure 19. Model FAH-K135...

  • Page 13: Troubleshooting

    NEVER LEAVE HEATER NEVER LEAVE HEATER Kerosene (Diesel) UNATTENDED WHILE BURNING Forced Air Heaters OR WHILE CONNECTED TO A POWER SOURCE Troubleshooting Guide: Air Heaters Problem Possible Cause Solution Heater fires, but main PCB shuts 1.Incorrect pump pressure. 1.Adjust pump Pressure (page 11) heater off after a short period of 2.Dirty input output or lint filter 2.Clean/replace air filter (page 9)
