VI. REMOVING IMPACTOR FROM FRAME
To service the Impactor, it is necessary to remove the Impactor from the Rolling Cart.
The following Instructions cover the complete and correct method of performing this
operation refer to SECTION XI: Impactor Exploded View.
IMPORTANT
1. Disconnect air supply from Throttle Valve.
2. Remove/cut-out Air Hose assembly (PN: 32-50018) at Air Inlet of Impactor.
3. Remove Nipple, Washer, Elbow and Hose Barb from the Impactor's Air Inlet
boss.

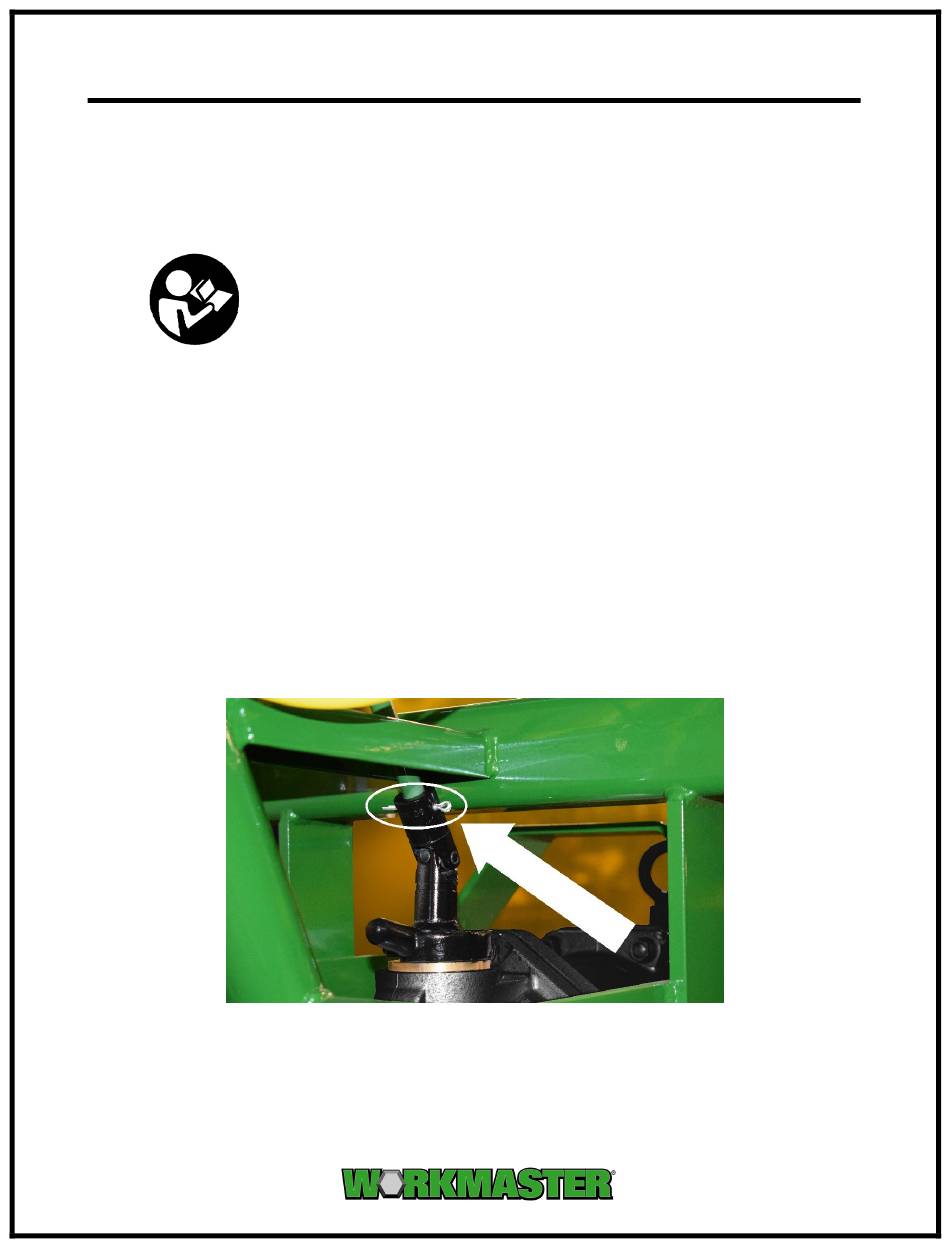

4. Disconnect the Forward/Reverse Lever at the Universal Joint Connector by
removing Cotter Pin.
5. Disconnect Bolt and Washer on opposite side of the Impactor's Air Inlet.
6. Brace the Gate Opener's Frame and the front, under-side of Impactor with a
wooden block or like support.
These Instructions detail complete repair of the
Impactor and its component parts. Some
assemblies or components do not require tear-
down inspection and repair. Overall condition of
the Impactor will allow mechanic discretion on
extent of repair.
