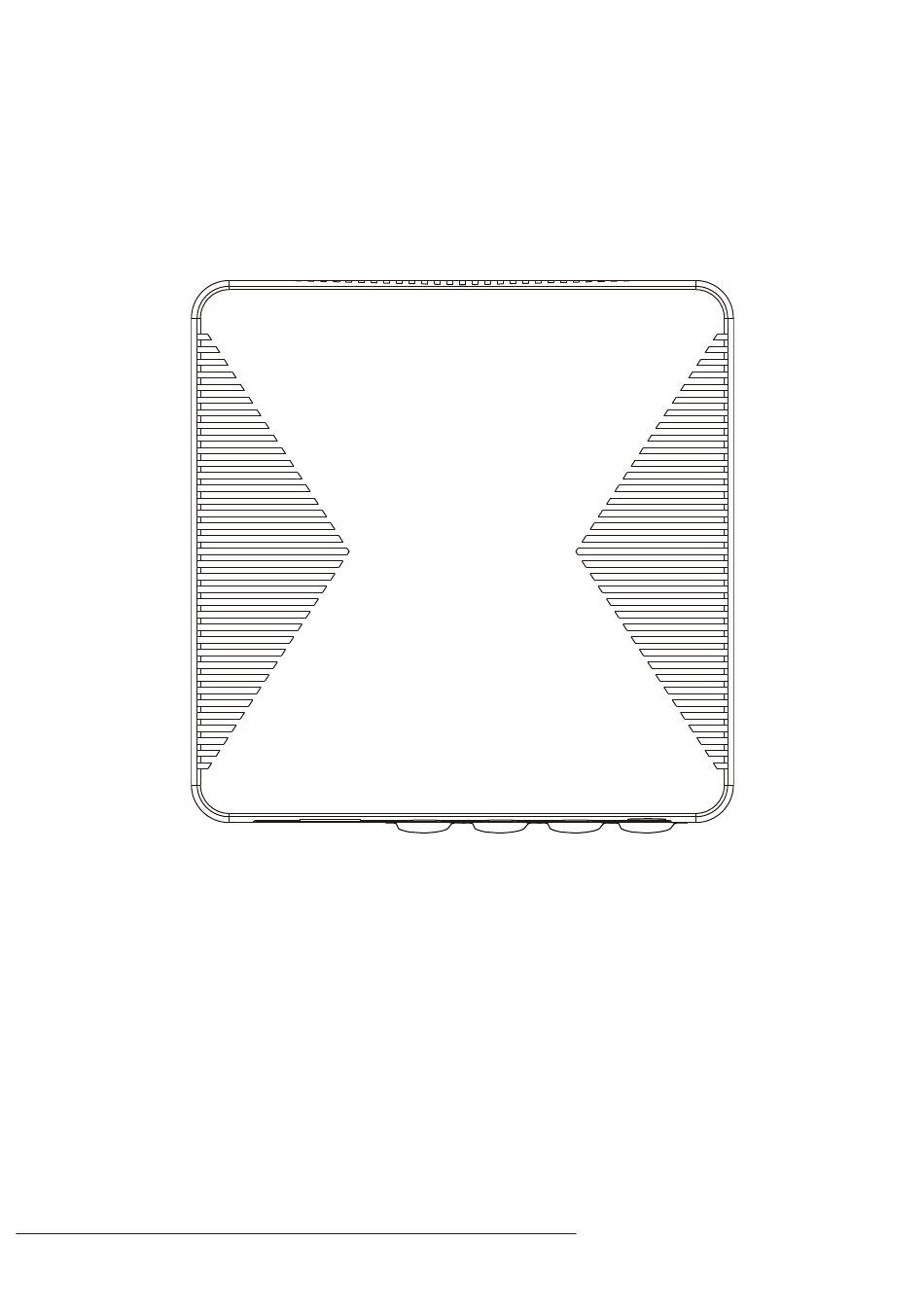

- Page 1 FDS315 Fall Detection Sensor Quick Start Guide...
-
Page 2: Safety Handling
Safety Handling WARNING: Failure to follow these safety notices could result in fire, electric shock, other injuries, or damage to the Fall Detection Sensor and other property. Read all the safety notices below before using the Fall Detection Sensor. • Avoid high humidity or extreme temperatures. •... -
Page 3: Technical Specifications
Technical Specifications Wireless Connectivity ZigBee • 2.4GHz IEEE 802.15.4 ZigBee Profile • ZigBee 3.0 • Operating frequency: 2.4GHz • Internal PCB Antenna RF Characteristics • Range outdoor: 100m (Open area) Physical Specifications Operating Voltage • Micro-USB Detector • 60GHz Radar •... - Page 4 Welcome FDS315 Fall Detection Sensor can detect the presence, even if you are asleep or in a stationary posture. It can also detect if the person falls, so you can know the risk in time. It can be tremendously beneficial in nursing homes to monitor and link with other devices to make your home smarter.
- Page 5 Installaion Important safety information! • Do not touch the terminals of the device while testing. • Turn off all the power supply for this equipment before installing. • Make sure that the power supply is off before connecting or disconnecting it to an auxiliary device. •...
-
Page 6: Installation
Installation: 1) Install the back cover of the wall stand as below. 2) Align the wall stand with the wall sticker and screw them together using gear. Note: The arrow on the wall sticker need to point up. - Page 7 3) Screw the mounting bracket into the wall stand. 4) Locate the hooks of the mounting bracket and line up the hooks with the mounting holes on the sensor, then fit the hooks into the mounting holes as below picture.
- Page 8 5) The recommended height for installing is 1.6M, which can be adjusted according to the reality (adjustment range should not exceed +/-10CM). And wall stickers are not suitable for sticking on lime wall, brick, cement wall and wallpaper. 1.6m 6) When using the sleep monitoring function, the sensor should be installed on the wall at the head of the bed.
-
Page 9: Get To Know Your Device
8) Gently adjust the gear adjuster to feel the gear of the wall stand. Adjust the gear of the wall stand to the first gear (about 20 degrees) and make sure the stand is open about 80mm . After that, tighten the gear adjuster. - Page 10 Reset Button Reset Button Reset: Press and hold the reset button for 10 seconds until the LED light flashes red three times. LED indicator The status gives the following information: LED Color Status What it means No light No presence detected Always-on Presence detected Green...
-
Page 11: Configure Network
Configure Network 4.1 Before starting, you will need: • A ZigBee Gateway. 4.2 Adding to the gateway's network : Follow the steps below to join sensor to the gateway's network: 1. Power on the sensor through Micro-USB, the LED indicator will start flashing green, which means it is ready to join the network.
