Summary of Contents for Global BDR-650 V

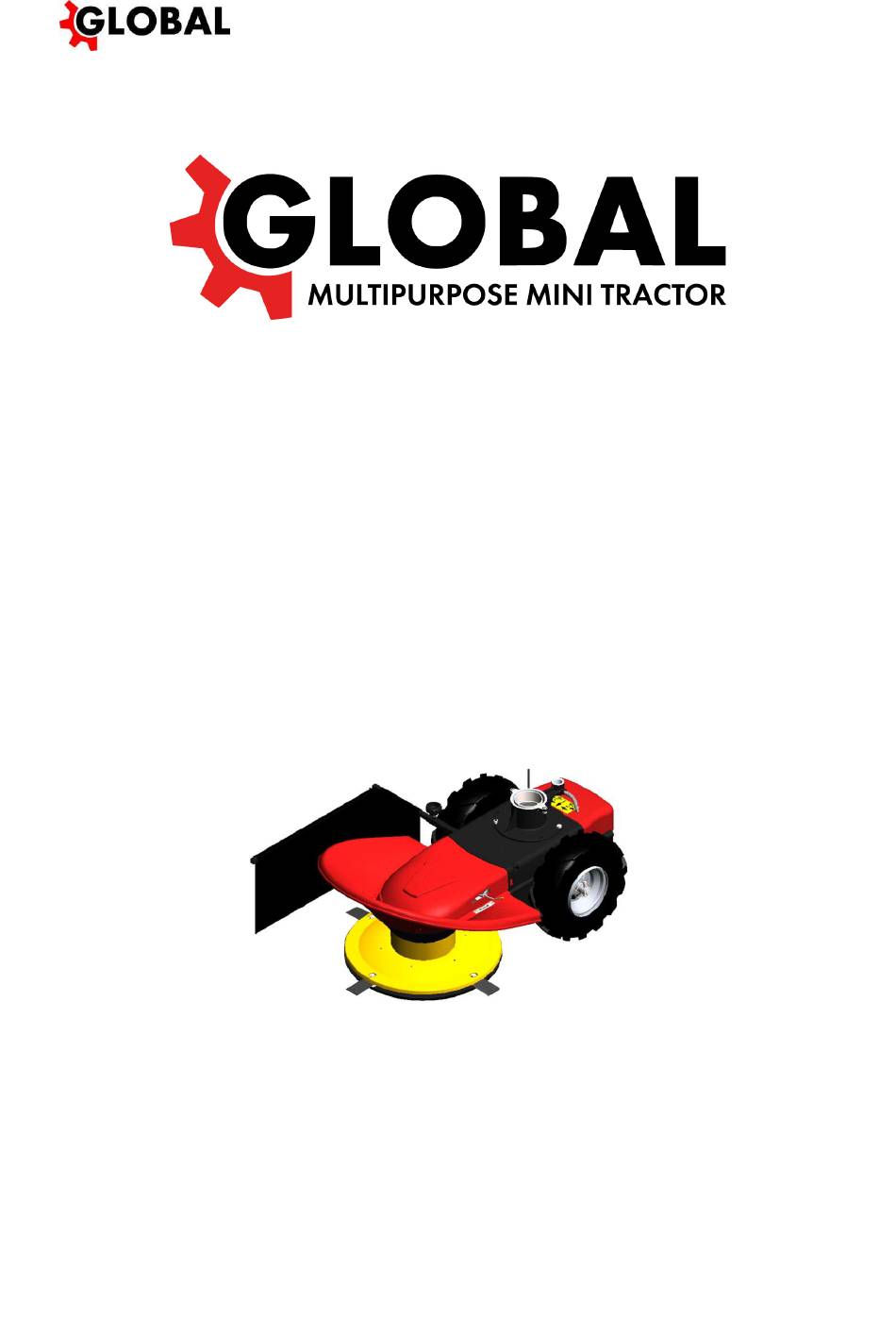

- Page 1 Drum Mower DRUM MOWER BDR-650 V Instructions for use...
-
Page 2: Table Of Contents
Drum Mower Contents 1 Introduction ....................................2 1.1 General Notification ................................2 2 Operational Safety ..................................3 2.1 Safety Regulations................................. 3 2.2 Noise and Vibrations Levels ..............................4 2.3 Safety Pictograms ................................. 4 3 Basic Information ..................................4 3.1 Use of the Machine................................4 3.1.1 Technical Data................................ -
Page 3: Operational Safety
Drum Mower If you see this symbol in the manual, carefully read the statement following after it! This international safety symbol indicates important instructions concerning safety. If you see this symbol, be aware that there is a risk of injury to you or other persons and carefully read the following statement, please. Table 1 : Symbols 2 Operational Safety The machine is designed to protect the operator as much as possible against any flying pieces of mowed growth. -
Page 4: Noise And Vibrations Levels
Drum Mower Any repairs, adjustments, lubrication, and cleaning of the machine must be carried out when the machine is at a standstill and its spark plug connector is disconnected. 2.2 Noise and Vibrations Levels BDR-650V PJGCV190 Declared acoustic pressure emission level at the operator's site 84 dB + 2 dB Guaranteed sound power level... -
Page 5: Description Of The Machine And Its Parts
Drum Mower 3.2 Description of the machine and its parts Fig. 2 The drum mower ( ) is built on its steel frame, to which all the critical components of the machine are attached. The drive unit is attached to the mower flange. On the left hand side of the handlebar, there is the travel pulley lever, which controls the machine's forward travel. -
Page 6: Machine Start
Drum Mower Start the engine. If the motor is cold, leave it at the maximum speed for approx. 1 minute to warm up. Use the accelerator lever to set the minimum engine speed (idle). Pull disc drive pulley lever towards the engine and lock it into the cut out plate ( Fig. -
Page 7: The Machine Working Area
Drum Mower Extrude the V-belt out of the axle dual pulley to the left into the groove in the frame next to the dual pulley. Extrude the V-belt out of the axle dual pulley to the left into the groove in the frame next to the dual pulley. Slide the V-belt forward for about 1.5 cm, and then move it to the wedge groove in the axle pulley per the selected gear. -
Page 8: Maintenance, Care, Storage
Drum Mower 5 Maintenance, Care, Storage Owing to the weight of the machine, all maintenance and adjustment shall be performed by two people. To secure a long-term satisfaction with our product, it is necessary to provide it with due care and maintenance. By providing regular maintenance you will prevent its rapid wear and you will secure correct operation of all its parts. -
Page 9: Belt Gears
Drum Mower Note: In the case of any unprofessional repair of blades using other than original parts, the manufacturer is not liable for any damages on the machine or caused by your machine. The blade is embossed with a sign that indicates the manufacturer and is a check mark that the blade is an original spare part. -
Page 10: Servicing Intervals
Drum Mower If you are not sufficiently manually skilled, have the operations completed by an authorized service centre, please. 5.5 Servicing intervals Activity Before mowing During the season Before storage Washing As needed Removing dirt and mowed growth debris After every mowing Blade sharpening As needed Blade inspection and storage... -
Page 11: Machine Washing And Cleaning
Business (order) number: CN° 4399 Table 8 : Nameplate – example 6 Address of the Supplier KNIGHTS a.s. Phone: (+420) 325 607 111 Ke Kapličce 387 Fax: (+420) 325 607 264 252 41 Dolní Břežany E-mail: knights@knights.cz Czech Republic Web: www.global-tractor.com... -
Page 12: Attached Illustrations
Drum Mower 7 Attached illustrations Fig. 1: Unpacking and assembling the machine 1) Grip position at the rear 2) Spacer beam 3) Disassembled disc cover 4) Machine grip position in the front(cutting disc) 5) Bag with manuals/instructions 6) Side and rear covers 1) Disc drive pulley lever 2) Travel clutch lever 3) Side cover fixing screw... - Page 13 Drum Mower Lever position "OFF"= "0" Lever position "OFF"= The pin is locked. The machine "0" is not moving. The lever is unlocked. The cutting disc is not rotating. Lever position "ON"= "1" Lever position "ON"= The pin is unlocked. The "1"...
- Page 14 Drum Mower Fig. 8 : Adjustment of travel tension pulleys, control lever The rivet positions for a 4-stroke drive unit (set during production) The rivet positions for a 2-stroke drive unit (turn the rivets by 180°) Fig. 9 : Position of rivets Fig.
- Page 15 Drum Mower 1) Upper gearboxcover 2) Lower gearboxcover 3) Plastic nut 4) V-belt of the cutting disc drive 5) Gear drive V-belt 6) Axle drive V-belt 7) Drive dual pulley (gearbox) 8) Driven dual pulley (axle) 9) Cutting disc drive belt guide pins Fig.
- Page 16 Drum Mower Fig. 15 : Safety pictogram – Rotation direction arrow Position on the machine Position on the machine Position on the machine Fig. 17 : Safety pictogram – Disc spinning Fig. 16 : Safety pictogram – Machine travel...
