AL08-3 & AL08-4 Alexander Square Cup Attachment
for use with Chairs, Armchairs, Settees & Beds
Fitting & User Instructions

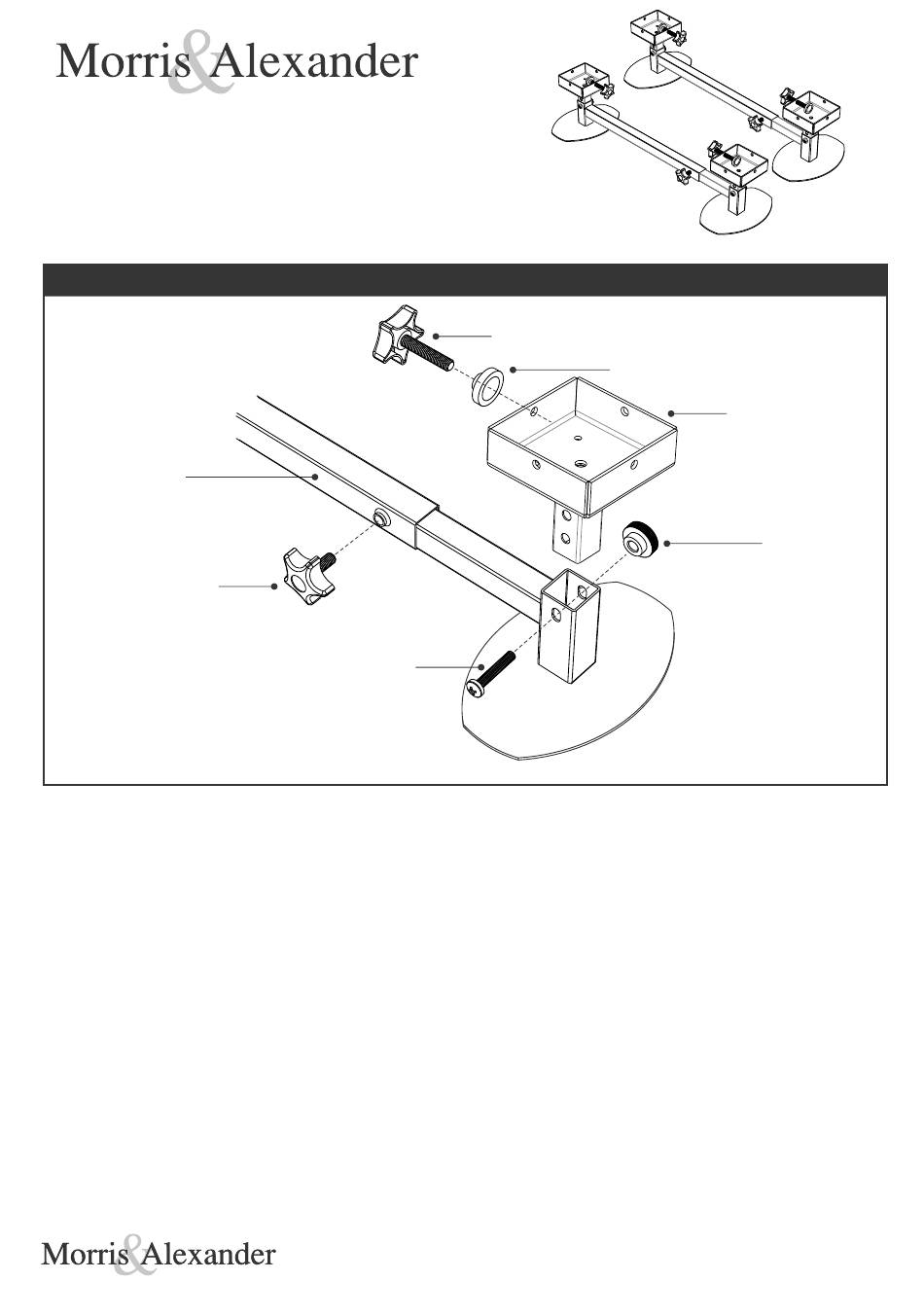

IDENTIFICATION OF PARTS (QUANTITY PER PAIR)
Frame Assembly
Short Hand Wheel (x2)
These instructions apply to chairs, settees and beds. The raiser must be fitted from front to back for chairs & settees
and width ways (across the head and foot) of a bed.
Max Weight Loading - 635kg (100 stone) per pair. Each extra frame used allows an extra 317kg (50 stone) of weight
loading.
Please read these instructions carefully before installation.
User precautions:
This product is only to be installed for the purpose for which it is intended (for raising chairs, armchairs, settees &
•
beds).
Ensure that the raised furniture is stable before use.
•
This raiser is for indoor use only.
•
Check tightness of hand wheels and fixings periodically.
•
Clean with a damp cloth. Use non-abrasive detergent and dry thoroughly.
•
For larger p ieces of furniture you may require EXT-B2 Extender Bars to safely span the furniture.
•
Notes:
CHAIRS/SETTEES - Extra stability can be achieved by raising the rear of the furniture higher than the front.
•
Chair, Settee and Bed Raising Specialists
Height Fixing Screw (x4)
Morris and Alexander Ltd, Wymans Way, Fakenham Industrial Estate, Fakenham, Norfolk, NR21 8NT
Tel: 01328 855669 Fax: 01328 855256. www.morrisandalexander.com.
Long Hand Wheel (x4)
Leg/Castor Protector (x4)
Issue 1
Raiser Cup (x4)
Height fixing
Plastic Nut (x4)
Certified to ISO 9001
