Fitting & User Instructions for:
Recliner and Riser Recliner
Chair Raiser.
CR-C3 & CR-C3S
Chair, Settee and Bed Raising Specialists

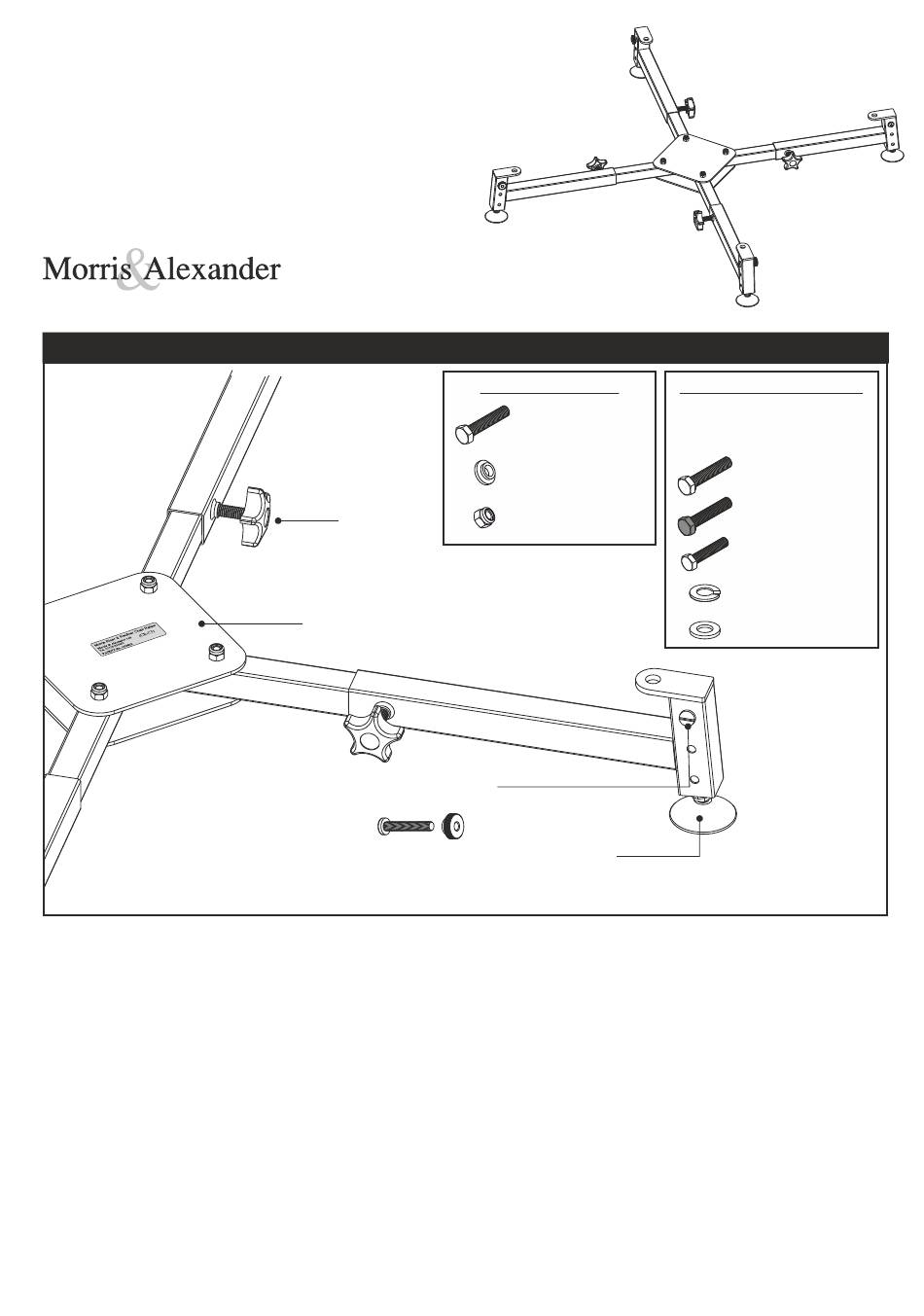

IDENTIFICATION OF PARTS
These instructions apply to the raising of recliner & riser-recliner chairs with castors or feet.
Max Weight Loading - 508 Kg (80 Stone).
Please read these instructions carefully before installation.
User precautions:
This product is only to be used for the purpose for which it is intended (for increasing the height of a Recliner or
•
Riser Recliner Chair).
Ensure that the raised furniture is stable before use.
•
This raiser is for indoor use only.
•
Check tightness of hand wheels and fixings periodically.
•
Clean with damp cloth. Use a non-abrasive detergent and dry thoroughly.
•
Hand Wheel
Square Plate
Height adjustment screw
and nylon thumbwheel
Wymans Way, Fakenham Industrial Estate, Fakenham, N orfolk, NR21 8NT
T el: 01328 855669 Fax: 01328 855256. www.morrisandalexander.com
Page 1 of 3
Recliner Fixing Kit
M6 x 25 Screw (x4)
Shouldered spacer (x4)
M6 nyloc nut (x4)
Adjustable foot
Iss. 02
Riser Recliner Fixing Kit
NOTE:
3 types of screw are supplied to
accommodate chair manufacturers
thread sizes.
M10 Screw (x4)
3/8 UNC Screw (x4)
5/16 UNC Screw (x4)
M10 and 5/16 Spring
Washer (x4)
5/16 Plain Washer (x4)
