Morris and Alexander CR-A Fitting & User Instructions

Fixed height and adjustable height raisers

Morris Alexander

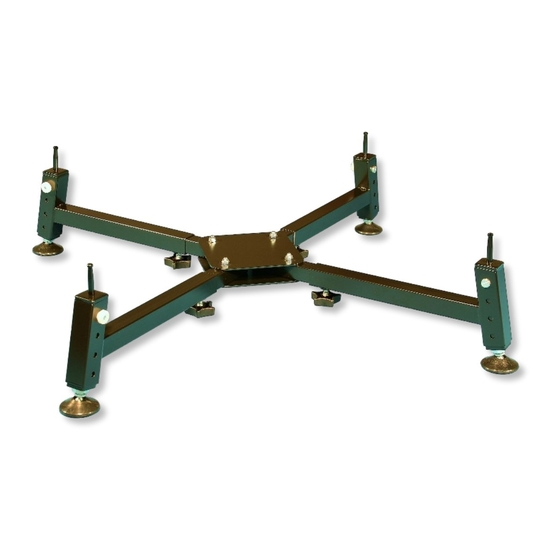

CR-A Fixed Height Raiser

CR-C2 Adjustable Height Raiser

Fitting & User Instructions

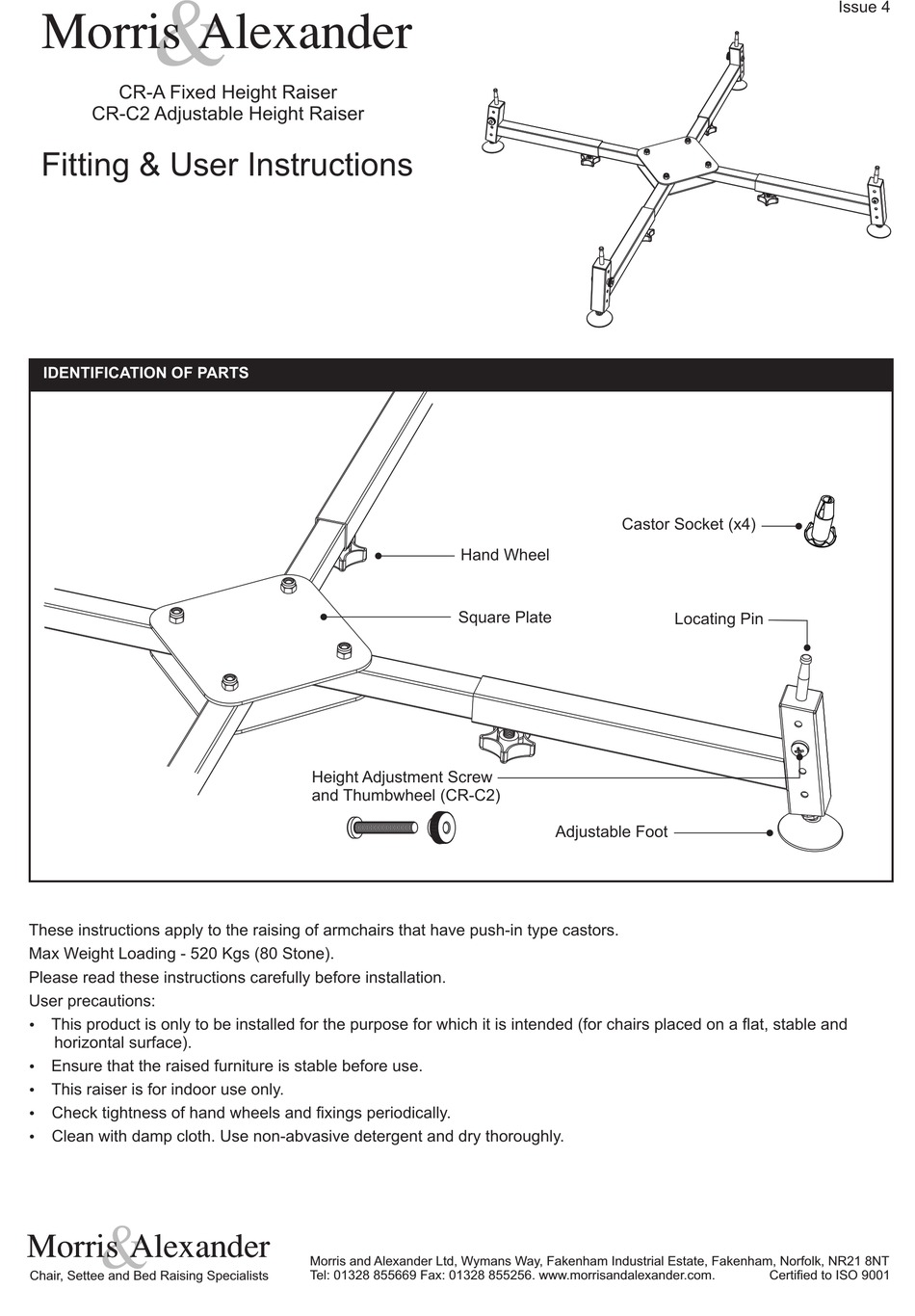

IDENTIFICATION OF PARTS

These instructions apply to the raising of armchairs that have push-in type castors.

Max Weight Loading - 520 Kgs (80 Stone).

Please read these instructions carefully before installation.

This product is only to be installed for the purpose for which it is intended (for chairs placed on a flat, stable and

horizontal surface).

Ensure that the raised furniture is stable before use.

This raiser is for indoor use only.

Check tightness of hand wheels and fixings periodically.

Clean with damp cloth. Use non-abvasive detergent and dry thoroughly.

Morris Alexander

Chair, Settee and Bed Raising Specialists

Hand Wheel

Square Plate

Height Adjustment Screw

and Thumbwheel (CR-C2)

Morris and Alexander Ltd, Wymans Way, Fakenham Industrial Estate, Fakenham, Norfolk, NR21 8NT

Tel: 01328 855669 Fax: 01328 855256. www.morrisandalexander.com.

Castor Socket (x4)

Locating Pin

Adjustable Foot

Issue 4

Certified to ISO 9001

Table of Contents

Do you have a question about the CR-A and is the answer not in the manual?

Page 1 Clean with damp cloth. Use non-abvasive detergent and dry thoroughly. Ÿ & Morris Alexander Morris Alexander Morris and Alexander Ltd, Wymans Way, Fakenham Industrial Estate, Fakenham, Norfolk, NR21 8NT Chair, Settee and Bed Raising Specialists Tel: 01328 855669 Fax: 01328 855256. www.morrisandalexander.com. Certified to ISO 9001...
Page 2 Push all locating pins firmly home and centralise the square plate in relation to feet before tightening hand wheels (fig 2a). For CR-A position feet to required height by screwing the foot in or out. Tighten the locking nut on the foot before finishing.

Cr-c2
