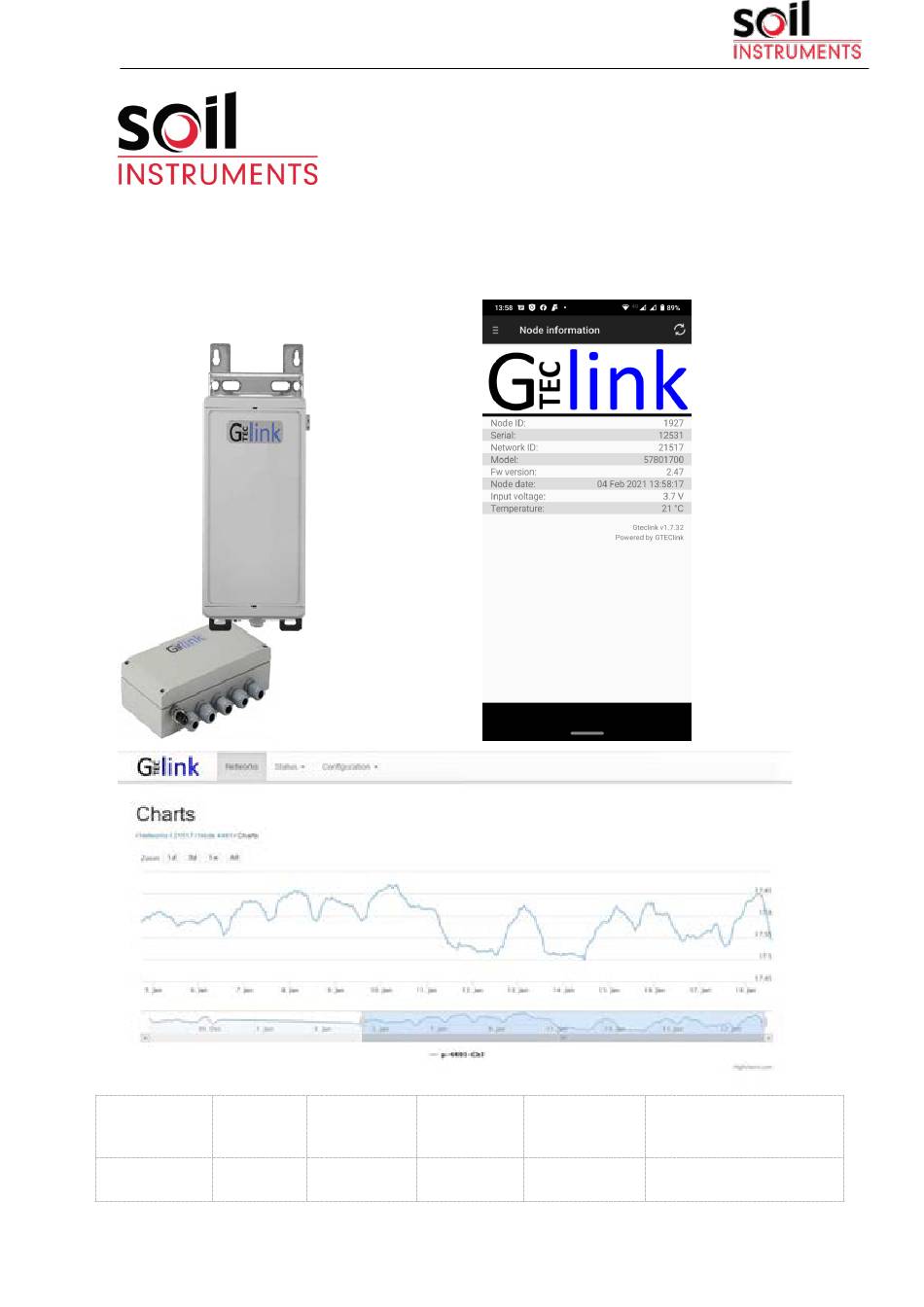

- Page 1 Title: MAN 266, GTecLink Data loggers User Manual GTecLink Data Logger User Manual Man266 1.0.1 19/01/2021 Philip Day Gary Pickles Richard Colegate Manual No. Revision Date Originator Checked Authorised for Issue Rev 1.0.1 Page 1 of 32...
-
Page 2: Table Of Contents
Title: MAN 266, GTecLink Data loggers User Manual 1 General Information ....................3 2 Data Logger Installation ..................3 Equipment ......................3 Powering the Data Logger................... 4 Connecting Sensors .................... 5 Safely Closing the Data Logger ................6 Data Logger Mounting ..................8 3 Data Logger Configuration ................... -
Page 3: General Information
Thank you for choosing the GTecLink Data logger. This manual has been written to provide you with relevant information and to guide you in best practice when using a GTecLink Data logger in order for you to gain the most from our product. -
Page 4: Powering The Data Logger
Title: MAN 266, GTecLink Data loggers User Manual 2.2 Powering the Data Logger The data logger is shipped closed and without batteries installed. In order to initialise it, the user should follow these steps: Open the data logger (using a 2.5 mm Allen key) following the recommended positions (Figure 1) in order to avoid damaging the lateral gore valve. -
Page 5: Connecting Sensors
Title: MAN 266, GTecLink Data loggers User Manual Check that power switch (SW A, Figure 3) is in the correct position. USB: the data logger is powered by the USB cable connected to any Android device or an external power source BATT (default): the data logger is powered by the batteries. -
Page 6: Safely Closing The Data Logger
Close the cover by cross-screwing to the indicated torque 2.5 N.m. The GTecLink family of data loggers have undergone water tightness testing by an external laboratory and is rated IPX7 (1 meter for 30 minutes) and IPX8 for extended immersion (1 meter for 7 days). - Page 7 Title: MAN 266, GTecLink Data loggers User Manual ● A piece of rubber cord to seal the unused cable glands is provided in each box, cut as required. ● The antenna is mounted. If it is not, the antenna connector should be covered with a cap.
-
Page 8: Data Logger Mounting
All GTecLink data loggers are p r o t e c t e d against l i g h t n i n g a n d... -
Page 9: Data Logger Configuration
Note: Battery usage may be required as some Android devices may not be able to power some sensors. The GTecLink app s t a r t s up once the device has been conne cte d to the data logger using the USB-OTG cable, manual start up is not necessary. -
Page 10: Gteclink Main Menu
Title: MAN 266, GTecLink Data loggers User Manual 3.2 GTecLink Main Menu Node info: Basic information about the node (version, ID, temperature, etc.). Sensors data: Access to real time sensor readings and downloaded data stored in the node. Node Configuration: Access this menu to configure the node. -
Page 11: Sensor Configuration
T a b l e s , Number of nodes, sampling rate and Slot time chapters in the Gateway User Guide. Each type of GTecLink data logger has its own sensor configuration parameters. For more information about the configuration of each sensor, go to the corresponding data logger section. - Page 12 Title: MAN 266, GTecLink Data loggers User Manual Vibrating Wire Nodes Only activate the channels that are going to be connected to a sensor and choose the sweep fr e que nc y expected for each sensor (according to the sensor User manual).
- Page 13 Title: MAN 266, GTecLink Data loggers User Manual GeoSmart/Smart IPI Pro Nodes Choose the GeoFlex communication protocol among the options available. Select Auto Setup. The resulting r e a d i n g file will create a column f o r each a d d r e s s .
-
Page 14: Sensors Data
Title: MAN 266, GTecLink Data loggers User Manual 3.4 Sensors Data The “Sensors data” s c r e e n d i s p l a y s the c u r r e n t r e a d i n g s o f sensors connected to the data logger. - Page 15 To modify these settings, Radio must be enabled again. The network size is the number o f nodes (data loggers and GTecLink wireless sensors). We strongly recommend initially setting it to the final number of nodes that the wireless network will have since this parameter determines the available sampling rates.
-
Page 16: Radio Signal Coverage Test
Title: MAN 266, GTecLink Data loggers User Manual 3.6 Radio Signal Coverage Test This i s t he final s t e p in n o d e configuration. The a p p performs a signal coverage test to check the quality of communication with the gateway. - Page 17 Title: MAN 266, GTecLink Data loggers User Manual By clicking the “ Next” button, GTecLink will run an O nli ne test. For the r e s u l t s o f this test to b e immediately displayed on the Android device, the gateway and the Android device must also be connected to the Internet.
-
Page 18: Test Results Interpretation
Title: MAN 266, GTecLink Data loggers User Manual Radio signal coverage performed at the end of the datalogger setup (using the Setup wizard). 3.7 Test Results Interpretation The results displayed are listed for each Spreading F a c t o r (SF). The SF represents a way of modulating data. -
Page 19: Gteclink Data Loggers
This reading should be compared with the sensor r e adi n g at installation with a portable r e a d o u t u n i t before connecting to the GTecLink data logger. Note that some configuration is required during installation. -
Page 20: Barometric Measurements
Title: MAN 266, GTecLink Data loggers User Manual 4.1.2 Barometric Measurements The data l o g g e r includes a barometer. It is important to avoid placing the data logger inside any type of container. This would affect correct readings by the barometer through the breather valve. -
Page 21: Battery Lifespan
Title: MAN 266, GTecLink Data loggers User Manual 4.1.3 Battery Lifespan The following table provides the battery l i f e s p a n indicated p e r channel ( Table 2). Bear in mind t h a t consumption v a r i e s d e p e n d i n g on the sensor used, sampling rate a n d e n v i r o n m e n t a l conditions. -
Page 22: Data Storage
Title: MAN 266, GTecLink Data loggers User Manual 4.1.5 Data Storage The internal node h a s 4 MB of memory. The 5-channel data logger connected to five sensors stores up to 73,500 readings. The 1-channel data logger stores up to 200,000 readings. -
Page 23: Digital Data Logger (Geo-Smart/Smart Ipi Pro)
Title: MAN 266, GTecLink Data loggers User Manual 4.2 Digital Data Logger (Geo-Smart/Smart IPI Pro) 4.2.1 Sensor Connection The Digital data logger supports different sensor models by default (RS485 port): ● GeoSmart In-Place Inclinometers ● Smart IPI Pro In-Place Inclinometer The Digital data logger can power and read 10 GeoSmart sensors and 30 Smart IPI Pro sensors with the standard configuration. -
Page 24: Battery Lifespan
Title: MAN 266, GTecLink Data loggers User Manual 4.2.2 Battery Lifespan The following table provides the indicative battery lifespan per channel (Table 4). Bear in mind that consumption v a r i e s depending o n the sensor used, sampling rate and environmental conditions. -
Page 25: Data Storage
Title: MAN 266, GTecLink Data loggers User Manual Figure 48: View of different protocols on Digital node sensor configuration To configure radio communication of the data logger, see section 1.3 of this manual. 4.2.4 Data Storage The data logger has capacity for up to 90,000 readings from the i n c l i n o m e t e r s , w h i c h are two-axis inclinometers w i t h temperature variation calibration, grouped by 5 sensors (Table 6). -
Page 26: Analog Data Logger
Title: MAN 266, GTecLink Data loggers User Manual 4.3 Analog Data Logger 4.3.1 Sensor Connection The Analog data logger supports seven different sensor models that can be connected independently to four different channels (Figure 49): ● Voltage (+/- 10 V peak to peak) ●... - Page 27 Title: MAN 266, GTecLink Dataloggers User Manual Sensor wiring is indicated in the Android configuration app, once the type of sensor to be connected to the channel has been selected (Figure 50). Figure 50: View of the wiring of different types of Analog sensors, indicated in the Android Configuration App.
-
Page 28: Battery Lifespan
Title: MAN 266, GTecLink Dataloggers User Manual 4.3.2 Battery Lifespan The following tables provide the indicative battery lifespan for the Analog data logger, (Table 7 a, b and c) depending on the type of sensor, the warm up time and the sampling rate. - Page 29 Title: MAN 266, GTecLink Dataloggers User Manual Sensor features Channels & sampling Voltage Voltage Voltage Voltage @12V@24mA @12V@24mA @24V@24mA @24V@24mA Warm up time 1 second 5 seconds 1 second 5 seconds 1 CH 5 min 5 months 2.5 months 1.5 years 2.5 months...
- Page 30 Title: MAN 266, GTecLink Dataloggers User Manual Sensor features Channels Potentiome & FWB@5V FWB@5V@ Potentiometer Thermistor@5V ter@5V@1.5 PT100 sampling @0.7 kΩ 1.4 kΩ @5V@5 kΩ @3 kΩ kΩ 1 CH 5 1.5 years 1.5 years 1.5 years 1.5 years 1 year...
-
Page 31: Configuration
Title: MAN 266, GTecLink Dataloggers User Manual 4.3.3 Configuration Configuration requires specifying the excitation power voltage and the warm up time for the sensors that need power supply (voltage and current loop sensors). For other sensors, 5V excitation supply is present in all channel connectors. -
Page 32: Data Acquisition
The Android device allows these CSV files to be opened with downloaded applications such as e-mail or cloud apps. Files are also stored o n the device memory, on the SD Card, in the GTecLink folder GTecLink application: Readings dump to the Android device.
