MTD 19A30020OEM Installation Manual

Model 19A30020OEM front bumper kit is designed for use with
select lawn tractors. Refer to your lawn tractor's Operator's
Manual to assure compatibility.
Carton Contents
Before beginning installation, remove all parts from the carton to
make sure everything is present. Carton contents are listed below
and shown in Figure 1-1. Part numbers are shown in parentheses.

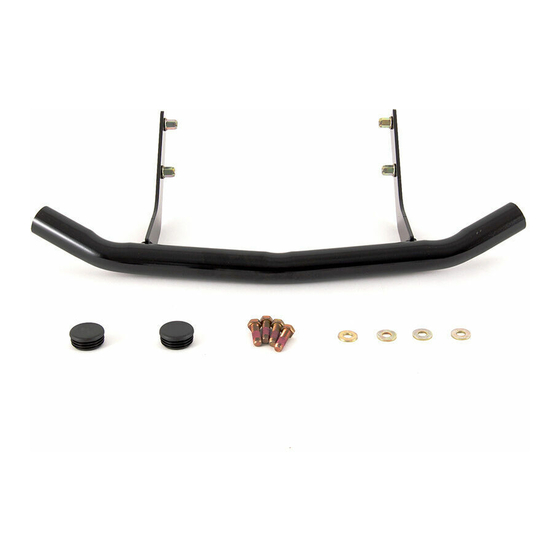

• Two Bumper Caps (731-08049A)
• One Bumper Assembly (683-05155)
• Four Hex Flange Screws (710-06012A)
Printed In USA
I
nstallatIon
Front Bumper Kit — 19A30020OEM

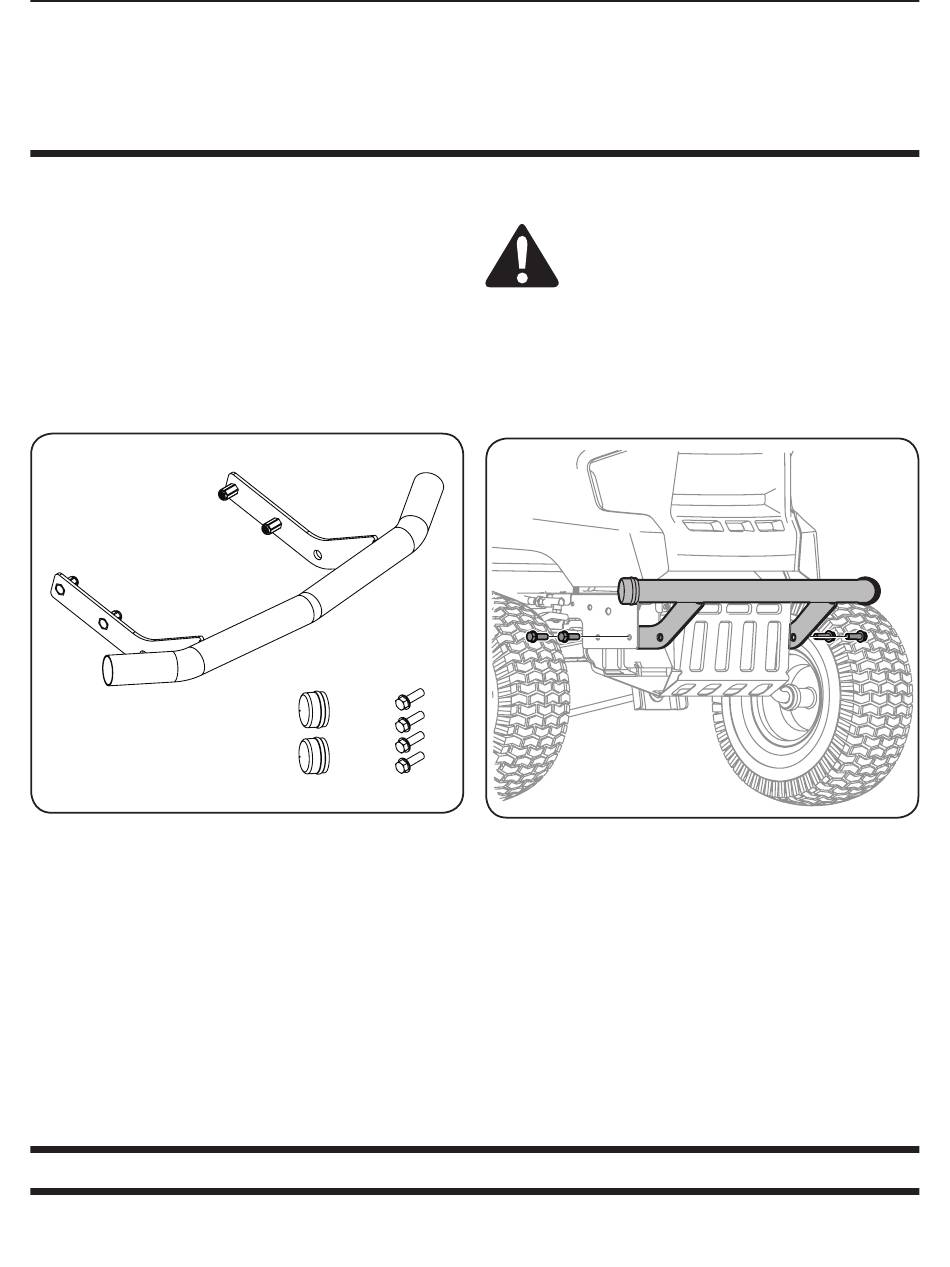

Figure 1-1
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
M
anual
Installation Instructions
WARNING:
Before beginning installation, place
the tractor on a firm and level surface, set the
parking brake, place the PTO in the disengaged
(OFF) position, stop the tractor's engine and remove
the ignition key to prevent unintended starting.
1. Place a bumper cap onto each end of the front bumper
tube.
2. Position the bumper brackets to the inside of the tractor's
frame and secure it in place with the four hex flange
screws. See Figure 1-2.
Figure 1-2
Form No. 769-09987
