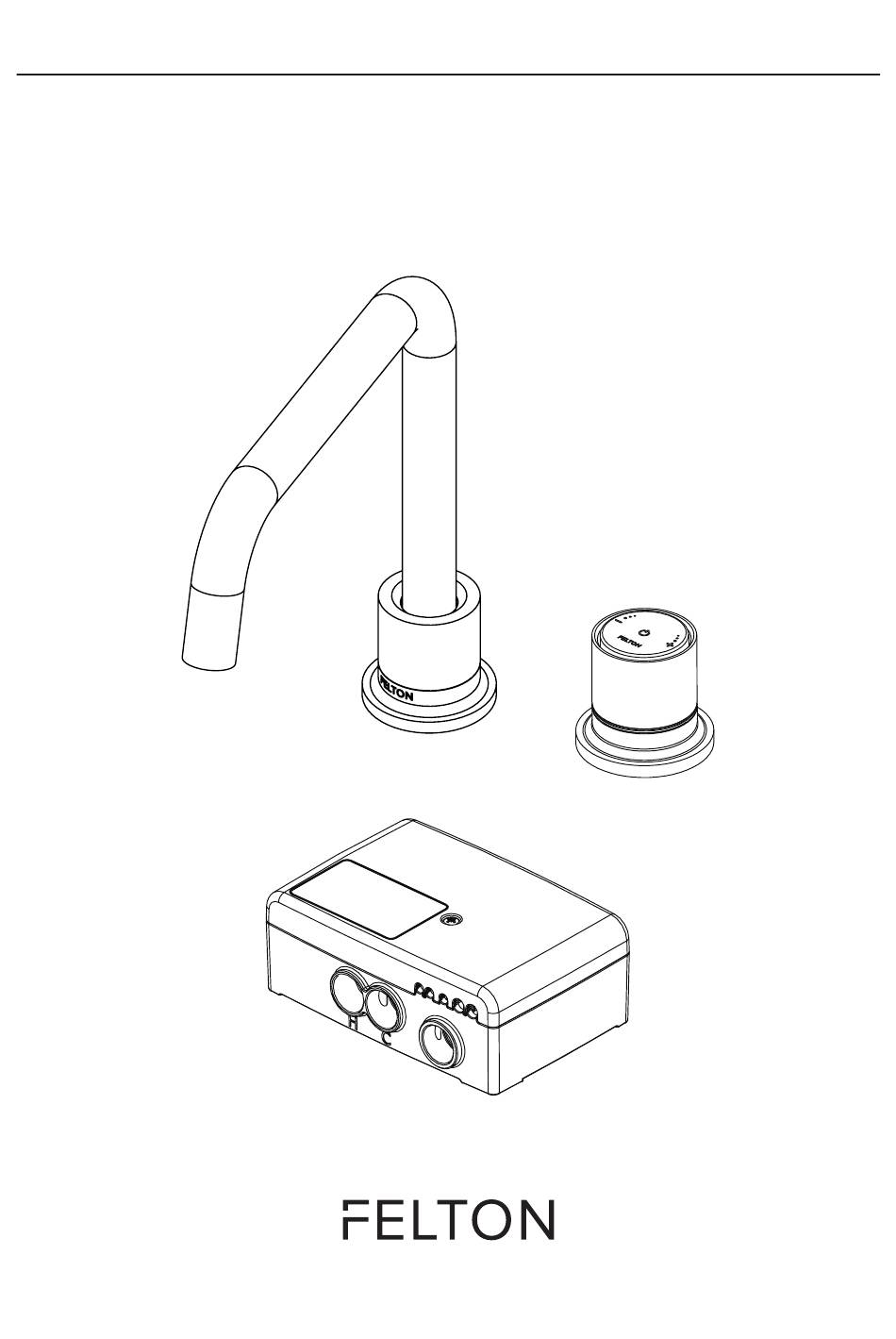

- Page 1 INSTALLATION GUIDE TAT E Digital Deck Mounted Mixer TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE...
- Page 2 FELTON...
-
Page 3: Table Of Contents
CONTENTS Notice Tools Required Measurements Scope of Application Control Unit Installation Digital Mixer Installation Deck Mounted Spout Installation Operational Test Troubleshooting Warranty TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE... -
Page 4: Notice
Installation must be carried out by qualified installers in accordance to this installation manual. AS/NZS3500 standards, rules and safety regulations do apply. PLACE OF INSTALLATION The Tate Digital Controller must be installed in an accessible place and in accordance to this installation manual. This ensures a problem-free service and maintenance procedure. DANGER OF ELECTRIC SHOCK! ELECTRICAL INSTALLATION Before opening the housing, the mains connection must be switched off. -
Page 5: Tools Required
4. Set of Screws: 2x 5x50mm BOX 2 CONTROL UNIT 5. Control Sleeve 6. Control Wheel 1. Control Mounting Tube 2. Screw 3. Control Data Cable 10m 7. Control Housing 8. Foam Seal 4. Cable Tie TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE... - Page 6 White Flow Regulator 8l/min the best option for your situation. IF YOU ARE INSTALLING AS A BATH MIXER Remove flow regulator from the spout and replace with a flow straightener (full flow). FELTON...
-
Page 7: Measurements
MEASUREMENTS 45mm 115mm 78mm TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE... -
Page 8: Scope Of Application
Electrical It is recommended (Safety) Regulations of NZ. Important: The Digital Mixer must have an that the Data Cable is access panel. installed in conduit for ease of maintenance. FELTON... -
Page 9: Control Unit Installation
Data Cable is installed in conduit for ease of maintenance. The Control Tube can be reduced in Tightening lugs length if required by cutting along the cutting slot (see Fig. 2). Fig. 2 Cutting slot TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE... - Page 10 Apply a silicone bead on the Tube into the hole until the back of the Control Housing, front flange sits against the then push the Control Housing wall. into the Plastic Tube until it is firmly fitted on the unit. FELTON...
- Page 11 Control Housing. Pull the red strip to release the connector from the plastic sleeve. Control Wheel Push the four pin connector into the socket on the back of the Control Wheel. Data Cable TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE...
- Page 12 Thread in the cable and fit the Control Wheel onto the Housing. Fit the Control Sleeve onto the Control Wheel. SIDE VIEW Ensure that you fit the Control Sleeve in the correct orientation. FELTON...
-
Page 13: Digital Mixer Installation
Ensure that all pipes will reach your mixer mounting location - see page 6 for details Remove the cover Inside the Temperature Control Unit Control unit Fixing holes Transformer 12V / Wall plug Cover retaining holes Fixing hole Cold Outlet Inlets TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE... - Page 14 56 mm 99 mm If installed vertically, use orientation Install the Digital Mixer Mark fixing holes shown MOUNTING FOR CONCRETE 56 mm 56 mm 99 mm ø 5 mm 99 mm If installed vertically, use orientation shown Install the Drill fixing holes Mark fixing holes Digital Mixer FELTON...
- Page 15 A - Connect the brass adaptors into the flexi hoses. B - Fit both flexi hoses (with the brass adaptor on) firmly into the unit box. C - Fit the large retaining bolt with a torx screw driver supplied. TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE...
- Page 16 Connect the Data Cable coming Data Cable connection from the Control Unit. Use the large 6 pin connector and push firmly into the socket. Feed the cable through the one of the guide slots in the front of the Digital Mixer. FELTON...
- Page 17 (if required). IMPORTANT: Fit cables into slots to allow cover to properly close at end of installation Please Note: Leave the torx taped to the box for future use TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE...
-
Page 18: Deck Mounted Spout Installation
3. From UNDERNEATH the bench, secure with the rubber washer and lock nut. Cut a mounting 4. Connect spout to digital mixer box using the hole 025mm F-F hose or your own supplied (see Fig. 1). 1/2“BSP Rubber Washer Lock Nut Fig. 1 FELTON... - Page 19 Extension Tube and connect the spout, ensuring the grub screw aligns with the hole and push on firmly. Tighten the grub screw. Plastic Washer 4B. Secure the cover sleeve to the Extension Tube by winding it down. TATE DIGITAL DECK MOUNTED MIXER INSTALLATION GUIDE...
-
Page 20: Operational Test
Push the Smartflow Interface once. Push the Smartflow Interface again. The Digital Mixer opens and the The Digital Mixer closes and the LED illuminates. LED goes off. DECK MOUNTED DECK MOUNTED SHOWER / WALL MOUNTED SHOWER / WALL MOUNTED FELTON... -
Page 21: Troubleshooting
*Important: Controlling the flow rate is only possible with the Smartflow Digital Shower Mixer, or if you have installed a Digital Flow Control Unit for your Digital Wall Mounted Basin/Bath Mixer or Digital Deck Mounted Sink Mixer. If issue persists or is not covered in the above, please contact our Felton Technical Team on 0800 743 358 or sales@felton.co.nz... -
Page 22: Warranty
WARRANTY 5 year warranty applies to all Felton branded products including the electronic hardware and its components. Where products are promoted as having a “5 year warranty”, Felton Industries Limited guarantees the electronic components of these products (excluding batteries) to be free from defects in materials and workmanship under normal installation, use and service for a period of five (5) years from the date of purchase. - Page 24 . c o . n z | F i n d u s o n S o c i a l M e d i a @feltontapware /feltonltd /FeltonIndustriesLimited @feltonltd /felton-industries-limited 071021HM...
