Step by Step Changeover
Step by Step Changeover
Note:
3
2
1. Remove the Linear-Lift
2. Remove the cables from the Brass Nut by pulling the cable stops (against the
Brass Nut) toward the Motor end, until the cables are removed completely from
the unit. Set them aside for spares.
3. Remove the 6 Bolts & Flange Nuts shown in Figure 1. This will allow the
removal of the Swivel Support Bracket (Item 3).
Retain all Hardware...it will Be Re-used
3
1
2
4. Using a Hammer and Punch, or Screwdriver, loosen the 3/4" Stamped Lock Nut
(Item 2, Figure 2) by spinning it counter-clockwise as shown. You can now
remove the Pulley Sub-assembly. Repeat the same procedure to remove the sec-
ond Pulley Sub-Assembly.
™
Cover.
Item Description
1 Bolt
2 Flange Nut
3 Swivel Support Bracket

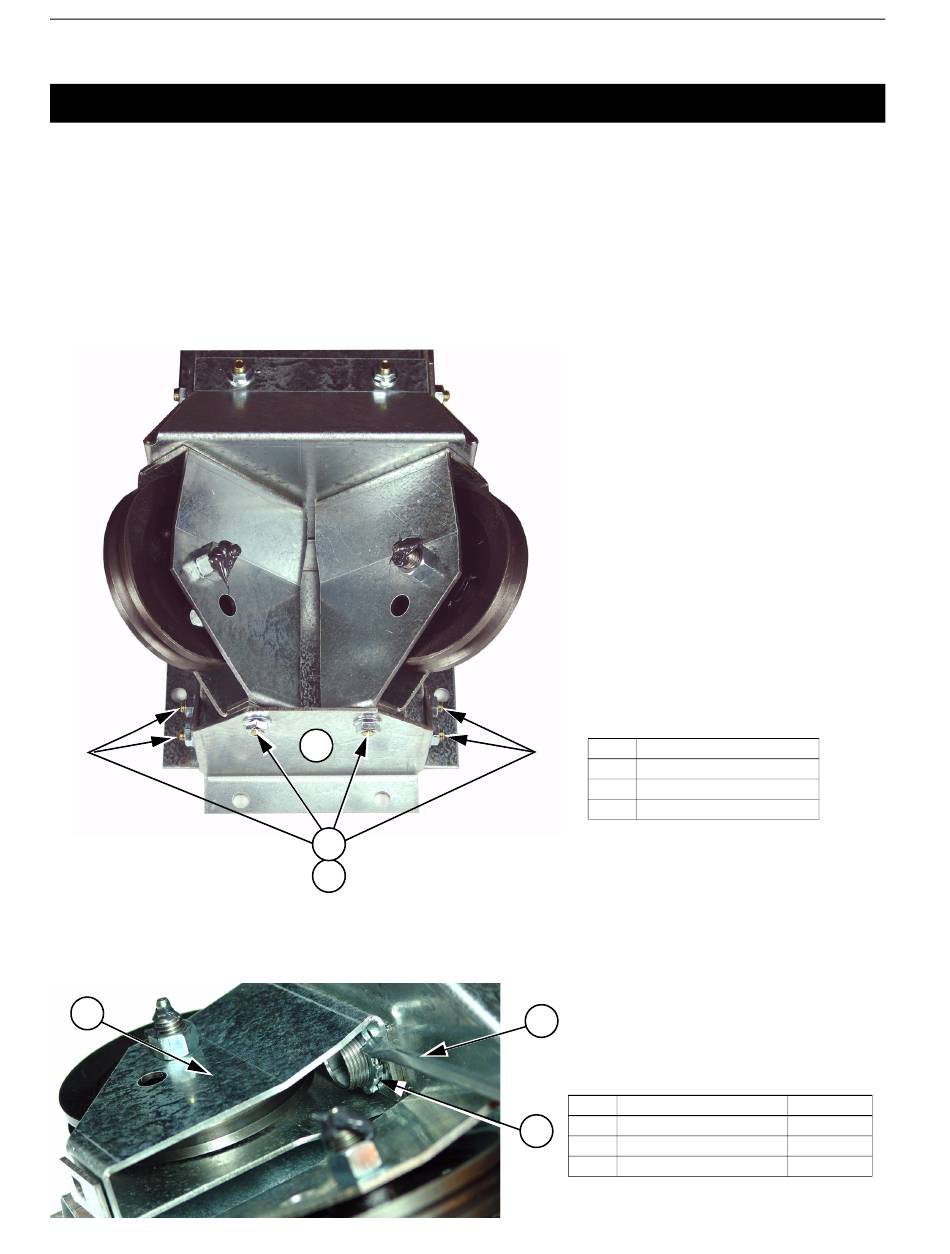

Figure 1. Removing Swivel Support
1
Item Description
2 1 Screw Driver (or Punch)
2 3/4" Stamped Lock Nut
3 Pulley Sub-assembly
Figure 2. Removing Swivel Support Bracket
Cable to Chain Retrofit Instruction
Bracket
Notes
Incl. in Kit
MV1862B
