Chore-Time Linear Lift 50558 Series Manual page 4

Step by Step Changeover
Important!
Note:
1
Item Description
1 1/4-20 Socket Head Cap Screw
2 Brass Nut
3 Chain Connecting Rod

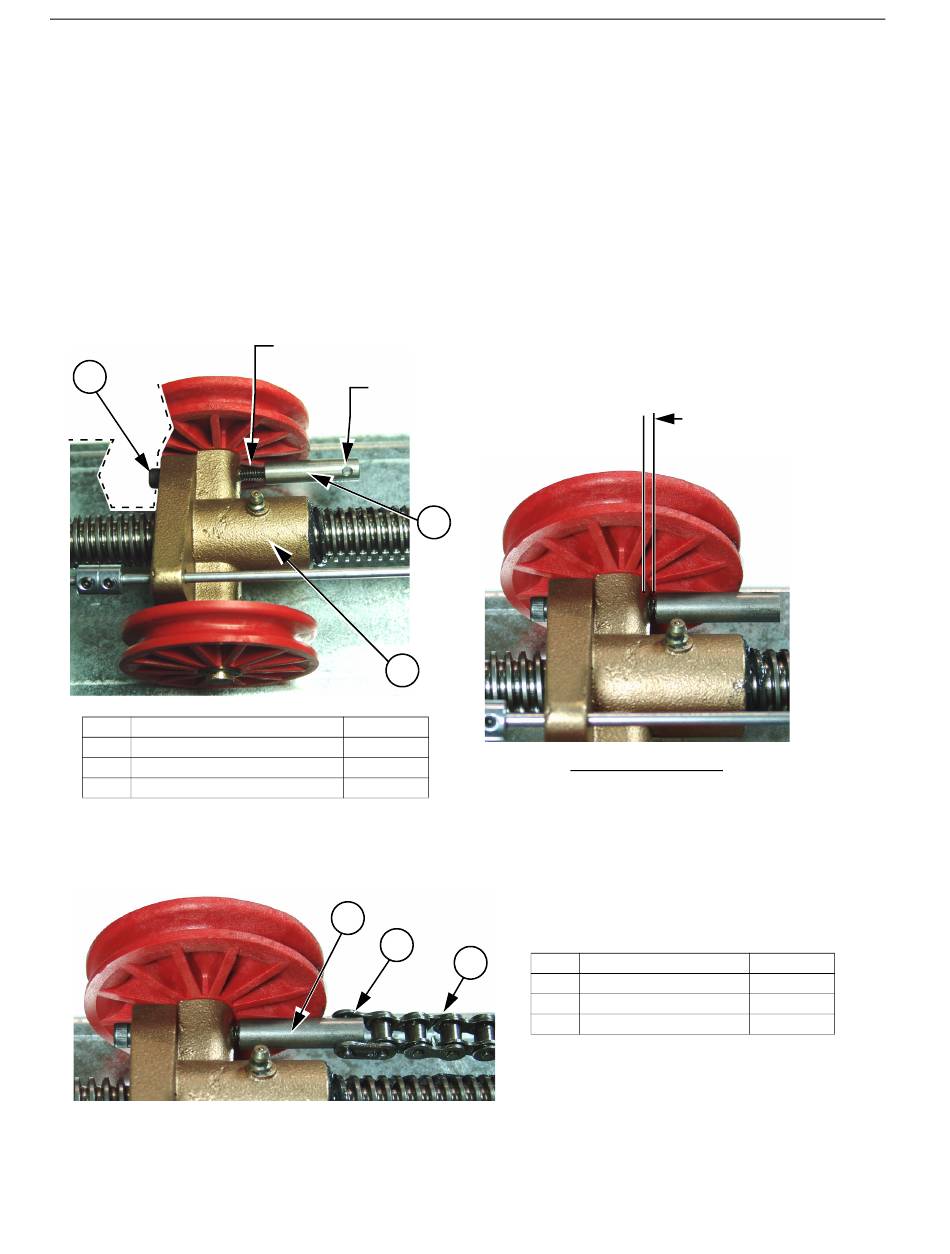

Figure 5. Attaching the Socket Head Cap Screw and Chain Connecting Rod
4
7. Insert a 1/4-20 x 2-1/4" Socket Head Cap Screw (Item 1, Figure 5) through the
Brass Nut (Item 2) and slightly thread on a Chain Connecting Rod (Item 3) as
shown.
Apply Thread Locker (Locktite
threads (See Figure 5). Tighten the Screw with an Allen wrench until it can not
be turned. Use a nail or a small punch to insert into the small hole in the Chain
Connecting Rod to hold it during tightening.
After tightening, there should be a slight gap between the Connecting Rod and
the Brass Nut (See Figure 5). The Connecting Rod and Socket Head Cap Screw
should spin freely in the Brass Nut. If the Connecting Rod tightens down
against the Brass Nut, Loosen the Screw until it is free to spin.
8. Repeat step 7 for the second Socket Head Cap Screw and Connecting Rod.
Apply Thread Locker to Threads
Hole to Insert a Nail or Small Punch
to hold during tightening
3
2
Notes
Incl. in Kit
Incl. in Kit
9. Attach the Chain to the Connecting Rod using the Chain Link Connector pro-
vided in the Parts Package (See Figure 6).
2
3
10. Repeat to attach the second Chain. Thread the Chains through the pilot ends
and onto the Sprockets.
11. Grease the Brass Nut and Threaded Rod as needed.
12. Replace the Top Cover, and test for functionality and soundness.
®
for example) to the Socket Head Cap Screw
After Tightening
1
Item Description
1 Chain
2 Chain Connecting Rod
3 Chain Link Connector
Figure 6. Attaching the Chain
Cable to Chain Retrofit Instruction
Gap allowing Screw and
Connecting Rod to Spin
Note
Incl. In Kit
Incl. In Kit
Incl. In Kit
MV1862B
