Top View - Chore-Time Linear Lift 50558 Series Manual

Cable to Chain Retrofit Instruction
Important!
3
Item
1
2
3

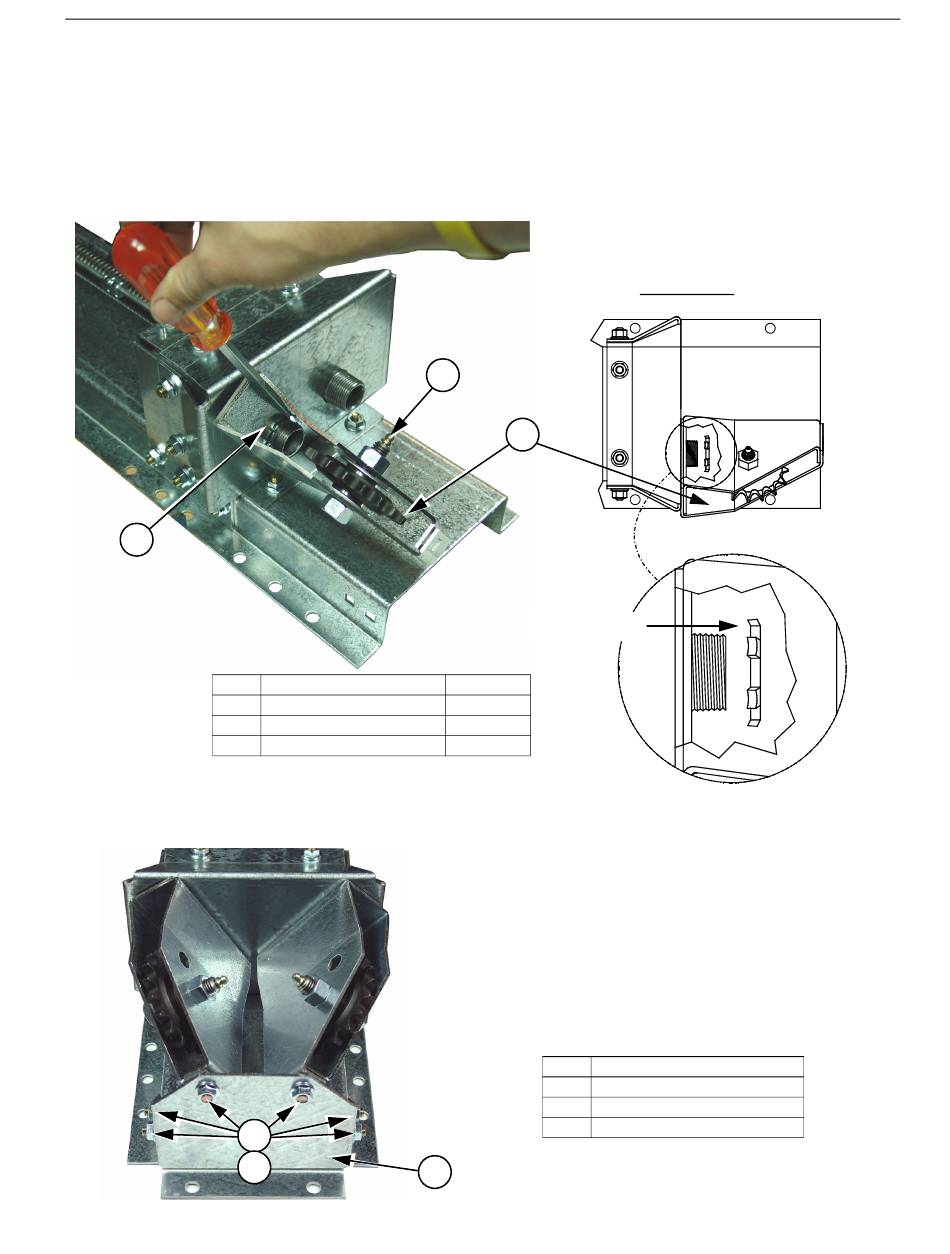

Figure 3. Attaching the Sprocket Sub-Assembly
MV1862B
5. Replace the Pulley Sub-assembly with the Sprocket Sub-assembly (Item 1, Fig-
ure 3). Make sure that the Grease Zerk (Item 2) is toward the inside as shown.
Tighten down the 3/4" Stamped Lock Nut with a Hammer and Screw Driver (or
Punch).
Make sure that the Teeth on the 3/4" Stamped Lock Nuts are toward the
Sprocket Sub-assembly as shown in the Detail in Figure 3. Repeat the same for
the second Pulley Sub-assembly making sure that the Grease Zerk is to the
inside (See Figure 4).
Description
Sprocket Sub-assembly
Grease Zerk (toward inside)
3/4" Stamped Lock Nut
6. Re-install the Swivel Support Bracket (Item 1, Figure 4) using the Nuts and
Bolts (Items 2, and 3) removed in Step 3.
2
3
2
1
Teeth
Notes
Incl. in Kit
Item Description
1 Swivel Support Bracket
2 Nut
3 Bolt
Figure 4. Re-installing Swivel Support Bracket
1
Step by Step Changeover

Top View

3
