CP Electronics DD-LCDHS Product Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

DD-LCDHS
Direct Dim, PRM and MWS7 Handset
Section
Contents
1
Description and operation
2
LCD Navigation
3
4
5
6
7
8
9

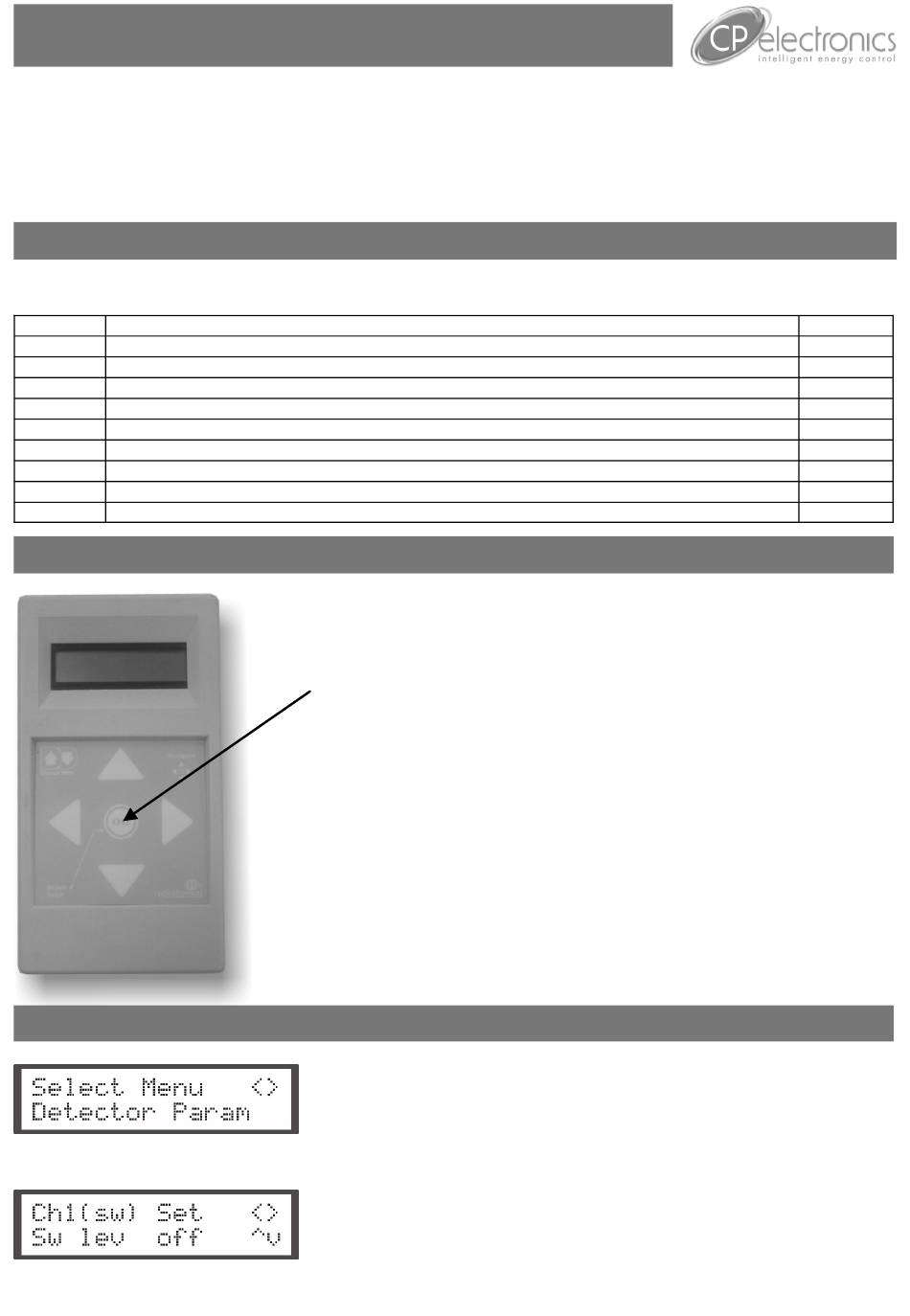

Product Guide
The DD-LCD-HS is the programming tool for all products in the -DD
(Direct Dim), -PRM (PRM) and MWS7 ranges.
On button
To turn the unit on press the „on" button. This button is also used for
selecting parameters and then sending to the device being
programmed.
Up, down. Left and right buttons
Use to navigate through the menus. The up and down buttons are
also used for selecting values or toggling between on / off, yes / no
etc.
To turn the unit off, either select the final main menu item or the unit
will turn off after 30 seconds.
Menu selection
Use the < > buttons to scroll through the menus. Press „on" to select.
Parameter selection
Use the < > buttons to scroll through the menus. Press „on" to select
menu. Use the up and down buttons to select values or toggle
between on / off, yes / no. Press „on" to send parameter to device.
1. Description and Operation
2. LCD Navigation
Contents
Page
1
1
2
3
4
5
6
7
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DD-LCDHS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CP Electronics DD-LCDHS

Summary of Contents for CP Electronics DD-LCDHS

  • Page 1: Table Of Contents

    Product Guide DD-LCDHS Direct Dim, PRM and MWS7 Handset Contents Section Contents Page Description and operation LCD Navigation Menu tree Detector Parameter Menu Modes menu Ch1 (sw) set Menu Ch2 (dim) set Menu User menu Ratings 1. Description and Operation The DD-LCD-HS is the programming tool for all products in the –DD...

  • Page 2: Menu Tree

    3. Menu Tree...

  • Page 3: Detector Parameter Menu

    Menus The final column for each menu section shows which products can programmed with specific parameters. 4. Detector Parameter Menu IR cmd Description Default Products Time Mins 10 seconds to 99 minutes time delay (select 0 for 10 second delay – use for commis- sioning only).

  • Page 4: Modes Menu

    5. Modes Menu IR cmd Description Products Channel modes Selects the channel modes menu Switch modes Selects the switch modes menu Channel Modes Menu IR cmd Description Default Products Switch only Usually used for absence detection - in this mode the dimming channel is not used. -DD &...

  • Page 5: Ch1 (Sw) Set Menu

    6. Ch1 (sw) set Menu Use this menu for programming Channel 1. This is the switched channel. IR cmd Description Default Products Presence Auto switch on with detection, auto off after movement ceases and time delay ends. Product dependant Absence Manual switch on, auto off after movement ceases and time delay ends.

  • Page 6: Ch2 (Dim) Set Menu

    7. Ch2 (dim) set Menu Use this menu for programming Channel 2. This is the dimmed channel. IR cmd Description Default Products Light lev Light level. Maintained illuminance level (adjustable between 1 and 999). At 999 the -DD & MWS7 output will be always be at maximum.

  • Page 7: User Menu

    7. Ch2 (dim) set Menu (con) Special Menu IR cmd Description Default Products Sw lev on Switch level on None -DD & MWS7 Lux level setting to prevent the luminaires being switched on if the ambient light only level is sufficient (adjustable between 101 and 199). Use to provide finer adjustment than parameters opposite.

  • Page 8: Ratings

    Fax: + 44 (0) 333 900 0674 www.cpelectronics.co.uk enquiry@cpelectronics.co.uk FM 45789 EMS 534520 Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice. Ref #WD275 Issue 2...
