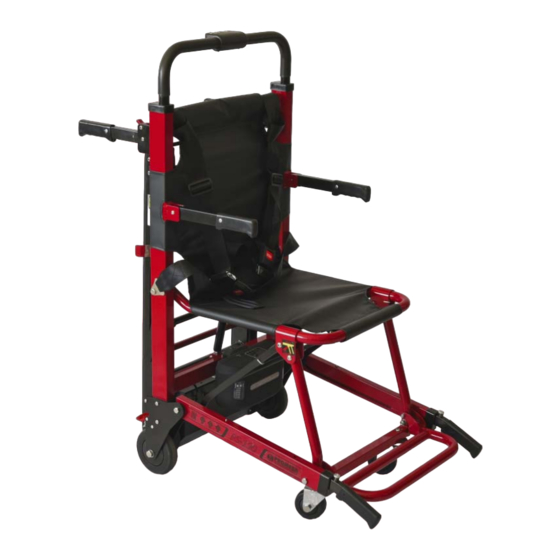

Evacuation chair with tracks
Hide thumbs Also See for PS-190:
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
EVACUATION CHAIR WITH TRACKS PS-190
Review 2021/09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Promeba PS-190

Summary of Contents for Promeba PS-190

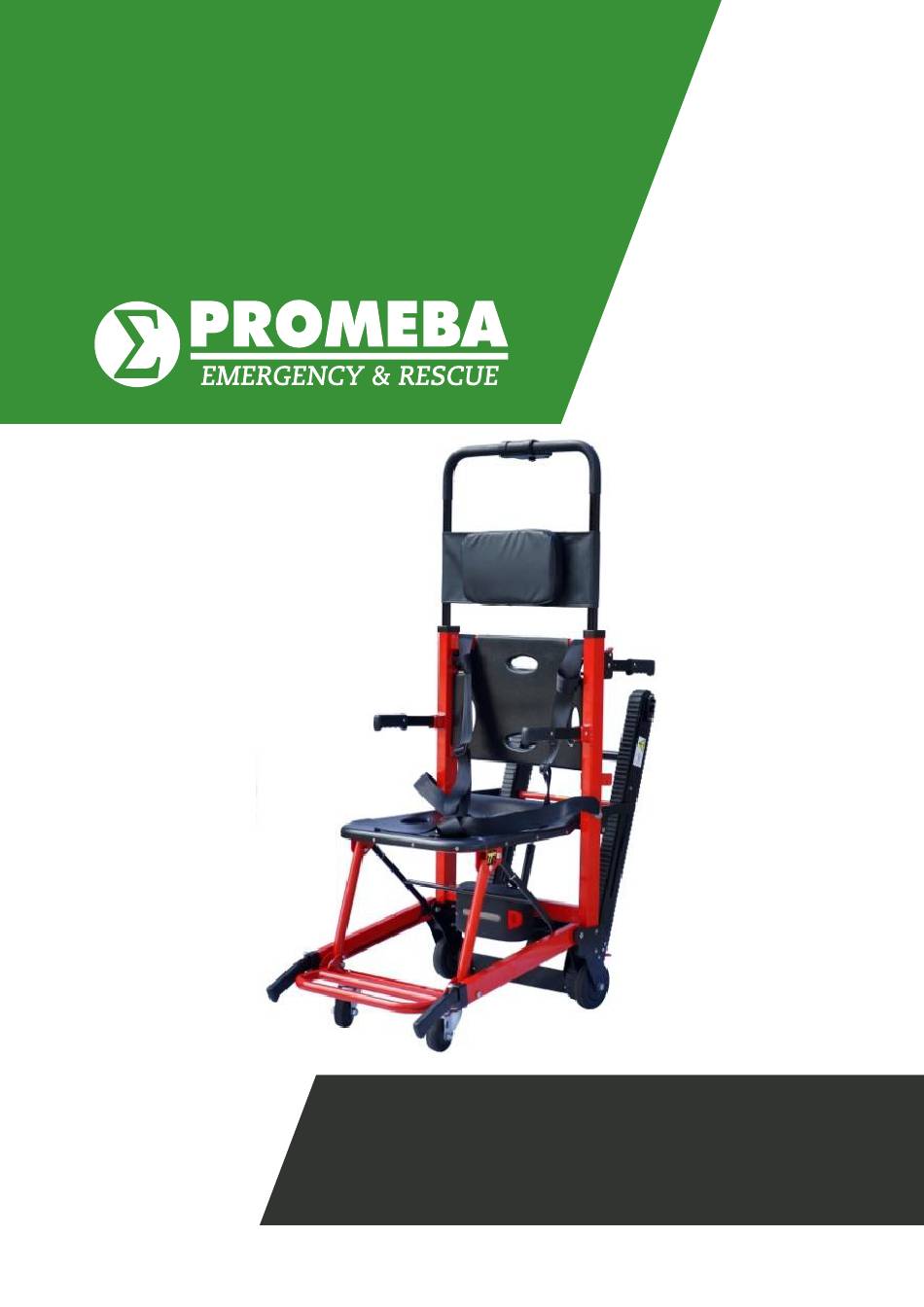

  • Page 1 USER GUIDE EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09...

  • Page 3: Table Of Contents

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 INDEX INTRODUCTION 01.1 Using this manual 01.2 Legend of symbols 01.3 Servicing request 01.4 Demolition 01.5 Labelling 01.6 Contraindications and adverse effects 01.7 Physical requirements of the operators 01.8 Intended purpose 01.9...

  • Page 5: Introduction

    (PRODUCTOS METÁLICOS DEL BAGÉS S.L., Ctra. C-16 Km 59.5, 08650 Sallent (Barcelona)). Indicates the manufacturer’s reference number to identify the medical device. PROMEBA, S.L. uses this symbol to set each internal reference for each configuration and business variant. Indicates the manufacturer’s serial number to identify a specific medical device.

  • Page 6: Servicing Request

    For information of the correct interpretation of the instruction manual, the use, maintenance, installation and restoration of the product, please contact Promeba customer service: T. 93 837 12 00, email prome- ba@promeba.com or write to PROMEBA, S.L. - Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN.

  • Page 7: Physical Requirements Of The Operators

    This register, which will certify the eligibility of the operators to use the Promeba, S.L. device, has to be kept for a period of 10 years after the disposal of the device itself. This register will be made available to the competent authorities and/or manufacturer if requested.
  • Page 8 28. As a distributor or end user of the products manufactured and/or distributed by Promeba, S.L., you are strictly obliged to know the legal provisions in force in the country of destination of the goods, applicable...

  • Page 9: Specific Warnings

    2. Use only accessories/spare parts that are original or approved by Promeba, S.L. when carrying out any operation, to avoid causing any alteration or modification to the device, otherwise we assume no responsi- bility for the proper functioning or damage resulting from device to the patient or the operator and warran- ty will be considered void.
  • Page 10 29. The transport chair is certified for use with the specific fixing system of Promeba S.L., therefore the use of any other fastener not approved by the manufacturer is prohibited. Fixing systems that have not been approved can alter the structural and functional characteristics of the chairs 30.

  • Page 11: Residual Risk

    Only the manufacturer or an authorized center can extend the life of the device, if it meets the safety requi- rements. Promeba, S.L. will not accept any responsibility for malfunction or damage caused by the use of devices that have not been checked by the manufacturer or authorized center, or that have exceeded the maximum...

  • Page 12: Product Descpription

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 PRODUCT DESCRIPTION 02.1 Main components Nº DESCRIPTION OF COMPONENTS Nº DESCRIPTION OF COMPONENTS Armrests Rear wheels with brake Belts Front swivel wheels Telescopic handles Control panel Footrest Folding system with safe anti-fold...

  • Page 13: Technical Data Sheet

    24V o 36V 02.3 Features 1. The PS-190 chair is specially designed to help in emergency situations with the elderly, public safety, hospitals, hotels, etc. 2. It can be folded, for easy storage. 3. It can climb up and down stairs smoothly and steadily by track.

  • Page 15: Operation

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 OPERATION 03.1 Transport and storage UNIDAD DE EMBALAJE RESPETE LA POSICIÓN DE TRANSPORTE DEL EMBALAJE Before transporting the appliance, make sure that it is correctly packa- ged. During transport always fix the load. If piling up is necessary always follow the scheme shown on figure 1.

  • Page 16: Functioning

    OPERATION - Lubrication of moving parts - The emergency vehicle is equipped with the locking system for the PS-190 chair If the above conditions are met, the device may be considered ready for use; otherwise you must immedia- tely remove the device from service and contact the manufacturer.
  • Page 17 USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 03.3.5 WHEELS BRAKES The 2 rear wheels of the chair are equipped with brakes to prevent the chair from moving during the trans- fer of the patient or during a stop.
  • Page 18 USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 OPERATION Make sure the track and track belts are clean and dry before using the set on stairs. Before using the track, adjust the upper handle to the desired height and fold the rear levers. Press the power button on the control panel, approach the chair to the start of the stairs and gently recline it until the tracked powertrain is on top of the first few steps.

  • Page 19: Troubleshooting

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 OPERATION 03.4 Troubleshooting PROBLEM CAUSE SOLUTION Carry out a thorough cleaning. If the pro- Difficulty in removing and inserting the Dirt on the slide or deformation of the blem persists, do not use the chair to go up...

  • Page 20: General Maintenance

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 GENERAL MAINTENANCE CLEANING It is essential to keep the equipment clean to ensure a proper use and durability of the set. A thorough clean must be done perio- dically, especially in areas exposed to dirt that may be damaged such as gears or mobile elements.

  • Page 21: Spare Parts

    PS1900-00040 PS1900-00040 PS1900-00040 RODA GIRATÒRIA Ø80 PS-190 PS1900-00050 PS1900-00050 PS1900-00050 RODA FIXE Ø120 PS-190 PS1900-00080 PS1900-00080 PS1900-00080 CARGADOR EXTERNO PARA SILLA PS-190 Y PA-260 PS1900-00250 PS1900-00250 PS1900-00250 CONJUNT REPOSABRAÇOS PS-190 PS1900-00310 PS1900-00310 PS1900-00310 MANETA PLIEGE IZQUIERDA PS-190 PS1900-00311 PS1900-00311 PS1900-00311...

  • Page 22: Training Register

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 TRAINING REGISTER The product must be used by trained personnel only, having attended specific training for this device and not for similar products. Keep this document at least 10 years from the end of life of the device.

  • Page 23: Maintenance Register

    USER GUIDE // EVACUATION CHAIR WITH TRACKS PS-190 Review 2021/09 MAINTENANCE REGISTER Perform the required maintenance as indicated by the manufacturer in this user’s manual. Keep this document at least 10 years from the end of life of the device.

  • Page 25: Legal Notices

    Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make any modifica- tion or improvement in the products described in this publication if it is appropriate.

  • Page 27: Product Warranty

    Periodic maintenance and repair or replacement of mitted by applicable law. parts derived from normal wear and tear. The only obligation on the part of Promeba, S.L. in con- b) Expendable material (components that are expected nection with this warranty is to repair or replace parts to need periodic replacement during the life of the pro- subject to the terms and conditions of this warranty.
  • Page 28 Todos los derechos reservados. Reservado el derecho ha modificaciones sin previo aviso. Promeba, S.L. no se considera responsabe de los daños causados por la falta o la inexactitud de la información aquí mencionada. All rights reserved. Variations can be done whitout notice.
