Summary of Contents for JOBOBIKE Sam

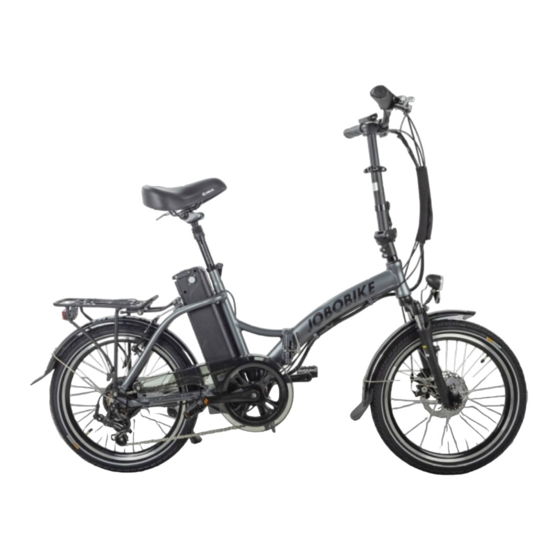

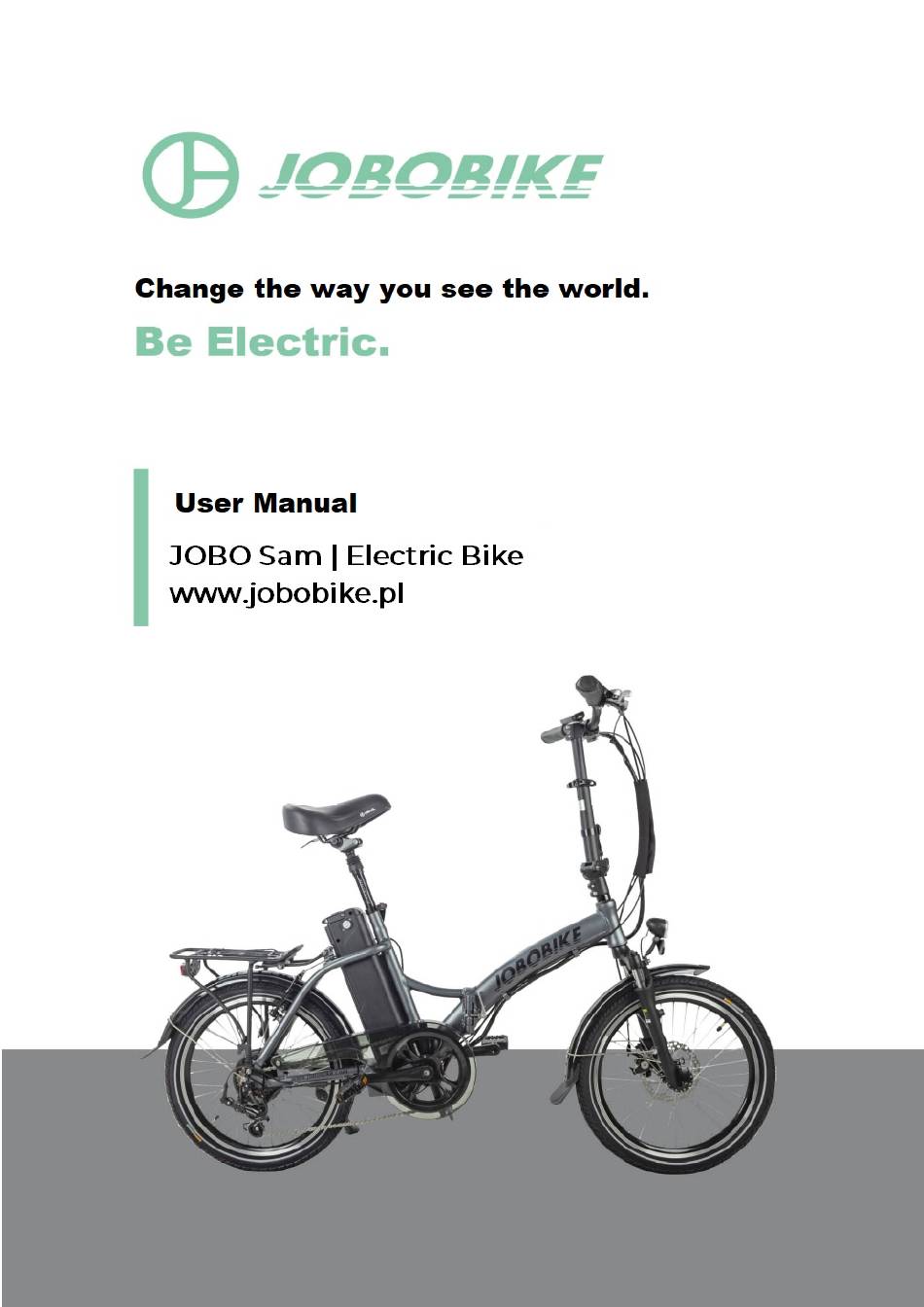

- Page 2 Welcome to Jobobike family. We are happy that you have choose the Sam JOBOBIKE. This top quality electric bike will give you comfort and fun while using. The manual you have received is basic help for assembling and using your bike.
-
Page 3: Table Of Contents
Spis treści General Info............................3 Assembly Instructions........................7 Battery Charging..........................11 Operation.............................13 Maintance............................15 Troubleshooting...........................18 Warnings and Safety........................19 General information about using electric bike………………………………………………………………..……19 Safety tips.............................20 Warranty............................22... -
Page 4: General Info
Once you read it and still in need for help, please visit our website, contact us by email, and/or give us a call on the phone. Vehicle Category The Sam e-bike is a 250 watt (W) e-bike. E-bikes should be used according to legal regulations made by country law. So you are obliged to follow your country regulations. Mandatory Equipment and Use Locations Before each ride, ensure you have all required and recommended safety equipment and are following all laws pertaining to using an electric bike in your region. - Page 5 bike electrical system and check to see that it is working correctly before every ride. The front and rear brake levers contain motor cutoff switches, which disable the hub motor’s assistance when applied, and both levers should be checked for correct operation. The twist power assist should provide smooth acceleration when gradually applied.
- Page 6 NOTICE: Jobobike is the only brand that can be used for charging bike. Using other producers accesories will void your varranty and if any damages occur company does not take responsibility for it.
- Page 7 NO Nazwa części NO Nazwa części NO Nazwa części 1 Saddle 12 Spoke 23 Front fender 2 Seat post 13 Derailleur 24 Front light 3 Seat post clamp 14 Kickstand 25 Headset bearings 4 Rear rack 15 Chain 26 Stem 5 Rear light 16 Crank set 27 Display...
-
Page 8: Assembly Instructions
If there are any missing parts, please contact us. Step 2 Install handlebar onto stem as shown in the assembly video for the Sam JOBOBKE located on the web page jobobike.pl/instructions/. 2. 1. Rotate the handlebar stem upward so it is upright, and the hinge is closed.Use caution to keep fingers, clothes, or anything else away from the hinge. - Page 9 Secure the folding mechanisms. Check that the central frame hinge is latched and securely locked, as shown in the jobobike.pl/instructions/ assembly video available at the web page Use caution to keep fingers, clothing, etcetera away from the folding parts and potential pinch points.
- Page 10 Step 10 Review the remainder of the manual Operate the electrical system when the battery has been adequately charged and the battery is secured to the mounting receptacle on the frame. NOTICE: If you have any questions regarding the assembly of your bike, contact uss. If you are not able to ensure all the assembly steps in the assembly video are performed properly, or you are unable to view the assembly video, please consult a certified, reputable local bike mechanic for assistance in addition to contacting us for help.
- Page 11 3. After tightening the adjustment nut (opposite the quick release lever) on the seatpost quick release properly, close the quick release lever fully so it looks like the image below and the seat cannot move up, down, to the left, or right. Before using the bike, always check to ensure all latches, levers, and quick releases are properly secured and undamaged.
-
Page 12: Battery Charging
Battery Charging The battery can be charged both located inside or when you take it out of the frame. 1. When is located inside frame: a. Turn e-bike power off. b. Locate charging port – right side of battery and remove rubber cover. c. -
Page 13: Operation
• Do not turn the bike on if you are riding it without the battery installed, or damage to the electrical system could occur. Use caution to avoid damage to battery connector terminals, which are exposed when the battery is unlocked and removed from the frame of the bike. - Page 14 Read and understand all sections of this entire manual before operating the bike for the first time. There are important safety warnings throughout the whole manual that must be followed to prevent dangerous situations, accidents, damage to the bike, damage to property, injury, or death. Users must follow the instructions and warnings contained in this manual for safety.
- Page 15 Carrying Cargo Carrying a cargo load involves additional risks, which require special attention and care. Braking, acceleration, and balancing are all significantly affected by the addition of cargo loaded on the ebike. To safely operate your ebike while carrying cargo, you must get used to the differences in braking, steering, balance, etcetera that come with the extra weight.
-
Page 16: Maintance
Maintance Basic bike care To ensure safe riding conditions you must properly maintain your bike. Follow these basic guidelines and see a certified, reputable bike mechanic at regular intervals to ensure your bike is safe for use and fun to ride. See the Safety Checklist and Recommended Service Intervals sections of this manual for more detailed information. - Page 17 proper derailleur cable tension. pedal torque. - Replace brake pads if - Check chain stretch. - Clean brake and shift necessary. - Check brake and shifter cables for cables. corrosion or - True and tension 750 mi) fraying. wheels if any - Check spoke tension.
- Page 18 Tyre inflation and replacement The Sam BIKE employs 20' x 2.125' tyres, The tyres are designed for durability and safety for regular cycling activities and should be checked before each use for proper inflation and condition. Proper inflation, care, and timely replacement will help to ensure that your bike’s operational characteristics will be maintained, and...
-
Page 19: Troubleshooting
Even tyres equipped with built-in flat-preventative tyre liners, can and do get flats from punctures, pinches, impact, and other causes. When tyre wear becomes evident or a flat tyre is discovered, you must replace the tyres and/or tubes before operating the bike or injury to operators and/or damage to your bike could occur. When changing a tyre or tube, ensure that all air pressure has been removed from the inner tube prior to removing tyre from the rim. -
Page 20: Warnings And Safety
Warnings and Safety Dadditional information on wear Components of the e-bike are subject to higher wear when compared to bikes without power assistance. This is because the e-bike can travel at higher average speeds than regular cycles and has a greater weight. Higher wear is not a defect in the product and is not subject to warranty. - Page 21 • Always wear an approved bicycle helmet whenever riding a bike and ensure that all helmet manufacturer instructions are used for fit and care of your helmet. Failure to wear a helmet when riding may result in serious injury or death. •...
-
Page 22: Warranty
Returns If the JOBOBIKE bike ordered by you does not meet your needs (e.g. the size of the bike is not suitable for you), you can return it to us within 14 days from the date of its receipt. When returning the bike, remember that it must be sent in its original box and must not show signs of use. - Page 23 Proof of purchase is required with any warranty request. Assembly videos All our videos with assembly instructions can be found on our website www.jobobike.pl, as well as on the official JOBOBIKE channel on YouTube. If you have any further questions, please contact the JOBOBIKE technical support team at www.jobobike.pl or at the e-mail address support@jobobike.pl.
- Page 24 JOBO Europe Sp. z o.o. ul. Gromadzka 5 505-806 Sokołów Poland +48 459 389 707 +48 22 426 42 86 info@jobobike.pl www.jobobike.pl...
