17. MODULATION BAR / TOUCH CONTROLLER
By pressing the modulation bar, you can apply vibrato . You
can also switch to a Hold eff ect that sustains the sound
you're playing (p . 11) .
If you hold your fi nger on the touch controller and move it
to left or right, the pitch will change (p . 11) .
18. Strap Pin
Attach the included strap to this pin (p . 7) .
19. Strap Pin (A)
Attach the included strap to this pin .
Depending on your playing style, you can use either this
pin or the strap pin (B) located on the rear of the Lucina
AX-09 (p . 7) .

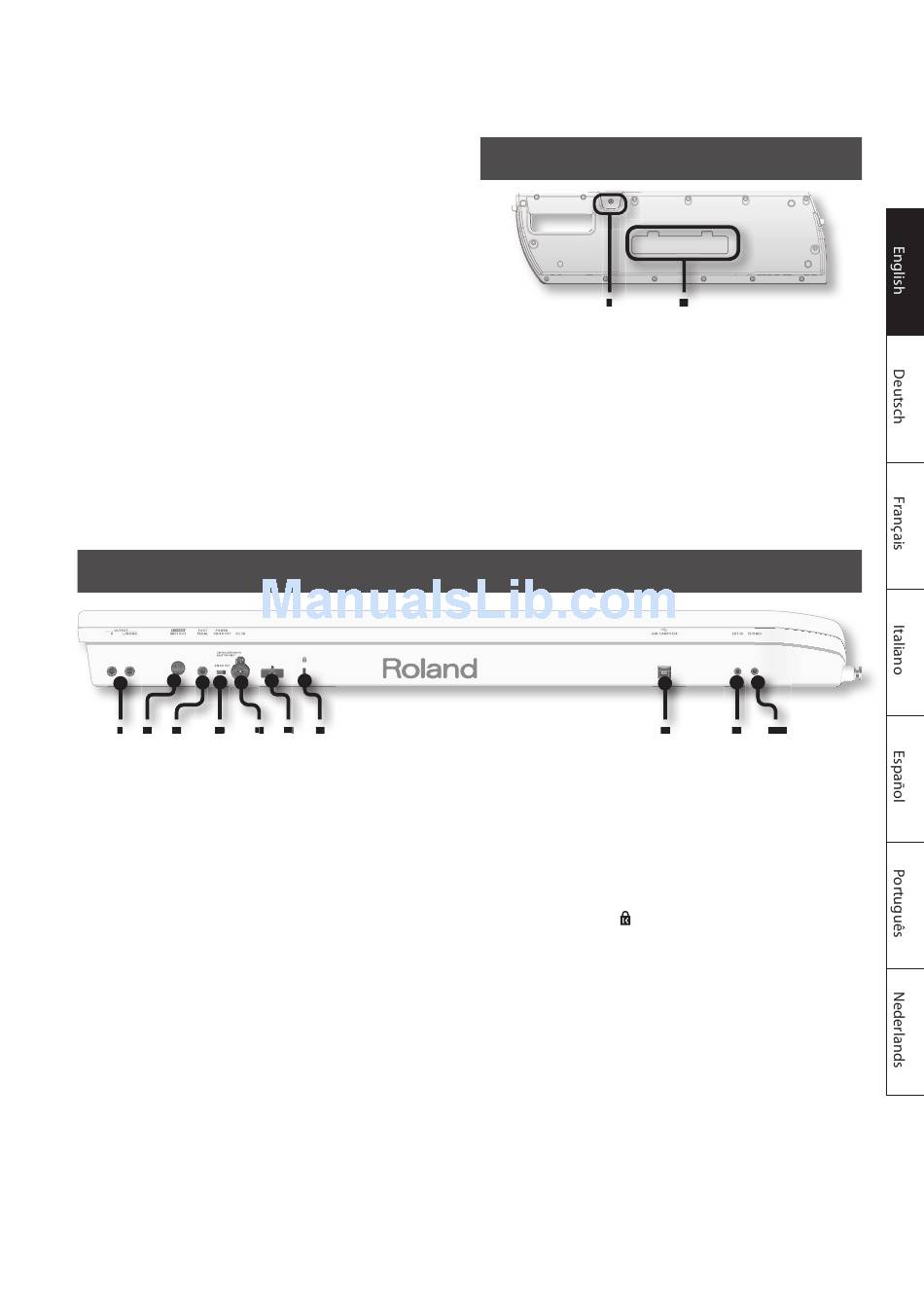

Rear Panel

1 1 2 3 2 3 3 4 4 4
1. OUTPUT Jacks (L/MONO, R)
The sound of the Lucina AX-09 is output from these jacks .
Connect them to your amplifi ed speakers .
To employ monaural output, connect to only the L/MONO
jack .
2. MIDI OUT Connector
If you connect this to another MIDI device, MIDI messages
from the Lucina AX-09 will be transmitted to that device,
allowing you to play it remotely (p . 20) .
3. FOOT PEDAL Jack
Connect a separately sold Roland DP-series pedal here .
Alternatively, you can connect an expression pedal (EV-5;
sold separately) (p . 13) .
4. [POWER] Switch
This turns the power on/off (p . 8) .
If you're using the included AC adaptor and need to turn
off the power completely, turn off this POWER switch, and
then disconnect the AC adaptor from the outlet .
5 5 5 6 6 6 7 7

Bottom Panel

1 1 1
1. Strap Pin (B)
Attach the included strap to this pin .
Depending on your playing style, you can use either this
pin or the strap pin (A) located on the side of the Lucina
AX-09 (p . 7) .
2. Battery Compartment
You can install Ni-MH AA rechargeable batteries here (p . 6) .
5. DC IN Jack
Connect the included AC adaptor here (p . 7) .
6. Cord Hook
Use this to secure the cord of the included AC adaptor
(p . 7) .
7. Security Slot ( )
http://www.kensington.com/
8. USB COMPUTER Connector
Use a USB cable to connect the Lucina AX-09 to your
computer (p . 21) .
9. EXT IN Jack
Connect your portable audio player or other audio source
here . The sound that's input via this jack will be output
from the OUTPUT jacks and the PHONES jack (p . 14) .
10. PHONES Jack
Headphones (sold separately) with a stereo mini plug (1/8"
jack) can be connected here (p . 8) .
2 2 2
8 8 9 9 10 10
