OB1203SD-BT2-EVK
QUICK START GUIDE
Evaluation kit for Heart Rate, SpO2, and Respiration Rate
1

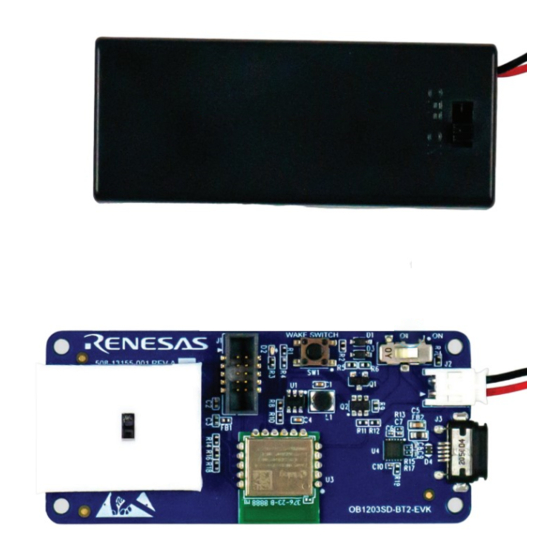

Battery ON position
2
Battery ON position = toward battery connector
Ready/Awake LED should
be solid red *
renesas.com/OB1203SD-BT2-EVK
Press Button
3
>2 seconds to wake
Go to:
renesas.com/ob1203sd-bt2-evk/dashboard.html
Note:
The Web Application runs on Microsoft Edge or Google Chrome using
a Windows PC (V10 or above). It uses the computer's built in Bluetooth (BLE)
capability to connect to the EVK. PC's Bluetooth must be enabled.
Compatible browsers are listed here:
*OB1203SD-BT2-EVK will time out after ~30s without a finger on the sensor to
extend battery life.
4
Click connect
5
Select
6
Click pair
caniuse.com/web-bluetooth
