REVISION 1.0
Before installing the PMCA-20 Series Proportioner and start-up, carefully read all the
technical and safety documentation included in this manual. Pay special attention to the
information in order to know and understand the operation and the conditions of use of the
PMCA-20 Series Proportioner. All of the information is aimed at improving user safety and
avoiding possible breakdowns from the incorrect use of the PMCA-20 Series Proportioner.
PMCA-20
Proportioner
Manual

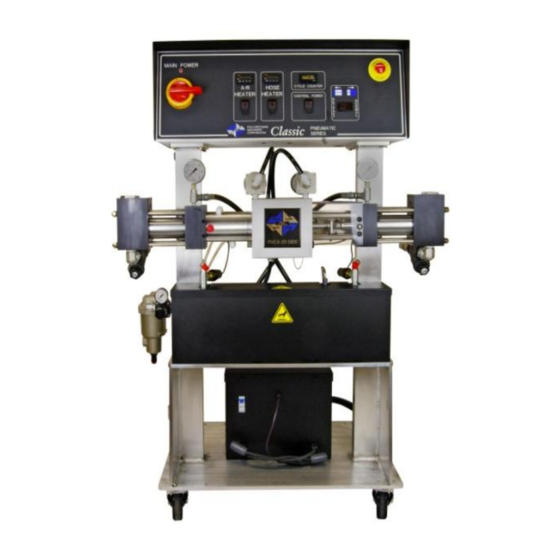

Pneumatic, Heated, Plural Component
Proportioner
For spraying Polyurethane Foam and
Coatings
For Professional Use Only
Not approved for use in
Explosive atmosphere locations
Ref. # MN-06001
Polyurethane Machinery Corp.
Headquarters: 1 Komo Drive, Lakewood NJ 08701
Manufacturing: 2 Komo Drive, Lakewood, NJ 08701
Phone: 732-415-4400
http://www.polymac-usa.com
Fax: 732-364-4025
