Sapphire 1500 MK3
GJD005 Lighting Controller

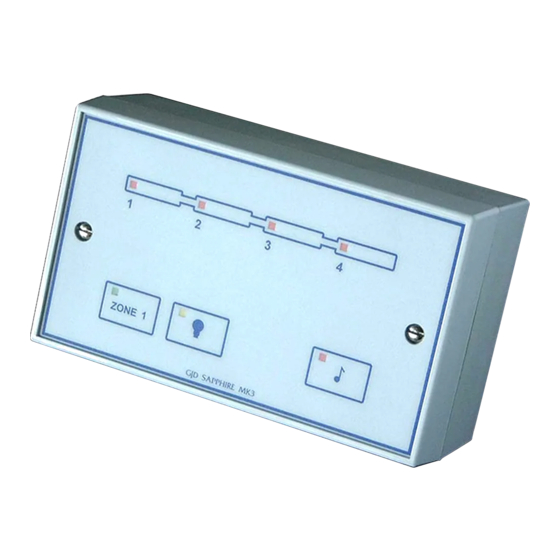

The GJD Sapphire is a single area security lighting
controller which enables external areas to be accurately
monitored.
It automatically switches up to 1500 watts of resistive
lighting at night for a pre-set period and can be manually
overridden when required. The controller incorporates an
audible warning tone and features four detector indicators
which illuminate when activated by detection day and night.

OPERATING INSTRUCTIONS

When a detector is activated day or night the relevant
detector indicator flickers and will remain on for the length
of the timer setting. During darkness the lighting will be
switched on automatically while the detector is receiving
activation signals, and will automatically turn off after the
pre set timer period.
The 'Zone 1' green indicator has to be selected for
automatically controlled lighting on detection during
darkness.
Green indicator is 'on'. This mode
ZONE 1
must be selected for automatic
lighting during darkness.
Indicator 'off'. Lighting and tone are
ZONE 1
switch off.
Green indicator flashing. A detector
ZONE 1
has activated the lighting.
Manually selecting this yellow
indicator will turn the lighting 'on'.
Turning the indicator 'off' will return
to automatic mode.
Indicator 'off'.
Yellow indicator flashing. A
detection has automatically
activated the lighting.

ADJUSTMENT TO FACTORY SETTINGS

When connecting the unit to the electrical supply or when
the supply is interrupted, the indicators will flash for one
minute whilst the system settles. Pressing any button
during this time will start normal operation.
5
3
1
LIGHT ON
TIME MINS
Internal adjustments panel
The factory settings are shown.
LIGHT ON TIME IN MINUTES
1 to 24 minutes:
The length of the light on time after the last detection
during darkness. The red detector indicators will stay on for
this time after the last detection day and night.
PULSE COUNT/WALK TEST
Select this symbol to assist in location alignment of the
detector beams during daylight installations. When the
detector beams are activated the external lights will stay on
for a period of 6 seconds.
1, 2 or 3
After completing the 'walk test' function, set the pulse count
to required level. The pulse count is the number of detector
beams that have to be crossed to trigger the system.
1. Will give fast response
2. Gives better immunity with good response
3. Gives highest immunity to false activation in poor
environments but us less responsive.
1
Detect. Illuminate. Deter
Red indicator 'on'. Audible warning
tone selected. Zone 1 indicator to
be selected to function.
Indicator 'off' Audible warning tone
is switched off.
10 1 2
3
24
PULSE
COUNT
