Summary of Contents for Telecom MABT-2PTT

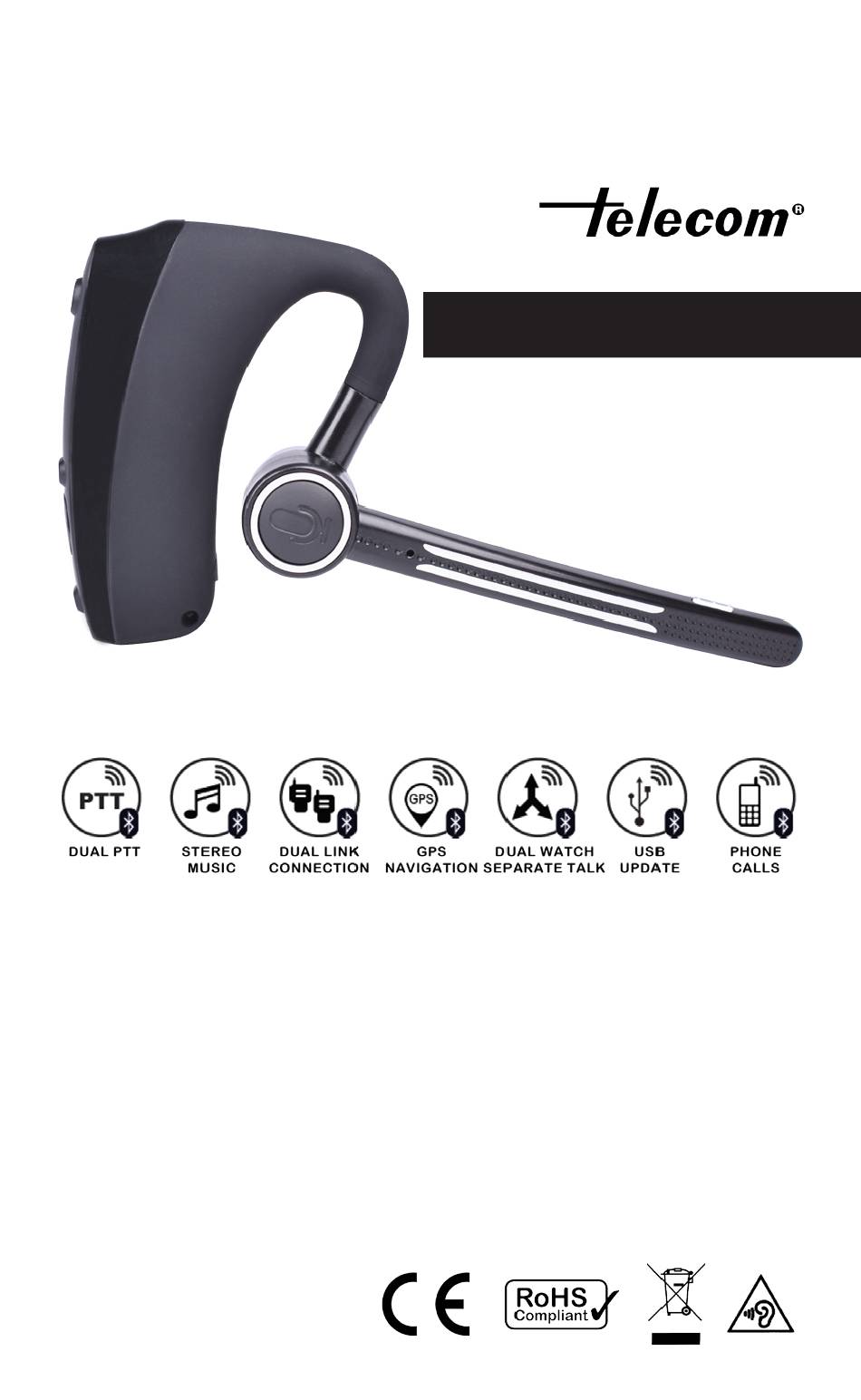

- Page 1 MABT-2PTT BLUETOOTH EARPHONE MICROPHONE...
- Page 2 Waste electrical and electronic equipment (WEEE): This device complies with Directive 2012/19 / EU on waste electrical and electronic equipment (WEEE). This symbol means that accor- ding to local laws and regulations, the equipment, accessories and / or its battery will not be disposed of with household waste. When this device reaches the end of its useful life, deliver it to a selective collection point designated by local authorities.
- Page 3 Please read the content carefully before using Thank you very much for purchasing our MABT-2PTT Bluetooth PTT headset. In this user manual, we introduce how to use MABT-2PTT product, you can know more about our product according to this user guide.
-
Page 4: Product Description
Product description Especificaciones Operating frequency ISM 2.4 GHz Band Modulation GFSK, π/4-DQPSK, 8DPSK Type of equipment Class III Max. transmission power (P.I.R.E.) 0.03 dBm Bluetooth version V 4.1. Class 2 Bluetooth profile HSP, HFP, A2DP, SPP Coverage 10 m. Charging time 3 h. -
Page 5: Main Features
LED indicatpr Status LED Off Power Off Blue lights short flashing every 3 second Standby Blue lights long flashing every 3 seconds Connected Fixed Blue light Call audio actived Blue lights and Red lights flashing alternately Pairing state Red lights flashing 2 times every 60 seconds Low battery Red light flashing Charging battery... -
Page 6: Gps Navigation
4. Dual Audio Merge Listen and Separate Talk Function 1) Can listen the merged audio from both connected devices or talk group at the same time. 2) Can listen and speak to walkie-talkie radio even during active call 3) Can listen to GPS message even during active call 4) High security and privacy level. -
Page 7: Operation
MABT-”PTT” and try to pair it by entering, if required on mobile phone, the pin code <0000>. Once paired successful, LED indicator will change from Blue/Red alternately to Blue flashing, indicating that the MABT-2PTT headset has been connected with your mobile phone. - Page 8 From the found devices in your mobile phone, select the device named: “Telecom/ MABT-2PTT.” and try to pair it by entering, if required on mobile phone, the pin code <0000>. Once paired successful, LED indicator will change from Blue/Red altemately to Blue flashing and a “di”...
- Page 9 Volume - button then the Mobile phone will dial the last out call number. If the MABT-2PTT headset is in music mode, fist pause such mode by short pressing the Power ON/OFF button in cell phone connected only state, or pause/stop the music in user mobile phone first in the both cell phone and BT radio dongle connected state.
- Page 10 If the MABT-2PTT headset is in music mode, first pause such mode by short pres- sing the Power ON/OFF button in cell phone connected only state, or pause/stop the music in user mobile phone first in the both cell phone and BT radio dongle connected state.
-
Page 11: Preliminary Operations
• Firmware upgrade Such operations can be performed by means of the proper wizard software. Such a software must be installed on the PC before to connect it to the MABT-2PTT headset. First Power OFF the MABT-2PTT, then connect the MABT-2PTT headset to a PC with a proper USB cable. - Page 12 Can not power on It might low battery, please try again after charging for 3 hours, then reset the PTT headset and try again. No sound Please check if the speaker mic have connected to the device or the volume too low.
- Page 13 Whether or not Support using while charging Use while charging is not recommended. Compatibility with other chargers Cigarette charger of the car or motorcycle, emergency battery pack or other type charger might be used for charging as long as their actual output voltage is between 5V to 6V and have the same plug style and power source positive and negative polarities with our initial charger.
-
Page 14: Warranty Certificate
WARRANTY CERTIFICATE FALCON RADIO & A.S., S.L. CIF: B-60565314 C/ Vallespir, nº 13. Polígono Industrial Fontsanta. 08970 Sant Joan Despí. Barcelona (Spain). Phone: +34 93 457 97 10. Fax: +34 93 457 88 69 www.falconradio.es Brand device: Model: Serial number: Buyer’s name: Address: Seal and dealer’s name:... -
Page 15: Eu Declaration Of Conformity
Product description: Equipment: BT bluetooth wireless headset with 2 PTT Brand: TELECOM Model: MABT-2PTT Manufacturer: FALCON RADIO & ACCESSORIES SUPPLY, S.L. Made in: China The product complies with the provisions of the European Directives: - Directive 2012/19/EU of the European Parliament and of the council of 4 July 2012 on waste electrical and electronic equipment (WEEE).
