Telecom AV-1KM Series Manual

AV-1KM
FLEXIBLE MICROPHONE FOR MOBILE RADIOS
Fasten the doose neck boom (3) under the car sun viso by using the car's existing screw or bolt.
We recommend the position to the right of the driver. Attach the wind-shield (1) to reduce the
noise.
The PTT box (8) is attached to the gear change with a rubber band (6). Observe the way the band
is formed into two fastenings.
Connect the microphone cord (4) to jack (5). Then, connect the approppiate microphone for using
your radio from the PTT box to your transceiver (It can happen that you have to tilt lightly the jack
forwards before pulling).
Wind-shield (foam)
Flexible microphone
Mounting hardware
Mic. cord with mic. plug
Mic. input cord w/jack
Rubber band for mounting of
switch box to gear-shift
Rubber plate

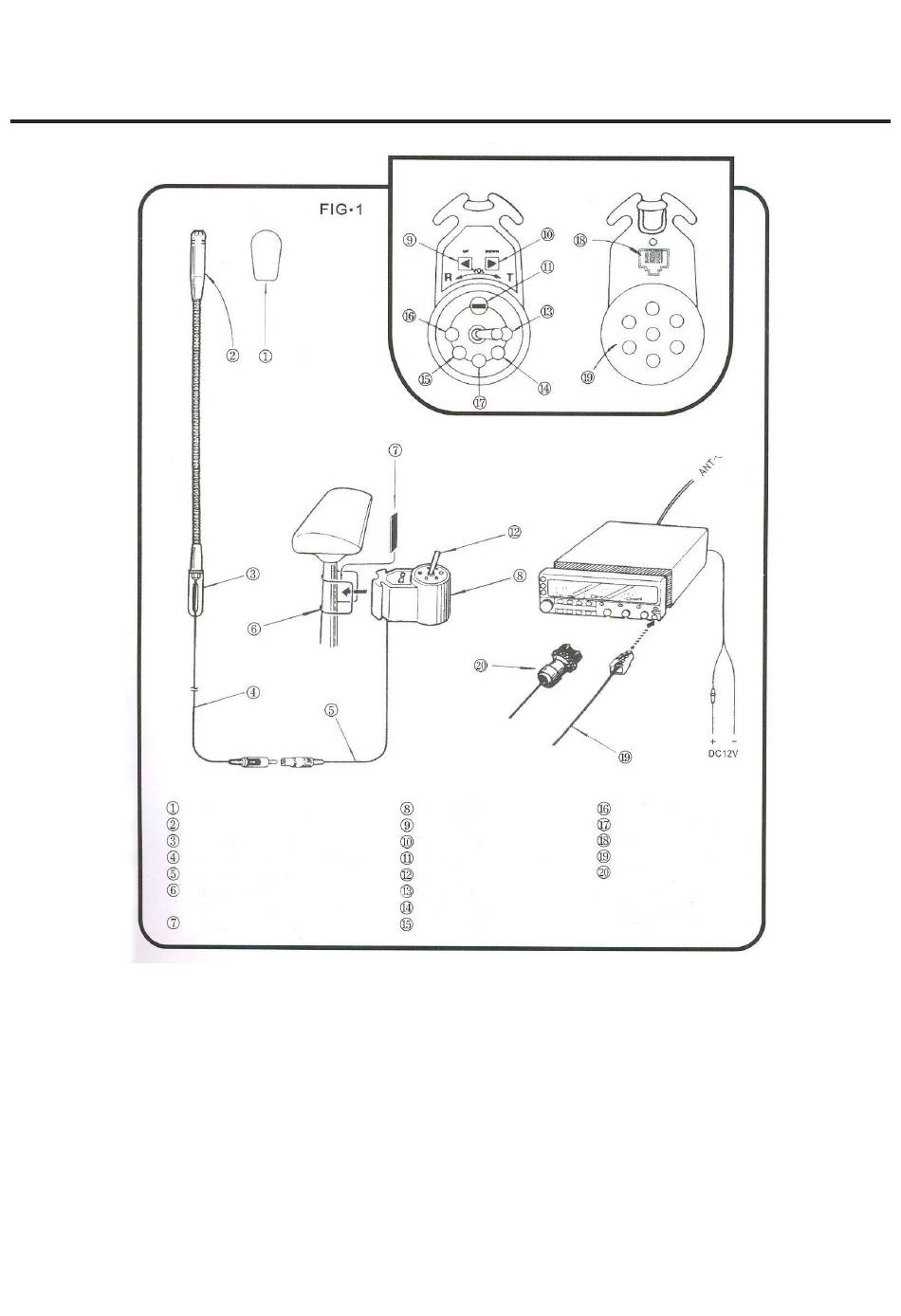

HOW TO MOUNT AND INSTALL THE AV-1KM
TOP
Switch box
UP Switch
DOWN Switch
Output adjust volume
TX/RX selector switch
"CALL" Key
*Depending on version
"VFO" Key
*Depensing on version
"MR"Key
*Depending on version
BOTTOM
"PF"Key
*Depending on version
TX Indicator LED
Mic. output jack
8 Pin Plug (73A, K, Y, I)
8 Pin connect (24A, K, Y, I)
