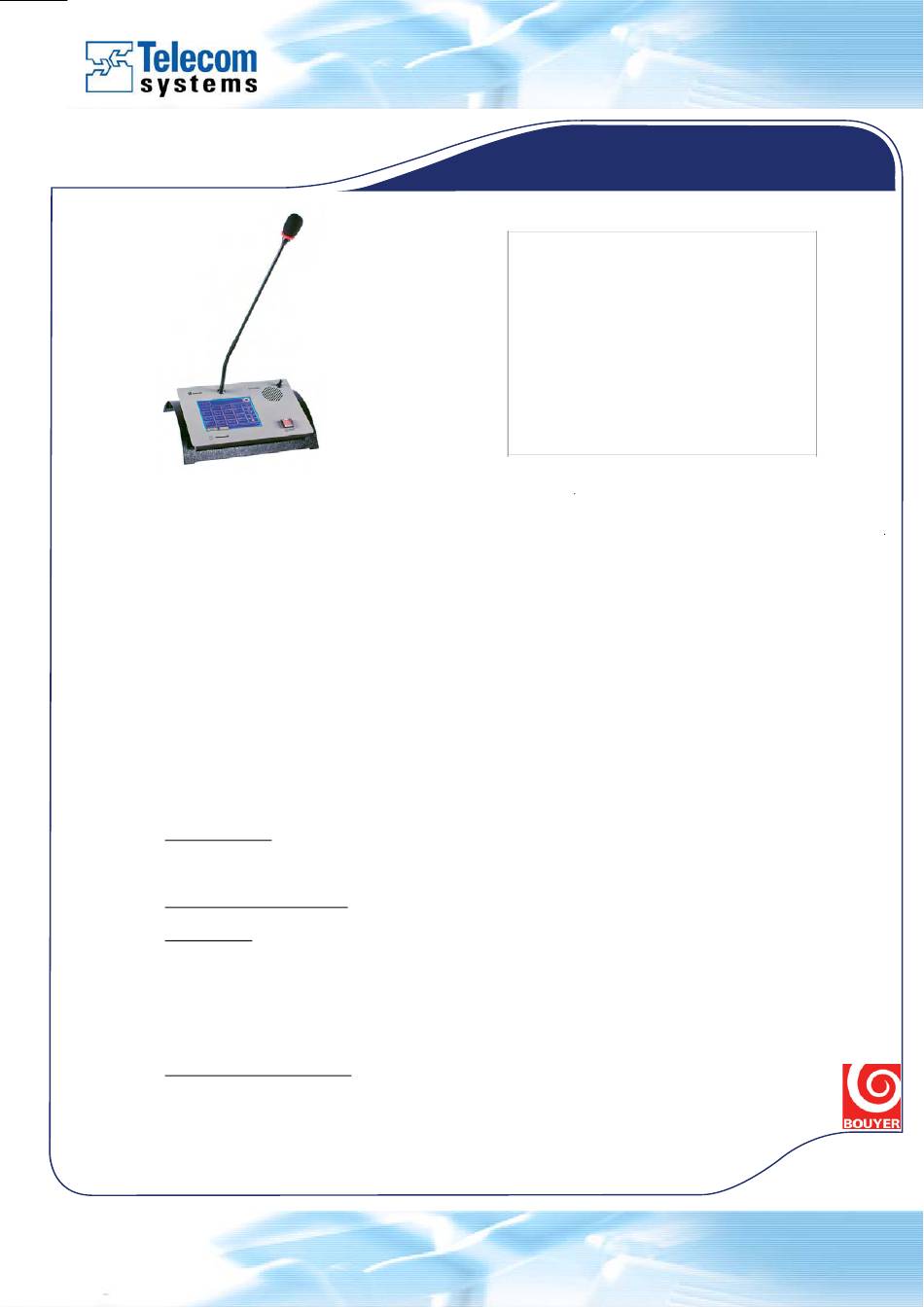

GXT 4000
1
DESCRIPTION
The GXT 4000 microphone console is a touch screen console. It has from 16 up to 64 programmable
soft keys for making PA broadcasts into selected areas or zones. It is designed to operate over a bus
architecture, meaning that several consoles can be used over the same network, while collectively occupying just
one single audio channel. In fact, the consoles are self-regulating, with audio channel priority always being given
to the first console that picks up the channel. The main part of the console may be flush fitted or mounted on its
own swivel base for tabletop use.
The GXT 4000 console comes complete with:
•
an electret microphone,
•
a touch screen for setting and selecting zones,
•
a memory card reader for broadcasting pre-recorded messages,
•
a loudspeaker for monitoring announcements, etc.,
•
a fail soft switch with protective hood,
•
a stylus.
It may be used to:
•
view the degree of occupancy of the network's zones,
•
broadcast an announcement into one or more zones.
2
TECHNICAL SPECIFICATIONS
Audio signal bus:
•
Output: via transformer
•
Nominal level: 0 dBu
•
Microphone preamplifier: compressor fitted
Transmission and commands
•
Serial link: RS485 bus
User interface
•
Touch screen with up to 64 programmable soft keys and 5 function keys
•
Zone occupancy indicator
•
Audio bus occupancy indicator
•
Indicator showing whether the serial link is connected to the host system
•
a protected fail soft pushbutton switch (connector output with connection box)
•
monitoring loudspeaker
•
message memory card reader
Message memory card reader
•
Memory medium: SD card using FAT32, files stored in root directory only (sub-directories are
not supported)
•
Message format: wav, 44100 Hz, 16 bit, mono
•
The console has 2 memory card slots, one inside the console, the second accessible from the
outside. The external reader has priority
Specialisten in communicatie
Touch screen
microphone consoles
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
G
X
T
4
0
0
0
–
www.telecomsystems.nl
Tel. +31 (0)10-2660111
info@telecomsystems.nl
1
6
1
6
3
2
3
2
4
8
4
8
6
4
6
4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Telecom GXT 4000
Summary of Contents for Telecom GXT 4000
- Page 1 – DESCRIPTION The GXT 4000 microphone console is a touch screen console. It has from 16 up to 64 programmable soft keys for making PA broadcasts into selected areas or zones. It is designed to operate over a bus architecture, meaning that several consoles can be used over the same network, while collectively occupying just one single audio channel.
- Page 2 GXT 4000 Touch screen microphone consoles Power • Voltage: 24 V d.c. (min. 12 volts, max. 28 volts) • Current: 110 mA (190 mA at 12 V, 100 mA at 28 V) Housing • Material: metal • Colour: grey console on black base •...
- Page 3 The number of consoles that can be connected to the same bus depends on the type of installation used. Power A single power supply can be used to power several GXT 4000 consoles. The table below gives an indication of power delivery limitations according to the number of consoles and distances between them.
- Page 4 Use with a CS 2500 Central Monitoring Unit as a public safety announcement system When connected to a CS 2500 central monitoring unit, the GXT 4000 can be used to broadcast safety announcements within selected zones; its in-built touch screen does away with any need for separate switch matrices, thus keeping costs and cabling to a minimum.
- Page 5 The maximum number of GXT 4000 units that are capable of being connected to a network may be calculated as follows: No. of GXT 4000 ≤ 50 - No. of CS 2500 – No. of CS 2003 – No. of GX 2500 – No. of GX 3016 Use with a CC 3816 The CC 3816 matrix has two special inputs for connecting two GXT 4000 or GX 3016 console buses together.
- Page 6 6.1.2 The zone selection screens The zone selection screens are then displayed. The GXT 4000 can be set to display its screens in either of two ways. Display mode 1: (Standby) This mode displays: - the date and time,...
- Page 7 GXT 4000 Touch screen microphone consoles Display mode 2 : (ON) This mode displays: - the host system connection (in this case the RS485 connection has been established as shown by the icon - the date and time, - which zones are occupied (in this case the “North Entrance” zone which has been set to soft key n°...
- Page 8 GXT 4000 Touch screen microphone consoles The CHIME Tab The second tab is used to set the chime volume. Use the cursor to adjust the volume from 0 (silent) and 10 (maximum). This slider also sets the volume at which audio messages stored on the memory card are broadcast.
- Page 9 GXT 4000 Touch screen microphone consoles • Where a key’s function is set to None, pressing the soft key will result in the message being broadcast in all the previously switched zones (the message will only play if 1 or more zones has been switched), •...
- Page 10 GXT 4000 Touch screen microphone consoles Using the selection dial: Values may be changed by “flicking” the relevant box to scroll through the various possible options. The dial will automatically disappear, saving the selection, if the touch screen is then left alone.
-
Page 11: The Password Tab
GXT 4000 Touch screen microphone consoles 6.1.7 The CONSOLE Menu Access to the Console programming menu is password-protected; the 4 character password must be entered using the keyboard. The password is left empty by default (input either 4 spaces or leave blank). -
Page 12: The Display Tab
GXT 4000 Touch screen microphone consoles The DISPLAY Tab The fourth tab is used to change the style in which the zone selection screens are displayed. Use this to switch between display modes 1 and 2, as well as select and arrange the function keys in each mode. - Page 13 GXT 4000 Touch screen microphone consoles Pressing on the Audible Key box displays a selection dial showing the different options. The ID LOCK Tab The seventh tab is used to unlock the console’s features. There are 4 possible operating modes: 16, 32, 48 and 64 programmable soft keys.
- Page 14 GXT 4000 Touch screen microphone consoles Pressing on the Files box displays a selection dial showing the different audio files available. Pressing the Play key opens the Broadcast message window so that the message can be listened to locally on the monitoring loudspeaker. Use this screen to view playback progress of the message selected;...
- Page 15 GXT 4000 Touch screen microphone consoles Pressing on the PA Mode box displays a selection dial showing the different options. Using the selection dial: Values may be changed by flicking the relevant box to scroll through the various possible options. The dial will automatically disappear, saving the selection, if the touch screen is then left alone.
- Page 16 GXT 4000 Touch screen microphone consoles Pressing the Play key opens the Broadcast message window so that the message can be listened to locally on the monitoring loudspeaker. Use this screen to view playback progress of the message selected; press Stop stop playback.
-
Page 17: The System Tab
GXT 4000 Touch screen microphone consoles The SYSTEM Tab The second tab is used to select the type of system the console is to be used with. There are two possible platforms: the CC/DN 3816 matrix and the CS 2500 safety sound system. - Page 18 GXT 4000 Touch screen microphone consoles Normal operation Keys 1 to 64 (according to the actual configuration) and the General Announcement key are keys that can be programmed for: • selecting zones (depending on how the CC 3816, DN 3816 or CS 2500 is programmed), •...
