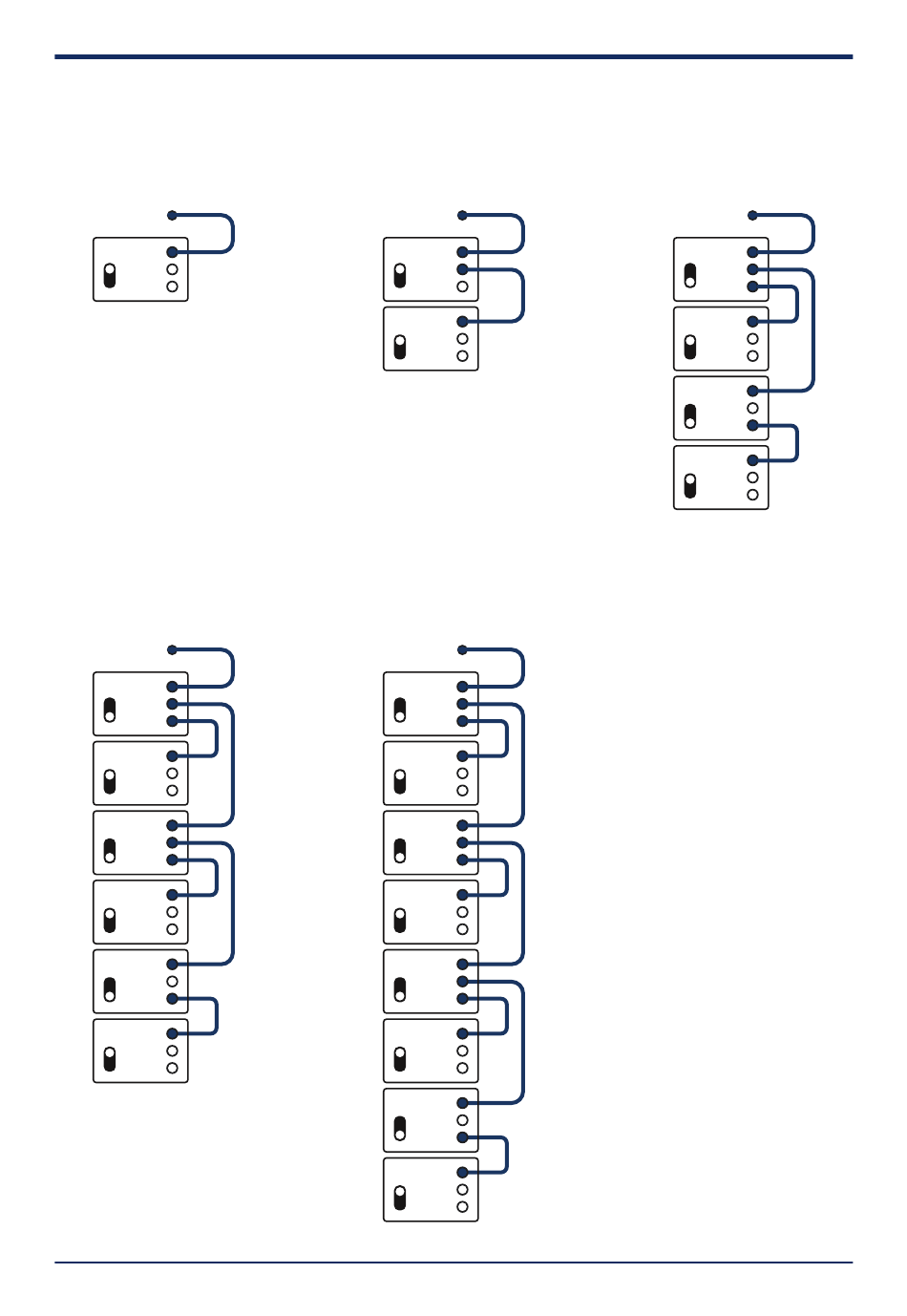

SPEAKER CONNECTIONS
ONE SPEAKER ARRAY
(PER SIDE)
FROM SUB
INPUT
OFF
PARALLEL
SERIES
SIX SPEAKER ARRAY
(PER SIDE)
FROM SUB
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
TWO SPEAKER ARRAY
(PER SIDE)
FROM SUB
INPUT
OFF
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
EIGHT SPEAKER ARRAY
(PER SIDE)
FROM SUB
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
13
FOUR SPEAKER ARRAY
(PER SIDE)
FROM SUB
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
INPUT
ON
PARALLEL
SERIES
INPUT
OFF
PARALLEL
SERIES
