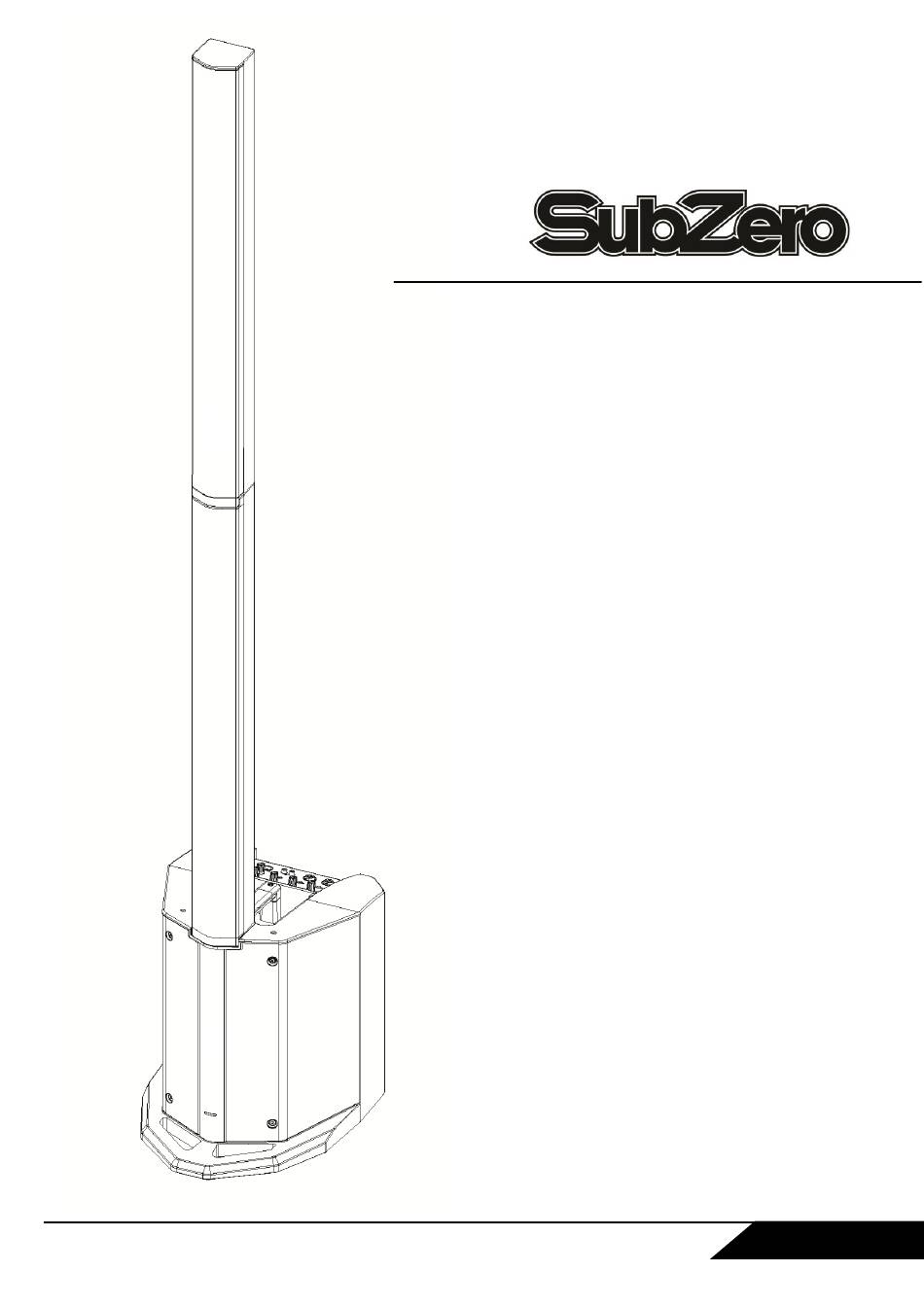

- Page 1 SZPA-L68 USER MANUAL...
-
Page 2: Important Safety Instructions
Explanation of Graphical Symbols The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated CAUTION VORSICHT ‘dangerous voltage’ within the product’s enclosure that may be of BEFORE OPENING PULL VOR DEM OFFNEN sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 WARNING Always follow the basic precautions listed below to avoid the possibility of physical injury to you or others, or damage to the device or other property. These precautions include, but are not limited to, the following: Power supply/Power cord Connections •Remove the electric plug from the outlet when the devices is not to be •Before connecting the device to other devices, turn off the power...
- Page 4 The Subzero SZPA-L68 Compact system consists of: • Compact Power Stand • Compact Extensions The Subzero SZPA-L68 Compact system comes with a slipcover for the Power Stand and a padded carry bag for the Compact Extensions. Power stand carton Extensions carton...
- Page 5 System configurations You can set up the versatile Subzero SZPA-L68 Compact system in two unique positions. The examples below will help you quickly identify the position that can work best for you. Collapsed position Extended position Smaller audiences Larger audiences •...
- Page 6 (shown above) at ear-level or at the front edge of a stage (not shown). This will allow sound to project clearly and evenly throughout the audience. Setting up in the extended position In larger rooms, or with larger audiences where the sound could be blocked by obstacles, it is best to set up the Subzero SZPA-L68 Portable Line Array System in the extended position.
-
Page 7: Specifications
Specifications Subzero SZPA-L68 Amplifier Inputs XLR/TRS combo jack stereo RCA &1/8"AUX input Outputs XLR balanced line output Power output RMS 100w(sub)+100w(sat) Volume volume control each channel,2 band EQ 100-240V ~50/60 Hz switchable Power input class D amplifier Features and switching power design... -
Page 8: Controls And Functions
CONTROLS AND FUNCTIONS: 1. Combo input: balance input, accepts “XLR\ 1/4"TRS” sockets 2. LINE/MIC selector 3. Input level control for CH1 4. Combo input: balance input, accepts “XLR\ 1/4"TRS” sockets 5. LINE/MIC selector 6. Input level control for CH2 7. RCA Iinput: RCA Stereo Input 8. -
Page 9: System Troubleshooting
System Troubleshooting Mixer and Amplifier Will Not Turn On Is the included power cord correctly connected to a power outlet? Amplifier Turns Off Suddenly Is the vent on the top panel of the mixer blocked? Since inadequate ventage will cause the mixer to overheat, turn off the mixer and uncover the vents to allow the mixer &...
