Summary of Contents for Ultratec Fog Curtain System
- Page 1 Fog Curtain System Operators Manual v.092020...
-
Page 2: Table Of Contents
Table of Contents Introduction Warning Important Safety Instructions Safety Precautions Fog Curtain Components Fog Curtain Design Example Design Considerations Maintenance Trouble Shooting Warranty Contact Information Note: Please read entire manual before setting up and operating the Fog Curtain System... -
Page 3: Introduction
1. Ensure that any operation of the machine is supervised by suitably trained and authorized personnel. 2. Allow sufficient air circulation around the machine at all times. 3. Only use fluids manufactured by Ultratec Special Effects. 4. Do not continue to produce fog when visibility is reduced to 20” 50cm or below. -
Page 4: Fog Curtain Components
10" 90* Elbow CLF-9038 10" Fog Curtain Pipe (10' Length w/Holes) The 10" Fog Curtain Pipe is the heart of the fog curtain system. The fog curtain pipe, with its airflow straighteners, creates a spectacular curtain of brilliant white fog when coupled with the Eclipse Low Fog Generator. - Page 5 CLF-9039 10" Rigid Pipe (10' Length) The 10" Rigid Pipe is ideal for long runs or permanent installations as it creates less internal turbulence than the flexible 10” hose. It can be easily cut to length for installation with a reciprocating saw. 10"...
-
Page 6: Fog Curtain Design Example

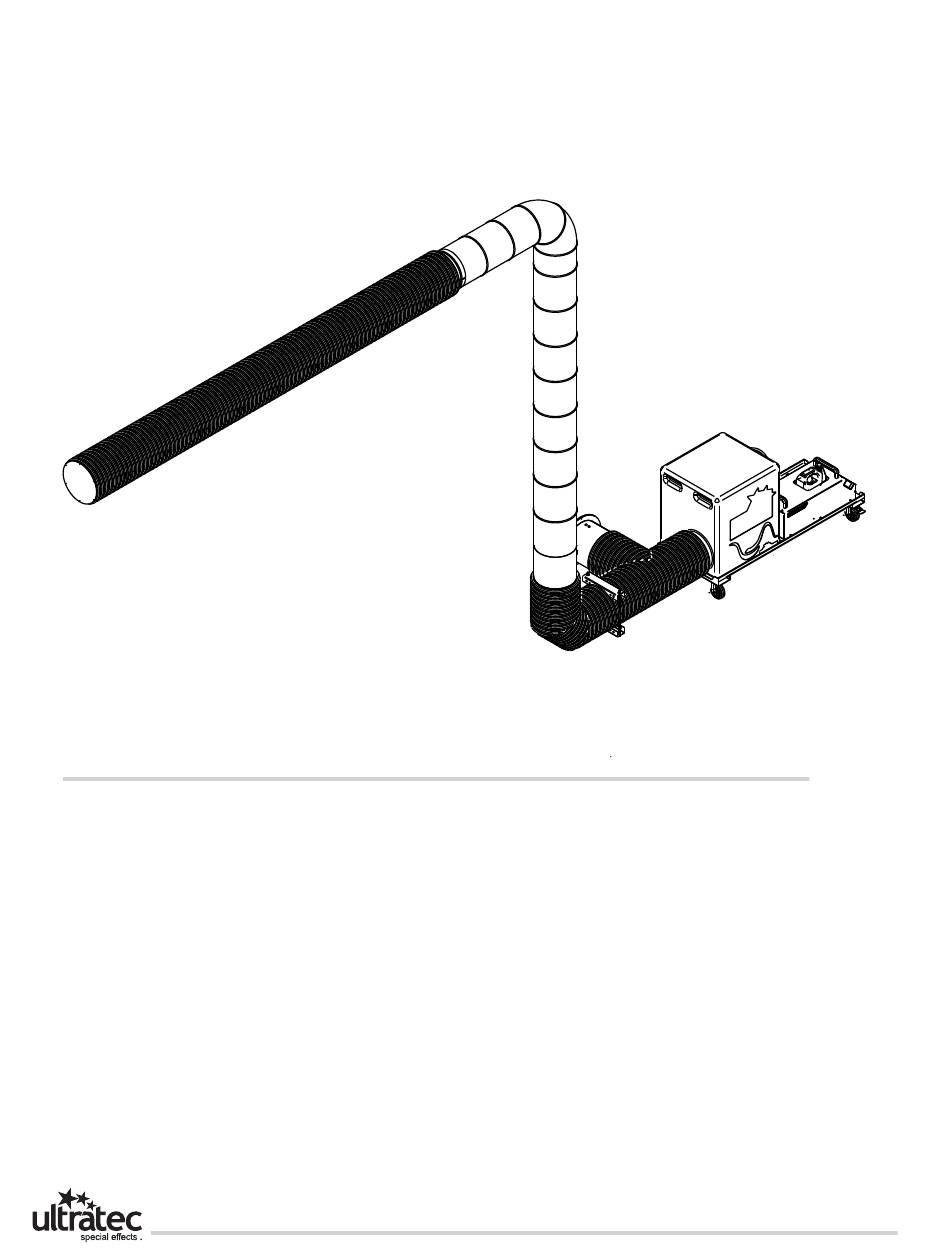

Fog Curtain Design Example Below is a simple example of a fog curtain layout. The key to this design, and any design where the low fog is ducted above the source, is the 10" ARD (10" Automatic Round Damper ) and the 10" Tee. This configuration allows a path for any fog returning down the pipe to exit the 10"... -
Page 7: Maintenance
Hardware products come with a five-year warranty on parts and labor. If the unit in question has a material defect or fault that is caused in manufacturing, Ultratec Special Effects will provide free parts and labor to remedy the equipment. Ultratec Special Effects service department must be advised in a timely manner after defect appearance and the date of warranty request must be within five years of sale/purchase. - Page 8 Contact Us Head Office Europe Office Ultratec Special Effects Ultratec Special Effects GmbH 1960 Blue Heron Drive Dieselstrasse 30-40 London, Ontario N6H 5L9 60314 Direct: 519-659-7972 Frankfurt am Main Toll Free: 800-388-0617 Germany Fax: 519-659-7713 Direct: 49-69-87-000-1850 Fax: 49-69-87-000-1899 USA Shipping Address...
