Operation Manual
Bubble Master
Bubble Master JR.
Bubble Master DMX
www.ultratecfx.com
v.072020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bubble Master and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ultratec Bubble Master

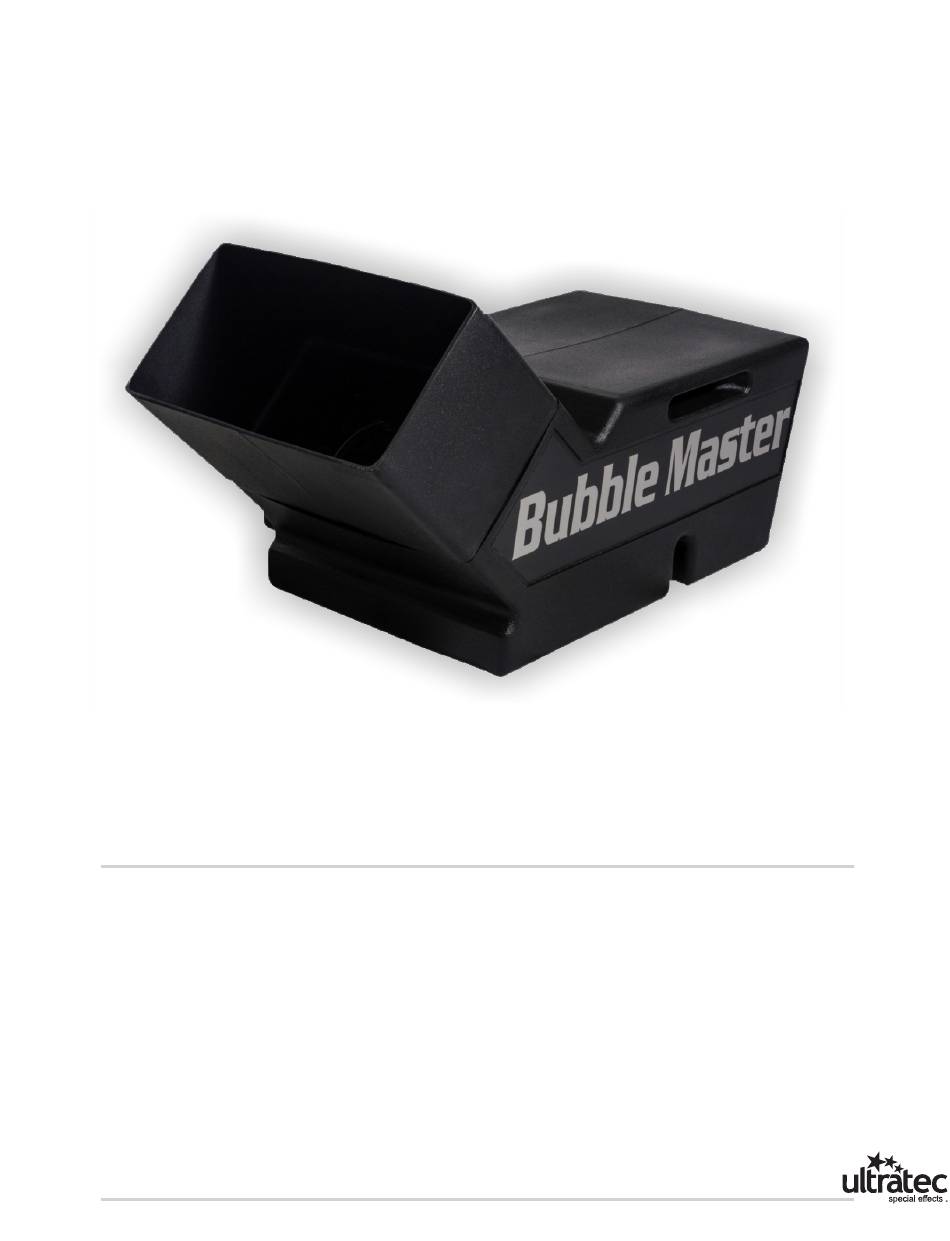

  • Page 1 Operation Manual Bubble Master Bubble Master JR. Bubble Master DMX www.ultratecfx.com v.072020...
  • Page 2: Table Of Contents

    Table of Contents Warning Safety Precautions Technical Specifications Technical Drawings Set Up Procedure Bubble Master Operation Bubble Master DMX Operation Shut Down Procedure FDS Option Troubleshooting Maintenance Recommended Fluid Warranty Contact Information Note: Please read entire manual before operating the Bubble Master www.ultratecfx.com...
  • Page 3: Warning

    3. Allow sufficient air circulation around the machine at all times. 4. Protect the machine from direct weather effects and wet locations. 5. Only use fluids manufactured by Ultratec Special Effects. 6. Avoid directing bubble output continuously at people, structures or objects within close proximity of the discharge nozzle.
  • Page 4: Technical Specifications

    Power Rating: 120 Volt A.C. 50/60 Hz. 1 Amps. 240 Volt A.C. 50/60 Hz. 0.5 Amps. Fluid: Water Base Bubble Fluid (Use only Ultratec Fluid) Approvals: Field Certification Q.P.S. This product has been certified to CSA/UL Standards by QPS Canada Inc Product descriptions with (CE) included are CE Approved.
  • Page 5: Set Up Procedure

    Set Up Procedure If using for the first time: Unpack the Bubble Master and inspect all components. Although the packaging was designed for the rigors of today’s parcel delivery services, damage may have occurred during shipping. 1. Prior to operation, the extension sleeve may be placed into the bubble outlet.
  • Page 6: Bubble Master Dmx Operation

    Bubble Master DMX Operation (This includes 110V / 220V Regular and Junior DMX Bubble Machines) Remote Operation The Bubble Master DMX use standard 5 pin fog machine remote CXP-41395PIN. Plug the 5 pin remote cable into the 5 pin remote receptacle marked “Remote”.
  • Page 7 DMX Operation Unit uses 2 channels for DMX control. DMX OVERRIDES HAND HELD REMOTE Base DMX Address = Allows speed adjustment of fans. 0% - 8% = Fans OFF 9% - 100% = Fans ON (low – high) Base DMX Address + 1 = Bubble wheel motor control OFF / ON only (No speed control) TECH TIP: leaving this DMX+1 value at 100% will enable the bubble wheel motor to turn OFF / ON as soon as fans are turned OFF / ON] 0% - 49% = Bubble wheel motor OFF...
  • Page 8: Shut Down Procedure

    Valid DMX Shut Down Procedure 1. Disconnect the Bubble Master from the power source. 2. Remove the bubble extension sleeve if used. 3. Using a funnel, empty the contents of the fluid reservoir back into the 1 gallon fluid container. This can be done by tipping the unit, and pouring the fluid out of the bubble outlet.
  • Page 9: Fds Option

    The Bubble Master W/ FDS has a mechanical float installed that opens when fluid is low and closes once the reservoir has been filled. The Bubble Master W/ FDS is attached by a fluid line to a 5 gallon Bubble Master FDS Pail to supply the Bubble Master W/ FDS with fluid.
  • Page 10: Maintenance

    4. Check that bubble fluid is not contaminated or expired. Replace with new fluid if not sure. Unit with FDS reservoir not filling up: 1. Check that hose from bubble master FDS pail is connected to pail and to bubble machine. 2. Check that float assembly inside bubble machine is moving freely.
  • Page 11: Warranty

    Hardware products come with a five-year warranty on parts and labor. If the unit in question has a material defect or fault that is caused in manufacturing, Ultratec Special Effects will provide free parts and labor to remedy the equipment. Ultratec Special Effects service department must be advised in a timely manner after defect appearance and the date of warranty request must be within five years of sale/purchase.
  • Page 12: Contact Information

    Contact Us Head Office Europe Office Ultratec Special Effects Ultratec Special Effects GmbH 1960 Blue Heron Drive Dieselstrasse 30-40 London, Ontario N6H 5L9 60314 Direct: 519-659-7972 Frankfurt am Main Toll Free: 800-388-0617 Germany Direct: 49-69-87-000-1850 Fax: 519-659-7713 Fax: 49-69-87-000-1899 USA Shipping Address...
