Summary of Contents for Ultratec Round Floor Pocket

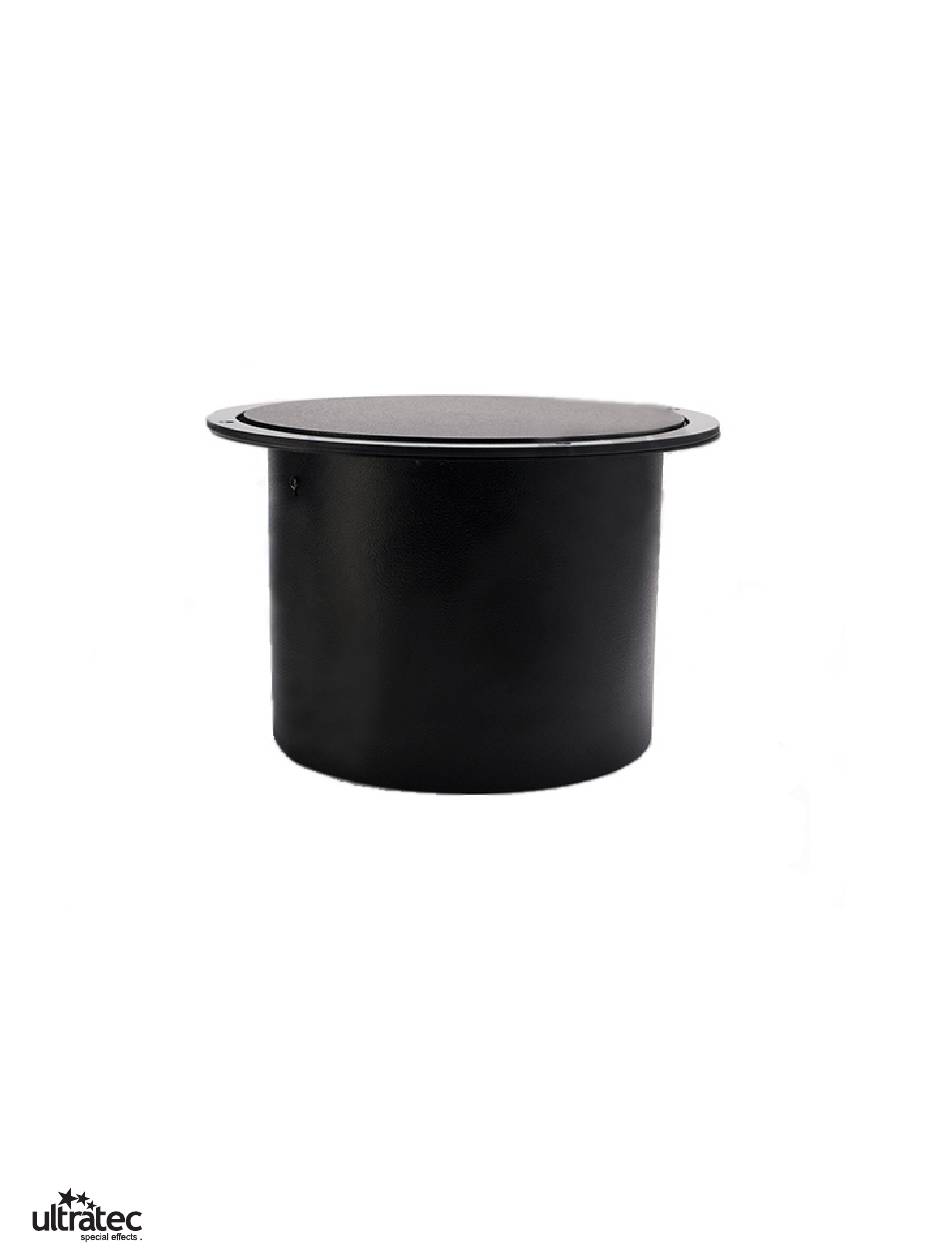

- Page 1 Round Floor Pocket Operators Manual v.062020...
-
Page 2: Table Of Contents
Contact Information.............8 Introduction The Ultratec Special Effects Floor Pocket is your solution to put your low-lying fog effect where you want it. It has been designed to operate in conjunction with the ECLIPSE (Low Fog Generator), and designed to be flush mounted into the stage floor. -
Page 3: Warnings
3.) Allow sufficient air circulation around the machine at all times. 4.) Protect the machine from direct weather effects and wet locations. 5.) Only use fluids manufactured by Ultratec Special Effects. 6.) Do not continue to produce fog when visibility is reduced to 20” 50cm or below. -
Page 4: Technical Specifications
Technical Specifications POWER CONSUMPTION: 110V/ 220V, 50/60 Hz 1A/0.5A POWER CABLE: 18/3 - 60" Long POWER CONNECTOR: Grey Neutrik Power Con AIR CONSUMPTION: Less then 1 CFM AIR PRESSURE REQUIRED: 30 TO 100 PSI AIR HOSE: 1/4" Poly Hose 60” long AIR CONNECTOR: 1/4"... -
Page 5: Installation
Installation Using the supplied metal ring as a template, trace the inside and outside diameters in the desired installation location. 1.) Cut a 2 ½" hole through the stage 5 ¼" from desired center point. 2.) Cut a 10 ½" hole through the stage from center point. (The inner diameter of the template.) 3.) Using a router set at 5/16"... -
Page 6: Operating Procedure
Operation 1) Energize the controllable power source to open / lift the Floor Pocket top plate. 2) De-energize the controllable power source to close / lower the Floor Pocket top plate. NOTE: The rate of speed for opening and closing the floor pocket can be adjusted using the 2 flow valve adjustment screws located on the non -rotating cylinder. -
Page 7: Troubleshooting
Compressed Gas Usage One complete cycle (in & out)of the piston would use 4.2 cubic inches of volume at the recommended pressure of 30-100 psi. The compressed gas does not have to be air, you can use nitrogen or CO2 gas. CO2 is liquid in the tank so you can get a large volume from a small tank and regulator. -
Page 8: Warranty
Hardware products come with a five-year warranty on parts and labor. If the unit in question has a material defect or fault that is caused in manufacturing, Ultratec Special Effects will provide free parts and labor to remedy the equipment. Ultratec Special Effects service department must be advised in a timely manner after defect appearance and the date of warranty request must be within five years of sale/purchase. -
Page 9: Contact Information
Contact Us Head Office Europe Office Ultratec Special Effects Ultratec Special Effects GmbH 1960 Blue Heron Drive Dieselstrasse 30-40 London, Ontario N6H 5L9 60314 Direct: 519-659-7972 Frankfurt am Main Toll Free: 800-388-0617 Germany Fax: 519-659-7713 Direct: 49-69-87-000-1850 Fax: 49-69-87-000-1899 USA Shipping Address...
