installation ManUal
ZX series - commercial solar lighting systems
IMPORTANT: Always install the system assembly on the pole before inserting the batteries.
The assembly system should never be manipulated when the batteries are installed inside.
A) Solar module with integrated control system and wiring. (1 per system)
B) Battery main enclosure (1 per system)
C) Battery, 12V (1 per system)
D) Stainless Steel Hardware, 1/4"-20 (ZX60) or 5/16"-18 (ZX100 & ZX170) for system assembly
E) LED Luminaire (12Vdc compatible only)
F) Luminaire mounting tenon
Note : The ZX system operates at 12Vdc. Other voltage will damage system.

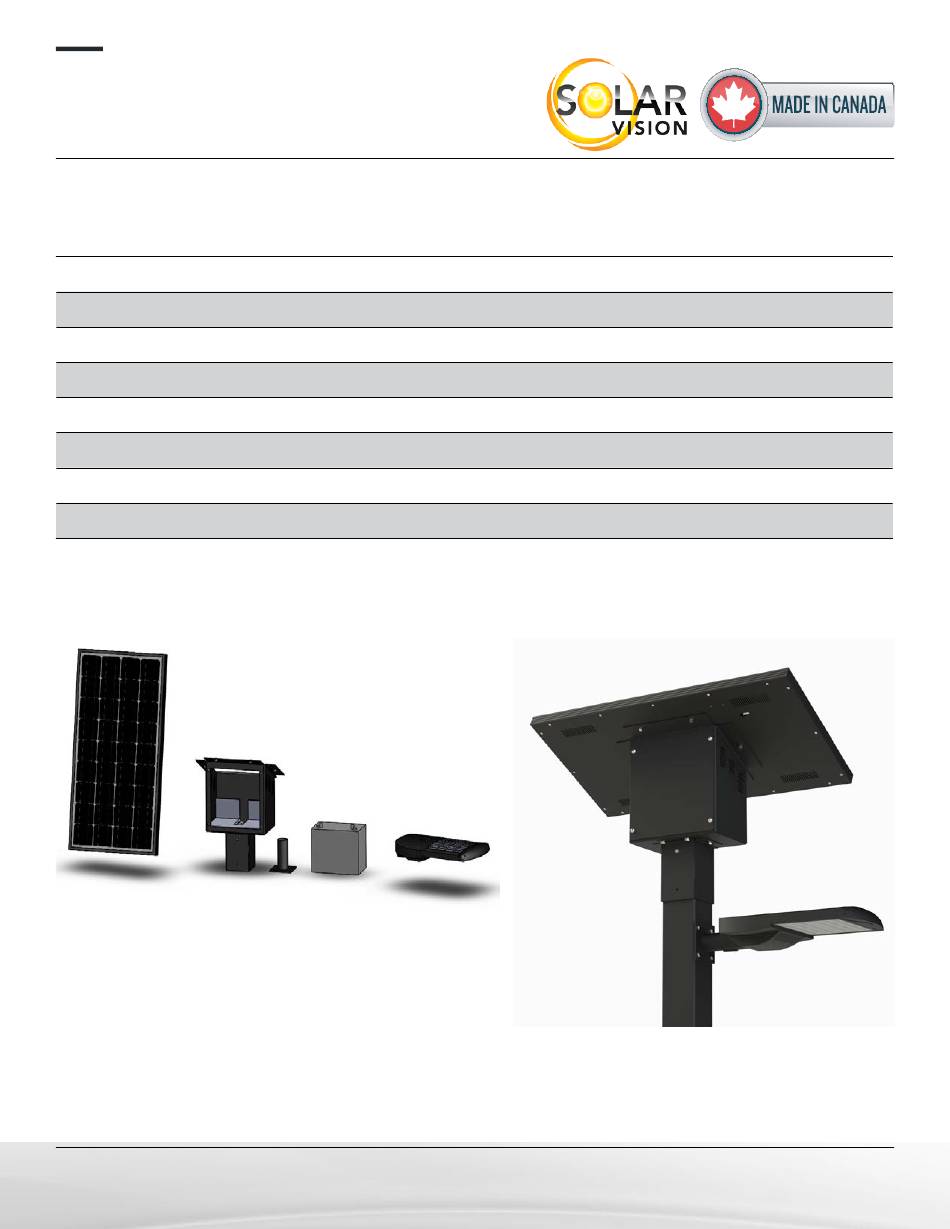

ZX SYSTEM COMPONENTS
Solar Vision inc.
Revision 3.3 | May 24, 2022
LIST OF MATERIAL
www.solar-vision.ca
ZX FINAL ASSEMBLY
info@solar-vision.ca
T. 1-819-729-0450
P.1/12
Advertisement
Related Manuals for SOLAR VISION ZX Series
Summary of Contents for SOLAR VISION ZX Series
- Page 1 ManUal ZX series - commercial solar lighting systems IMPORTANT: Always install the system assembly on the pole before inserting the batteries. The assembly system should never be manipulated when the batteries are installed inside. LIST OF MATERIAL A) Solar module with integrated control system and wiring. (1 per system)
- Page 2 ManUal ZX series - commercial solar lighting systems STEP 1: Using the supplied 1/4”-20 (ZX60) bolts or the 5/16”-18 (ZX100 & ZX170) bolts and hardware (hex bolt, lock washer, flat washer), fasten the battery compartment to the solar module as indicated on the im- age.
- Page 3 ManUal ZX series - commercial solar lighting systems STEP 3: Insert the luminaire power cable located in the battery main enclosure through the 90 deg connector located at the bottom to make it available for the luminaire con- nection. Supplied cable: #16 AWG, pre-installed on the control side, not shown in this drawing.
-
Page 4: Storage And Handling
ManUal ZX series - commercial solar lighting systems STEP 5: Close the quick access door. 1.1 INSTALLATION GUIDELINES SOLAR PANNEL ORIENTATION To avoid a loss of autonomy and a malfunction: AND AUTONOMY • The luminaire must be installed horizontally and must never be tilted;... - Page 5 P.5/12...
- Page 6 P.6/12...
- Page 7 P.7/12...
- Page 8 P.8/12...
-
Page 9: Installation Instructions
LED STREET LIGHTS INSTALLATION INSTRUCTIONS IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precau�ons should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS To avoid the possibility of electrical shock, turn off power supply before installa�on or servicing. Installa�on and servicing should be performed by qualified personnel. - Page 10 IMPORTANT DC(Direct Current) based system. 3 POSITIONS TERMINAL BLOCK STEP 1 / Étape 1: Determine if you have a terminal block with 3 or 4 positions : TERMINAL BLOCK 3 POSITIONS Déterminer si vous avez un terminal block à 3 ou 4 positions : STEP 2 / Étape 2: *Without voltage divider resistors* Make the following Electrical Connec ons :...
- Page 11 P.11/12...
- Page 12 P.12/12...
