installation ManUal

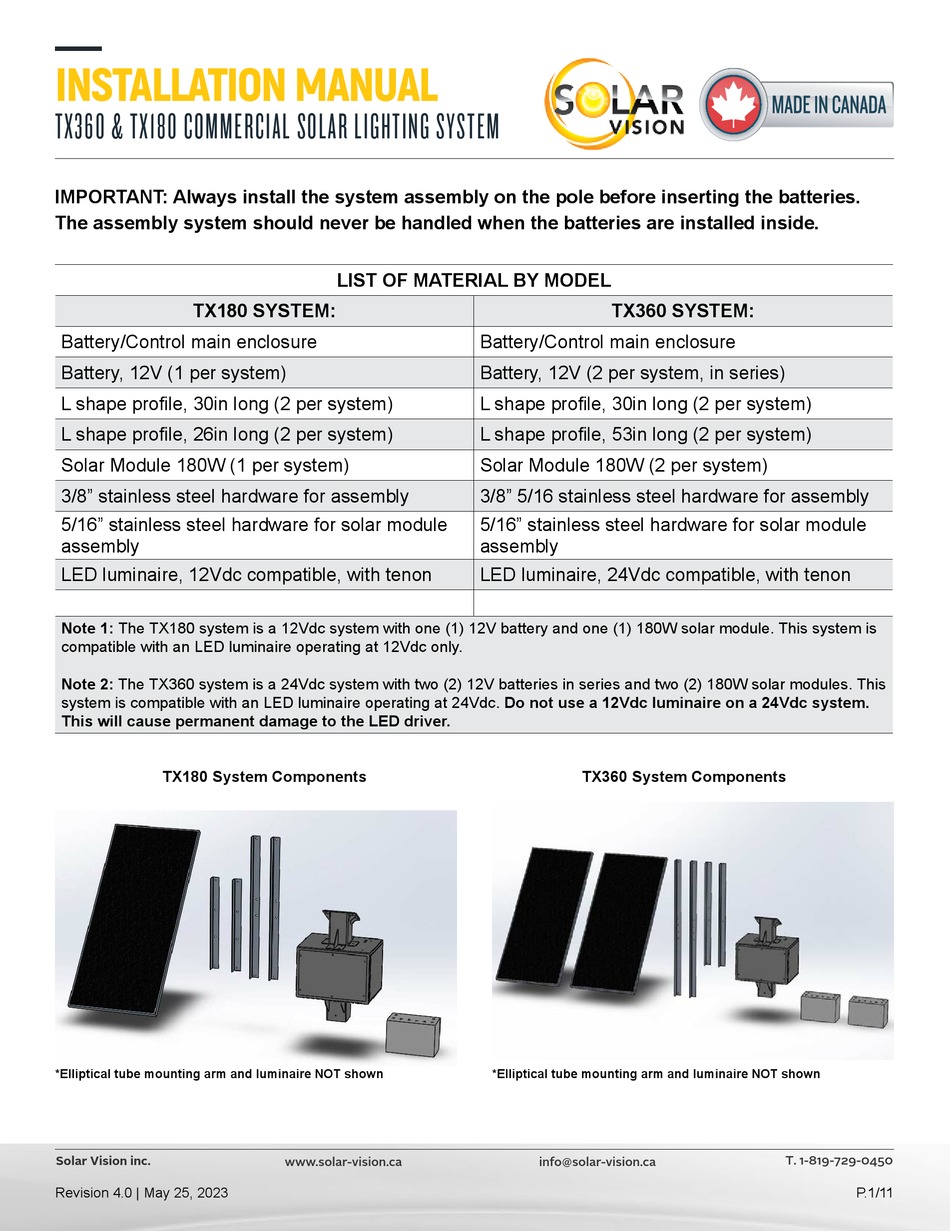

tx360 & tx180 commercial solar lighting system
IMPORTANT: Always install the system assembly on the pole before inserting the batteries.
The assembly system should never be handled when the batteries are installed inside.
TX180 SYSTEM:
Battery/Control main enclosure
Battery, 12V (1 per system)
L shape profile, 30in long (2 per system)
L shape profile, 26in long (2 per system)
Solar Module 180W (1 per system)
3/8" stainless steel hardware for assembly
5/16" stainless steel hardware for solar module
assembly
LED luminaire, 12Vdc compatible, with tenon
Note 1: The TX180 system is a 12Vdc system with one (1) 12V battery and one (1) 180W solar module. This system is
compatible with an LED luminaire operating at 12Vdc only.
Note 2: The TX360 system is a 24Vdc system with two (2) 12V batteries in series and two (2) 180W solar modules. This
system is compatible with an LED luminaire operating at 24Vdc. Do not use a 12Vdc luminaire on a 24Vdc system.
This will cause permanent damage to the LED driver.
TX180 System Components
*Elliptical tube mounting arm and luminaire NOT shown
Solar Vision inc.
Revision 4.0 | May 25, 2023
LIST OF MATERIAL BY MODEL
www.solar-vision.ca
TX360 SYSTEM:
Battery/Control main enclosure
Battery, 12V (2 per system, in series)
L shape profile, 30in long (2 per system)
L shape profile, 53in long (2 per system)
Solar Module 180W (2 per system)
3/8" 5/16 stainless steel hardware for assembly
5/16" stainless steel hardware for solar module
assembly
LED luminaire, 24Vdc compatible, with tenon
TX360 System Components
*Elliptical tube mounting arm and luminaire NOT shown
info@solar-vision.ca
T. 1-819-729-0450
P.1/11
